Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed
Specifications
Brand Name :
Hongli
Model Number :
SQ50C1
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per plywood case , packing size : 76*47*55 cm , packing weight : 74 kg
Product Name :
SQ50C1 Electric Pipe Threading Machine
For Pipes :
1/2"-2" / 12-50 mm
Threads Type :
BSPT , NPT
Rod Threading Capacity :
M10-M33
Motor :
900 W induction type
Spindle Speed :
25 RPM
Voltage & Frequency :
110 V - 60 Hz / 220 V - 50 Hz
Color :
Standard with yellow, red or blue for option as per your quantity need
Description

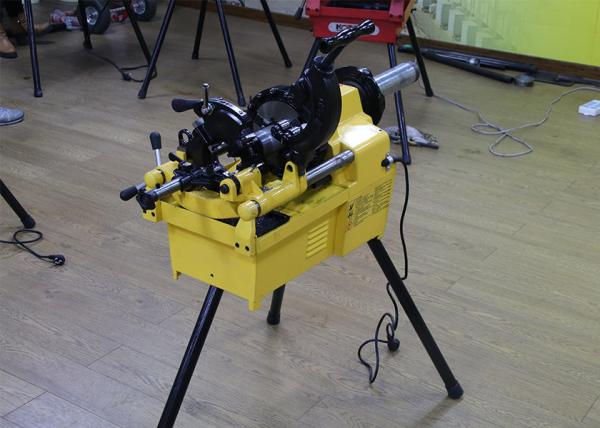

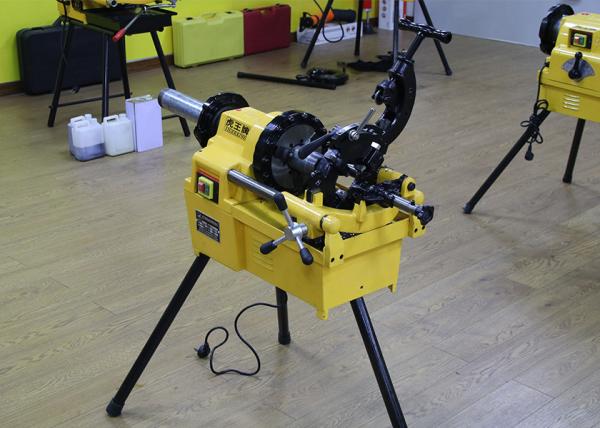

Hongli SQ50C1 Portable Electric Pipe Threading Machine for Steel Pipe 1/2 Inch to 2 Inch

http://www.topele.com/sale-1521473-galvanized-steel-bs4568-conduit-gi-pipe-electrical-conductors.html

Specifications

Motor: 900W induction, 50/60Hz

Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional

Spindle Speed: 25 RPM

Front Chuck: Hammer type with replaceable rocker action jaw inserts.

Rear Centering Device: Cam action.

Oiling System: Through die head, with intergral oil reservoir.

Pump: Self-priming constant flow.

Standard Configuration of SQ50C1 Pipe Threading Machine

Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed

Optional Spare Parts for SQ50C1 Pipe Threading Machine

Portable Electric Pipe Threading Machine Cam Action 25 RPM Spindle Speed

Ordering Information

Catalog No. Model No. Description
SQ50C1 110 V, 60 Hz
SQ50C1 220 V, 50 Hz

Packing

Model No. G.W. N.W. Packing
SQ5C1 74 kg 60 kg 76*47*55 cm

HS:8459700000
