Rocks Ceramics 780 RPM Diamond Core Drilling Machine For 180 Mm Hole Drilling
Rocks Ceramics 780 RPM Diamond Core Drilling Machine For 180 Mm Hole Drilling
Specifications
Brand Name :
Hongli
Model Number :
H-180
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000 sets per month
Delivery Time :
7- 30 days as per your order
Packaging Details :
one set per plywood case
Drilling range :
15 to 180 mm in diameter
Rated voltage :
110 V / 220 V / 240 V
Rated frequency :
50 - 60 Hz
No laod speed :
780 RPM
Rated input power :
3980 W
Description

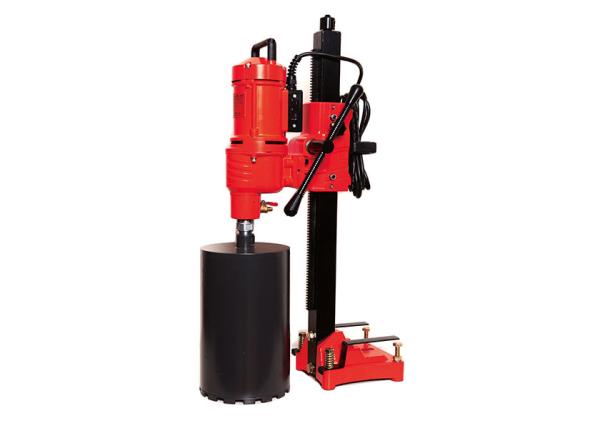

Hongli H-180 Diamond Core Drilling Machine for 180 mm Hole Drilling

Featuring

1. Diamond core drill is a new tool used for drilling holes on reinforced concrete, rocks, ceramics, glass and fire-proof materials

2. It features in high-efficiency, smooth hole-wall and accurate drilling.

3. This machine is widely used in building construction, airport runway construction,water, electricity, heat, and gas installation engineering as well as railways and bridges construction.

4. Wide transport wheels: good rolling quality, as well as being comfortable and light

5. Bore depth measuring scale and depth stop:perfect for blind hole drilling

6. Extremely slim motor design: for working close to the wall

Specifications

Drilling range: Φ15-180 mm

Rated voltage:110 V/220 V/240 V

Rated frequency: 50-60 HZ

Rated input power:3980 W

No-load speed:780 RPM

Ordering Information
Cat. No. Model No. Description
3013710 H-180 complete set,110 V/60 HZ
3013720 H-180 complete set,220 V/50 HZ
3013721 H-180 complete set,240 V/50 HZ
Packing
Model No. G.W(kg) N.W(kg) L(cm) W(cm) H(cm)
H180 24 22.5 79 25 28
HS Code:8430691900
Rocks Ceramics 780 RPM Diamond Core Drilling Machine For 180 Mm Hole Drilling
