16 Mm To 330 Mm Portable Pipe Beveling Machine Electric T Type 58 RPM
16 Mm To 330 Mm Portable Pipe Beveling Machine Electric T Type 58 RPM
Specifications
Brand Name :
Hongli
Model Number :
SDC Series
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per wooden case
Warranty :
1 year
Driven type :
Electric
Working Range :
Min: 16-28 mm , Max: 150-330 mm (ID)
Wall Thickness :
Max to 20 mm
Rotating Speed :
Max 58 RPM
Rated Power :
Max 1.4 KW
Description

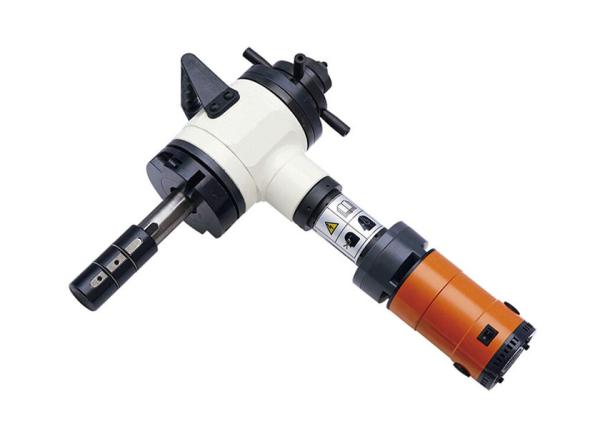

Hongli T-Type Electric Pipe Beveling Machine for Pipe of 16 mm to 330 mm in Diameter

Specifications

Electric: Driven by low-energy consumption electric motor 110 V or 220 V optional, 50-60 Hz

Product Description

1. Beveling and grooving with high speed, light weight , good rigidity.

2. Used for the welding preparation.

3. Can process facing, flange, convex surface and seal groove.

4. Cold cutting process will not influence the quality of the material of the pipe.

5. High quality beveling tool, can process different grades of carbon steels, alloy steel, stainless steel and so on.

6. Can process the U, V and J shape of pipe beveling according to the requirements.

Beveling Types

16 Mm To 330 Mm Portable Pipe Beveling Machine Electric T Type 58 RPM

Other bevel angles or alloy steel, cast steel, please declare before order.

16 Mm To 330 Mm Portable Pipe Beveling Machine Electric T Type 58 RPM

28T 80T 150T

Technical Parameter

16 Mm To 330 Mm Portable Pipe Beveling Machine Electric T Type 58 RPM
