Horizontal Electric High Pressure Washing Machine with Two Wheels 12 mm Stroke
Horizontal Electric High Pressure Washing Machine with Two Wheels 12 mm Stroke
Specifications
Brand Name :
Hongli
Model Number :
HL3600MA
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 sets
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per strong carton , packing size : 85*48*48 cm , packing weight : 85 kg
Max Pressure :
3600 psi / 172 bar
Flow Rate :
3.7 GPM / 14 LPM
Power :
7.5 KW
Pump Type :
Triplex Plunger Pump
Plunger Diameter :
18 mm
Stroke :
12 mm
High Pressure Hose Configuration :
8 mm*10 m
Description

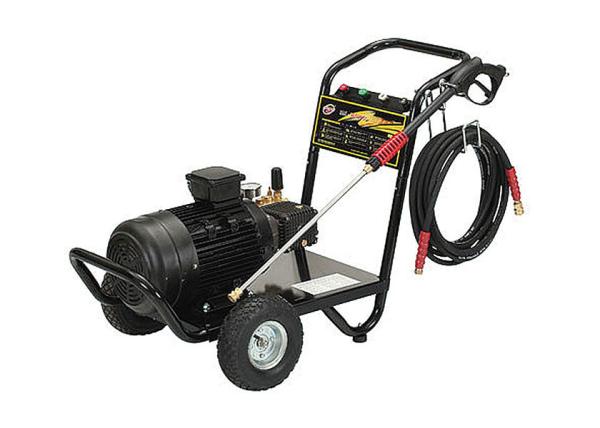

Hongli HL3600MA Horizontal Electric High Pressure Washing Machine with Two Wheels

Features

1. Heavy-duty triplex pump with pressure loader valve, 3/8 out

2. 8 mm (5/16 in)×10 m (30 ft) steel braid high pressure hose, 3/8 in

3. Performance-approved aluminium cage motor, fan cooling, IP 55, 7.5 KW, voltage and frequency for options

4. Professional trigger gun with quick disconnect nozzles, spray patterns 0°, 25°, 40°and 60°.

5. pressure gauge for option

Ordering Information

Catalog No Model No. Description
HL-2800MA 2800 psi electric high pressure washing machine with 2 wheels, AC 380 V
HL-3100MA 3100 psi electric high pressure washing machine with 2 wheels, AC 380 V
HL-3600MA 3600 psi electric high pressure washing machine with 2 wheels, AC 380 V
HL-4000MA 4000 psi electric high pressure washing machine with 2 wheels, AC 380 V

Specifications

Model No. Max Pressure:psi/bar Flow Rate:Gpm /Lpm R. P. M PlungerDiameter Stroke Power High Pressure Hose N. W /G.W:KG Carton Dimension:CM
HL-2800MA 2800 /193 2.5 /10 1440 15mm 12mm 4KW 8mm×10m 51/55 69×40×50
HL-3100MA 3100 /213 3.0 /11 1440 18mm 10mm 5.5KW 8mm×10m 75/80 85×46×48
HL-3600MA 3600 /248 3.7 /14 1440 18mm 12mm 7.5KW 8mm×10m 80/85 85×46×48
HL-4000MA 4000 /275 5.8 /22 1440 22mm 13mm 11KW 8mm×10m 100/105 85×46×54

Standard Equipment

the machine body

one pc of Gun-01

one set of 07 high pressure hose

one set of holder for gun and hose

one pc of water inlet hose

one pc of strainer

four pcs of nozzles

one bag of additional O-rings and seal rings

two user's manual for the machine & the engine

Packing

Strong Carton

HS code: 8424300000
