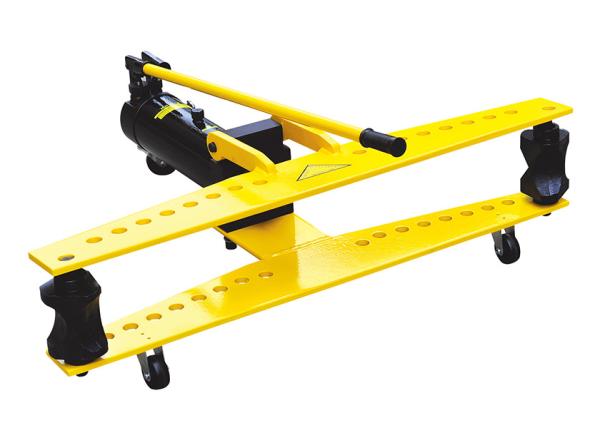

23 T Pressure Hydraulic Pipe Bender For Steel Pipe Up To 4 Hongli HHW-4
23 T Pressure Hydraulic Pipe Bender For Steel Pipe Up To 4 Hongli HHW-4
Specifications
Brand Name :
Hongli
Model Number :
HHW-4
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per plywood case , packing size : 118*46*23 cm , packing weight : 149 kg
Product Name :
4" Manual Hydraulic Pipe Bending Machine
Drive Way :
Manual
Feed Way :
Hydraulic
Work Capacity :
1/2"-4" steel pipe
Max Pressure :
23 T
Max Stroke :
370 mm
Bending Dies :
1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/2" , 3" , 4"
Pipe Wall Thickness :
2.75-6 mm
Description

Hongli HHW-4 Manual Hydraulic Pipe Bending Machine for Steel Pipe up to 4"

Featuring

1. Bending range up to 4” , portable design for construction .

2. Cold bending pipes only in one turn .

3. Up to 90 degree, hydraulic equipment makes more precise bending.

4. Hydraulic pipe bender provides easier bending than manual mechanical bender.

5. Fast set up and disassembly ,convenient removing with bottom wheels.

6. Friendly use for European Environmental Standard with CE.

Specifications

Model: HHW-4

Pipe wall thickness :2.75-6 mm

Bending dies: 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4"

Max stroke :370 mm

Accessories

HHW-2 1/2",3/4",1",1 1/4",1 1/2",2" bending dies
HHW-3 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3" bending dies
HHW-4 1/2",3/4",1",1 1/4",1 1/2",2",2 1/2",3",4" bending dies

Ordering Information

Catalog No. Description
2521100 HHW-2 complete set with all dies
2521200 HHW-3 complete set with all dies
2521300 HHW-4 complete set with all dies

Packing

Model G.W Packing size
HHW-2 49 kg 73*32*20 cm
HHW-3 98 kg 93*40*21 kg
HHW-4 149 kg 118*46*23 cm

More Information of Pipe Bending Dies

23 T Pressure Hydraulic Pipe Bender For Steel Pipe Up To 4

Bending Dies Size
(Inch)		 A
(mm)		 B
(mm)		 Minimum Bend Radius
(mm)		 D
(mm)		 Pipe Schedule Wall Thickness
(mm)
1/2" 115 67.5 50.2 22 40 2.8
80 3.7
3/4" 131 84.5 66 28 40 2.9
80 3.9
1" 147 96.5 75.4 34 40 3.4
80 4.5
1 1/4" 195 134 108.7 43 40 3.6
1 1/2" 242 162 133.5 50 40 3.7
2" 297 238 199.2 62 40 3.9
2 1/2" 380 257 209 79 40 4.5
3" 436 390 335 90 40 4.5
4" 555 450 400 110 40 5

HS CODE : 8462299000
