Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Electric Pipe Hole Cutting Machine for 6(152mm) Steel Pipes Hongli JK150
Specifications
Brand Name :
Hongli
Model Number :
JK150
Certification :
CE
Place of Origin :
Zhejiang , China
MOQ :
10 sets after sample order
Price :
can negotiate
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000 sets per month
Delivery Time :
7-30 days as per your order
Packaging Details :
one set per carton , packing size : 25*22*40 cm , packing weight : 22 kg
Product Name :
JK150 Pipe Hole Cutting Machine
Cutting Capacity :
up to 6" / 152 mm
Color of the Machine Body :
Yellow
Color of Motor :
Green
Pipe Mounting Capacity :
1 1/4"-12" / 30 mm- 300 mm
Motor :
1500 W universal type
Description

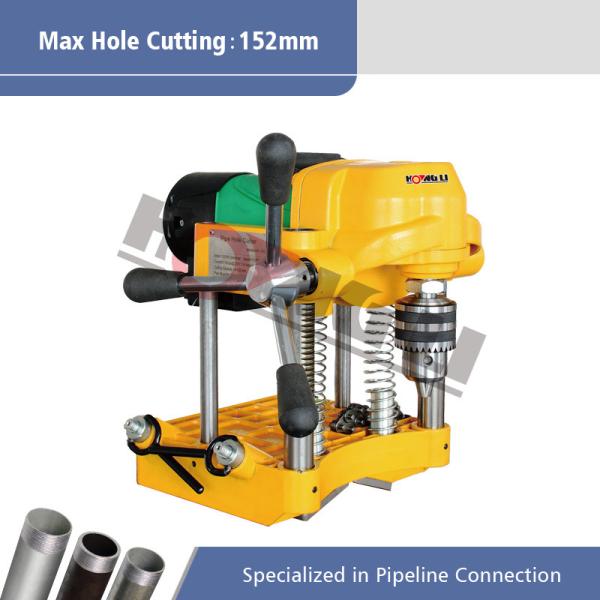

Hongli JK150 Electric Pipe Hole Cutting Machine for 6"(152mm) Steel Pipes

Product Description

1. The Hongli Model JK150 pipe hole cutter is designed to cut holes up to 152 mm into steel pipe.

The multiple hole sizes allow the use of Mechanical fittings for branching unpressurized pipe lines.

2. The JK150 has a 5/8” (16 mm) capacity drill chuck to accommodate all sizes of hole saws and hole saw arbors.

3. An integral motor and gear reduction optimizes performance of large diameter hole saws.

4. The two feed handles allows the operator to use the Hole Cutting Tool from either the left or right side.

Specifications

Cutting Capacity: up to 6” (152 mm)

Pipe Mounting Capacity: 1 1/4”-12” (30 mm-300 mm)

Drill Chuck Capacity: 3-16 mm

Drill Chuck Speed: 110 RPM (no load)

Motor: universal, 1500 W

Height: 303 mm

Length: 340 mm

Width: 315 mm

Ordering Information

Catalog No. Model No. Description Weight
JK150 Pipe hole cutter 110V-60Hz 20kg
JK150 Pipe hole cutter 220V-50Hz 20kg

HS:8462490000

Standard Configuration of JK150 Hole Cutting Machine

Electric Pipe Hole Cutting Machine for 6

Optional Spares for Hole Cutting Machine JK150

Electric Pipe Hole Cutting Machine for 6

Electric Pipe Hole Cutting Machine for 6Electric Pipe Hole Cutting Machine for 6

The color of hole saws also can be yellow like below

Electric Pipe Hole Cutting Machine for 6

Application of the hole cutting machine

Electric Pipe Hole Cutting Machine for 6

The machine can work together with tri-stand chain vice JK150

Electric Pipe Hole Cutting Machine for 6
