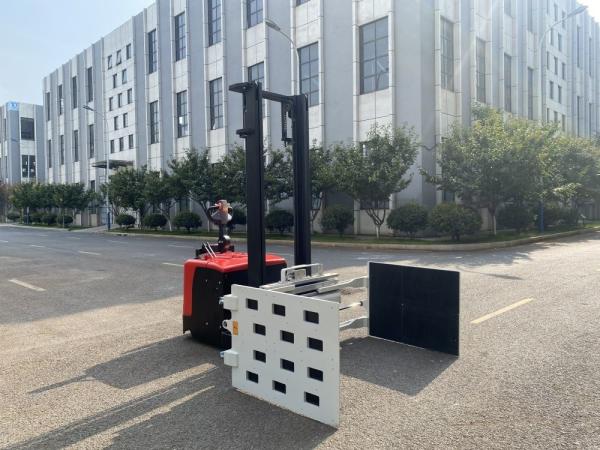

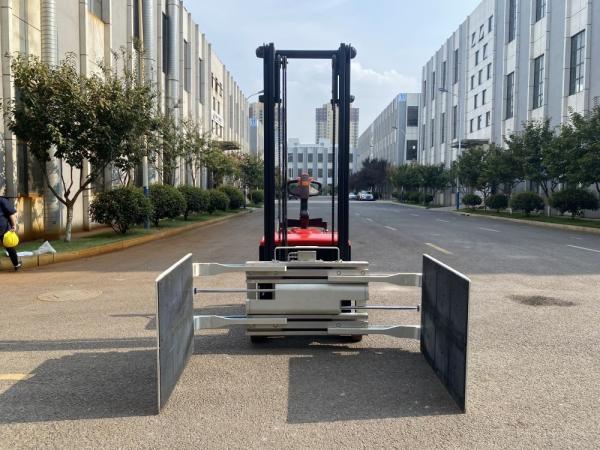

3000kg Industrial Walkie Stacker Lift Duplex mast 1150*190*65
3000kg Industrial Walkie Stacker Lift Duplex mast 1150*190*65
3000kg Industrial Walkie Stacker Lift Duplex mast 1150*190*65
3000kg Industrial Walkie Stacker Lift Duplex mast 1150*190*65
Specifications
Brand Name :
YONGJIELI
Model Number :
CDD30D
Certification :
CE
Place of Origin :
ANHUI, CHINA
MOQ :
1 SETS
Price :
USD2470.00 - USD4700.00
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
50 SETS PER MONTH
Delivery Time :
10 WORK DAYS
Packaging Details :
EXPORT PACKING
Description

Why choose our products? You can obtian the following advantages:

Advantages:

  • Dual oil cylinders, wide field mast
  • CURTIS brand drive control system in the United States
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Bucher brand low noise hydraulic pump from Germany
  • AC drive, brushless, motor maintenance free
  • Electromagnetic and regenerative braking system
  • Lifting limit and long life induction switch
  • Body damping system, pedal and handle damping

Security:

  • Automatic deceleration device for bends
  • Fork automatically decelerates at high position
  • Driving stepless speed regulation
  • Multiple automatic protection systems for controllers
  • Emergency reverse collision prevention/emergency braking device
  • Cylinder safety shut-off valve

3.0 Ton Customization Walking Pallet Stacker High Strength Fork Legs and Forks Narrow Channel Operating Handle

Model CDD30D
Power type Electric
Operation mode Walking type
Rated load kg 3000
Load center distance mm 500
Tire type (front/ rear) Polyurethane
Number of tires 4/1X+1
Mast type Duplex mast
Standard lifting height mm 3000
Height of mast closed mm 2080
Mast height during lifting mm 3565
Minimum ground clearance of cargo depot mm 85
Overall length mm 2030
Wheelbase mm 1430
Overall width mm 850
Track width (front/ rear) mm 490/545
Fork specifications mm 1150*190*65
Fork side outer distance mm 680/560
Turning radius mm 1645
Channel width (1200x1000 pallets, 1200 horizontal) mm 2515
Travel speed (full load/ no load) km/h 4.0/4.5
Lifting speed (full load/ no load) mm/s 80/125
Descent speed (full load/ no load) mm/s 160/105
Gradient (full load/ no load) % 6/10
Drive motor power kw 1.5
Type of lifting motor DC
Lifting motor power kw 2.2/3.0
Battery voltage/ capacity v/ah 24/100
Battery weight kg 75
Service weight (incl. battery) kg 850
Steering type Manual operation
Parking brake type Electromagnetism
Parking brake operation mode Handle operation
