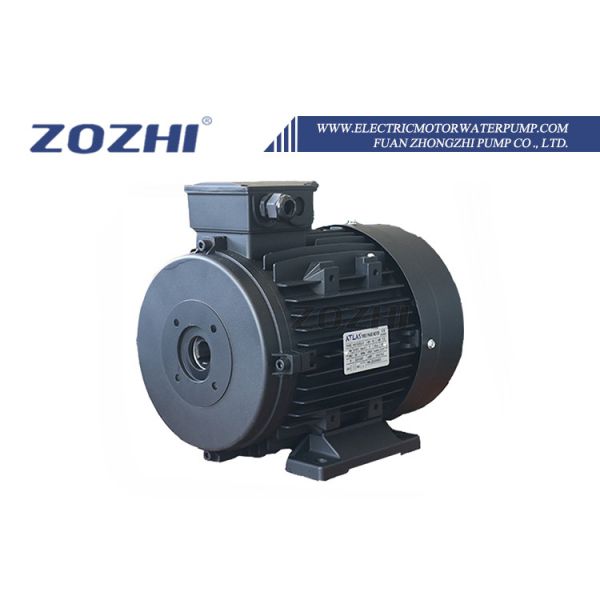

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
Specifications
Brand Name :
ZOZHI
Model Number :
HS160L3-4
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
USD550-USD700
Payment Terms :
L/C, T/T, Western Union, Alipay,Wechat,Credit Card
Supply Ability :
10000pcs/month
Delivery Time :
15 working days after received your payment
Packaging Details :
Packed in veneer case
Product Name :
Hollow Shaft Motor
Application :
Pressure Washer Machine
Power Range :
22KW/30HP
V.& Hz :
220/380V 50Hz
Flange Size :
87/61mm
Hollow Shaft D. :
24mm
Housing :
Die Cast Aluminum
Insulation Class :
F or H
Protection :
IP55 or IP65
Bearing :
Two bearings
Description
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor
Product Overview

ZOZHI High Efficiency 3 Phase Hollow Shaft Waterproof Asynchronous Electric Motor with aluminum housing and flange mounting featuring 100% copper winding. Available in 2-pole, 4-pole, and 6-pole configurations.

Key Specifications
  • Supply: 220V/380V
  • Power: 30HP/22kW
  • RPM: 1400
  • Female Shaft: 24mm (Outer Diameter)
  • M/M: 87/61mm
  • B34 Face Flange
  • IEC Frame: 160
  • Material: Aluminum
Application

The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
Advantages
High-Efficiency Motor

High-standard material with 100% output

Popular Motor

Get good feedback from customer

OEM & ODM

Customized service

Direct Manufacturer

24 hours online service

3 Years Warranty

Almost without any after service

7 Days Shipment

Stock Material

Related Products
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Hollow Shaft Motor - Three Phase

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Hollow Shaft Motor - Single Phase

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Solid Shaft Motor - 3 Phase

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Solid Shaft Motor - Mono Phase

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Solid Shaft AC Induction Single-Phase Motor

ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding

Electric Centrifugal Switch for Single Phase Motor

Factory Overview
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
Customer Feedback
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
FRAME POWER K.W. POWER HP RPM COS φ EFF.% VOLT V AMPERE A
HS90L1-22.2328200.86784004.9
HS90L2-23428200.86784006.6
HS90L3-23.7528200.80834008.6
HS100L1-23428400.83814007
HS100L2-245.528500.86824008.5
HS100M1-245.528300.84824009.4
HS112M2-25.57.528400.858340011.7
HS132S1-25.57.528900.868440011.6
HS132S2-27.51029000.868440015.4
HS132M1-2111529200.888640021.8
HS132M2-2152029200.888640029.3
HS160M1-2152029200.878840028
HS160M2-218.52529200.878940034
HS160M3-2223029200.8789.240041
Installation Dimensions
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
FRAME FLANGE M FLANGE N FLANGE S FRAME A FRAME AC FRAME B FRAME H FRAME HC FRAME L FRAME K
90L75/8790/617/9140175125902202709.5
100L75/8790/617/916019614010024031511
112M75/8790/617/919022014013227533011
132S8761921625414013232037012
132M8761921625417813232040912
160M8761925431021016041049814.5
Warranty

Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Certification
ZOZHI Three-Phase High Efficiency Waterproof Variable Speed AC Motor Aluminum Housing Flange Mounting 100% Copper Winding
Frequently Asked Questions
Q: What's the MOQ?
A: A trial sample order is ok.
Q: Are you a factory or trading company?
A: Manufacturer. Focus on motors for more than 15 years.
Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
Q: How can I get the sample?
A: Usually, we suggest express for samples.
Q: What's the warranty period?
A: 3 years from shipped on board date.
Q: What are your terms of payment?
A: 30% advance payment, balance before shipment.
