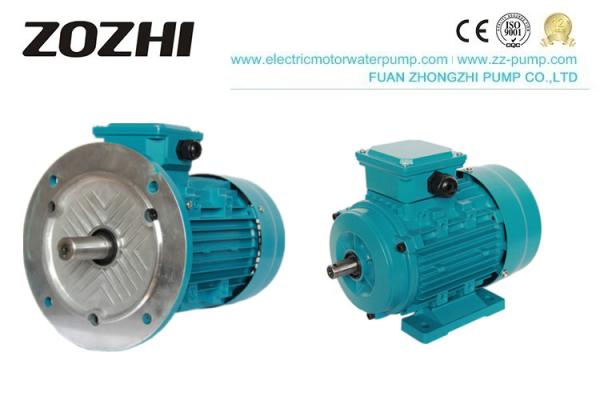

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor
Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor
Specifications
Brand Name :
ZOZHI
Model Number :
MS802-2
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
$35.3~$45.5
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
3 Phase Induction Motor
Application :
Drivng
Power :
1.1kw/1.5Hp
Pole :
2
Phase :
Three phase
Housing :
Aluminum
Insulation Class :
B,F
Protection :
IP44 / IP54
Rated voltage :
380V
Duty :
S1(continuous)
Description

aluminum housing three-phase ac electric motor 1.1kw

3 Phase Induction Motor

1, MS series aluminum housing three-phase asynchronous motors, with the latest design in entirety is made of selected quality materials and conform to the IEC standard

2, MS has good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, with low noises, IittIe vibration, and lightweight and simple construction.

3, MS series motors can be used for general drive

OPERATING LIMITS:

Ambient temperature:-15℃-0-40℃

Protection:IP44/IP54/IP55

Insulation Class: B/F/H

Rated voltage:380V or any voltage between 220-760V

Frequency:50HZ/60HZ

Duty: S1(continuous)

Above sea level: not exceed 1000m

Cooling method: ICO141

Connection:star-connection for up to 4HP,

MS Series Three Phase Induction Motor
Model MS802-2
Rated Power 1.1kw/1.5Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15. C ~40 . C
Weight 9.8kgs
Measure 33x19x21.5cm

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Reviews from the client:

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

​

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor

Aluminum ICO141 Cooling 380v 1.1kw 1.5Hp 3 Phase Ac Motor
