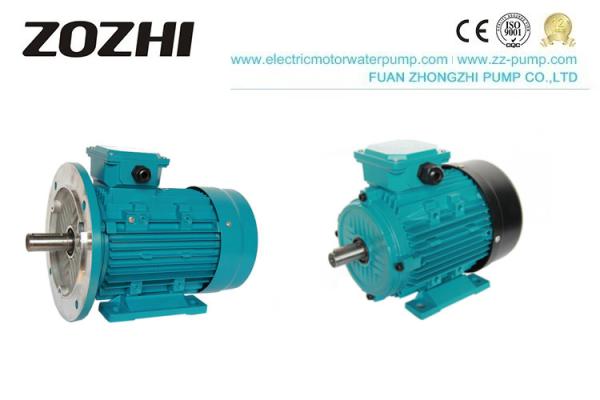

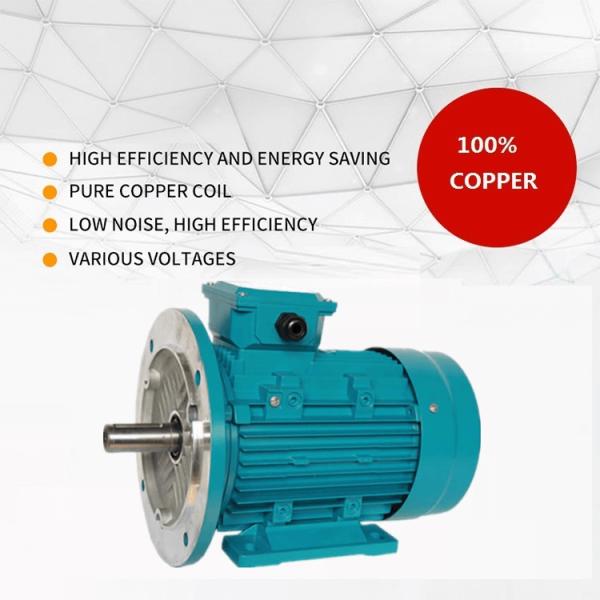

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer
IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer
IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer
IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer
Specifications
Brand Name :
ZOZHI
Model Number :
MS100L1-4
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
1pc
Price :
$35.3~$45.5
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
3 Phase Induction Motor
Application :
Drivng
Power :
1.1kw/1.5Hp
Pole :
2
Phase :
Three phase
Housing :
Aluminum
Insulation Class :
B,F
Protection :
IP44 / IP54
Rated voltage :
380V
Duty :
S1(continuous)
Flange Size :
B35
Description

3 Phase Induction Motor

ABOUT US

We are a professional manufacturer of water pumps and electric motors in China.

The electric motor includes a single-phase and three-phase aluminum housing motor, a single-phase and three-phase cast iron housing the motor, etc.

The water pump includes a peripheral water pump, self-priming pump, centrifugal pump, swimming pool pump, etc.

MS three-phase electric motor 7.5 hp:

MS series three-phase asynchronous induction motor is a TEFC squirrel cage motor with a unified national design. It has the characteristics of high efficiency, energy saving, high starting torque, low noise, low vibration, and easy maintenance. The grade of power and the mounting measurement are subject to the IEC standard. This series motor is commonly used in the machinery without special requirement especially for reducer, air compressor, water pump, oil pump, packaging and food machinery and so on

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

Reviews from the client:

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

​

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer

IP44 Aluminum Electric Induction Motor TEFC For Pump Reducer
