Specifications
Brand Name :
ZOZHI
Model Number :
160M2-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Voltage :
230/400V
Phase :
Three phase
Output :
18.5kw/25hp
Speed :
1400rpm
Shaft :
24mm
Frame :
160
Material :
Die Cast Aluminum
Pole :
4
Insulation :
Class F
Protection :
IP55
Installation :
B3
IEC Standard :
IE1
Application :
cleaning machine / pressure washer machine
Description

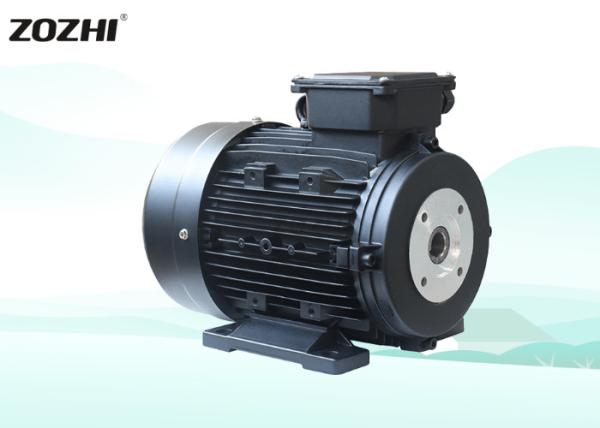

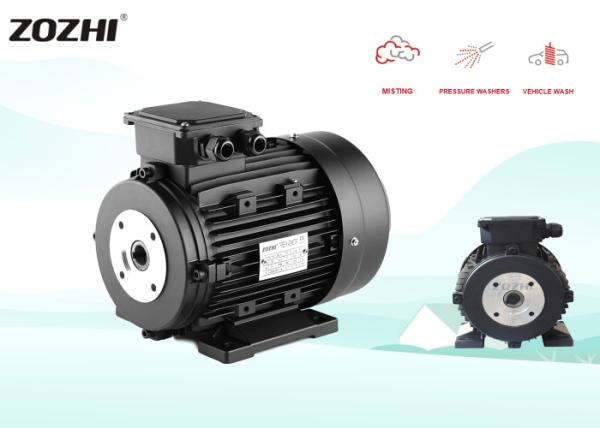

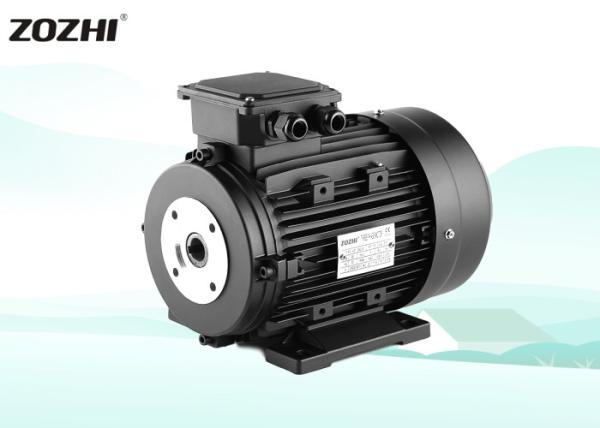

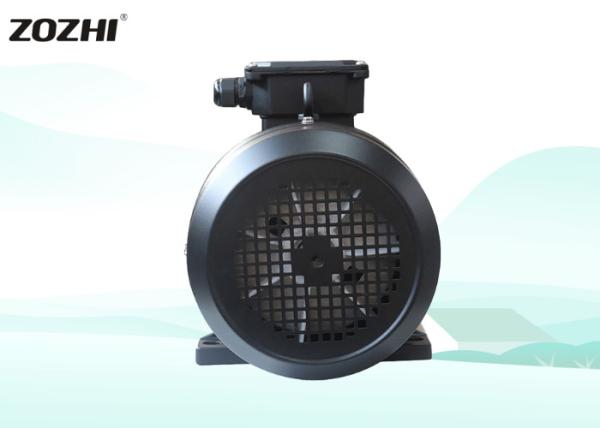

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine

Hollow Shaft Motor

Enclosed ordinary since the fan cooling squirrel-cage three-phase hollow shaft asynchronous motor. This series of motor power ratings, the installation dimensions are in line with the international electrotechnical commission standard (IFE), is advantageous to the export of equipment and the introduction of a complete set of spare parts.

Full copper wire national standard motor

Cold rolled 800# silicon steel sheet

Intelligent finishing

Stainless steel seamless deep stretching fume collection cavity and the smoke cage effect are better.

C&U bearing high strength carbon steel material ensures the service life of the motor dustproof effect.

400 - Volts

Three Phase 50 Hz

25 hp / 18.5 kW

Speed-1400 rpm 4pole

Inner Shaft - 24mm Female Hollow

IEC 160M2 Frame - B3 Foot Mount

Die-cast aluminum housing

Rated to IP55

Insulation: F

For Cleaning Machine

50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP

Application

24mm Hollow Shaft Three Phase Motor Die Cast Aluminum 25hp 18.5kw For Cleaning Machine
