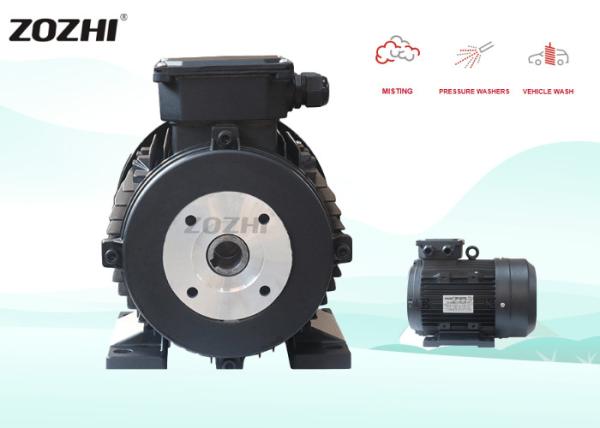

24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
Specifications
Brand Name :
ZOZHI
Model Number :
132S1-4
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Product Name :
Hollow Shaft Motor
Voltage :
230/400V
Phase :
Three phase
Output :
7.5kw/10hp
Speed :
1400rpm
Shaft :
24mm
Frame :
160
Material :
Die Cast Aluminum
Pole :
4
Insulation :
Class F
Protection :
IP55
Installation :
B3
IEC Standard :
IE1
Application :
cleaning machine / pressure washer machine
Description

24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine

Hollow Shaft Motor

Aluminum housing Hollow Shafat Electric Motor

Directed connect to the pump

132S1-4 400V/50HP

three-phase 7.5kw/10 HP

4pole Class F

100% Copper Wire

High efficiency and low noise

Dustproof and waterproof

low vibration

1400rpm 4pole B3 foot mount

Squirrel cage electric motor with the inner shaft

50Hz Electric Motor - B3 - Hollow Shaft - Three Phase - 4Pole (1400 RPM)

FRAME POWER RPM COSφ EFF.% VOLT AMPERE
KW H.P. P.F. V A
711-4 0.25 0.35 1370 0.73 64 400 0.8
712-4 0.37 0.5 1350 0.74 68 400 1.1
713-4 0.55 0.75 1350 0.75 66 400 1.6
90L1-4 1.5 2 1400 0.82 78 400 3.4
90L2-4 2.2 3 1400 0.79 77 400 5.4
90L3-4 2.6 3.5 1400 0.8 78 400 7.4
100L1-4 2.2 3 1400 0.8 81 400 5.1
100L2-4 3 4 1410 0.8 81 400 6.9
100L3-4 4 5.5 1420 0.8 82 400 9.4
100M1-4 4.4 6 1420 0.82 83 400 10
112M1-4 4 5.5 1420 0.8 83 400 9
112M2-4 5.5 7.5 1430 0.82 84 400 12.1
112M3-4 6.2 8.5 1425 0.82 84 400 13.5
112L-4 7 9.5 1430 0.8 85 400 13.8
132S1-4 5.5 7.5 1430 0.82 84 400 11.7
132S2-4 7.5 10 1430 0.84 84 400 15.4
132M1-4 9.2 12.5 1430 0.9 85 400 17.8
132M2-4 11 15 1430 0.9 87 400 21.3
132M3-4 12.5 17 1430 0.88 84 400 26
160M1-4 15 20 1450 0.86 89 400 29
160M2-4 18.5 25 1450 0.86 90 400 34

24MM Shaft Three Phase Electric Motor 1400rpm CE Certificated For Clean Machine
FRAME FLANGE FRAME NO APPLICABLE PUMP MODEL
AR PUMP HAWK PUMP INTERPUMP
71 90mm 71 X.M. - R.K. - RG
90 61/90mm 90L XM - RK - RG Series44/49/50/51/58/60/63
100 61/90mm 100L XM - RK - RW - XW - RG RC - RR - RS NHD -NHDP -NMT Series44/49/50/51/58/ 60/ 63
112 61/90mm 112M XM - RK - RW - XW - RG RC - RR - RS NHD - NHDP -NMT -NPM Series 47/59/66
132 61/90mm 132S RK - XW - RG RR
132 61/90mm 132M RK - XW - XWL - SXW - SHP - RG NMT -NPM -PXI - NLTI -XLTI
160 61mm 160M X.W. - XWL - SWL - SHP
