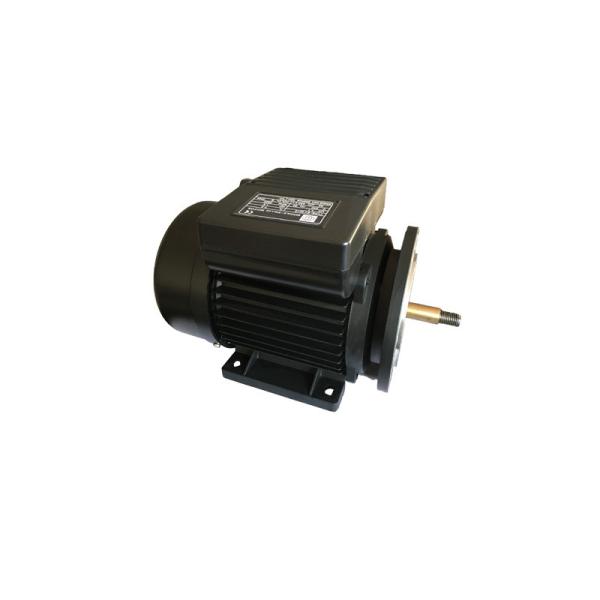

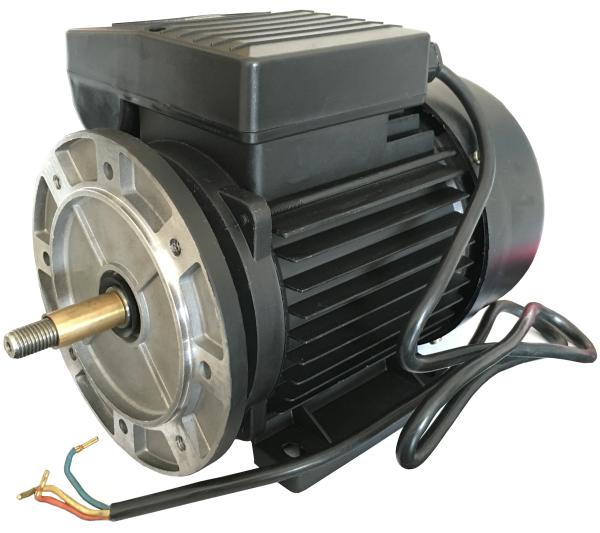

Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Specifications
Brand Name :
ZOZHI
Model Number :
MYT711-2
Certification :
CE,ISO
Place of Origin :
FUAN CHINA
MOQ :
10pcs
Price :
negotiated
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Application :
Swimming pool pump
Voltage :
220V
Power :
0.55kw/0.75hp
Speed :
2800rpm
Housing :
Aluminum
Duty :
1year
Description

Description

Single-phase induction motor application to the swimming pool pump

  • Motor model: MYT712-2
  • Power: 0.75HP/1KW
  • Voltage(V) : 220V /50HZ
  • Protection: IP54
  • Insulation Class: B
  • Ambient temperature: -15℃≦0≦40℃

Production data

Model Power Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7

General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.7kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level

Application

Single-phase electric water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.

Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor

Production line

Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor

Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor

Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor
Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor Aluminum 2800rpm 0.75kw 1hp Asynchronous Ac Motor

Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

Our service

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
