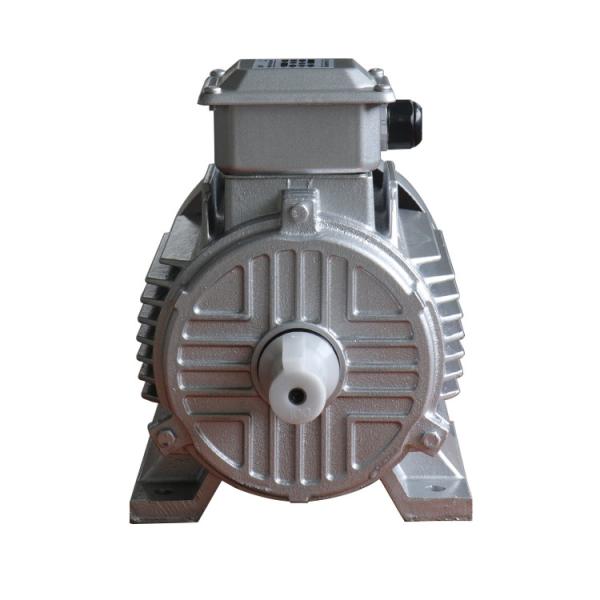

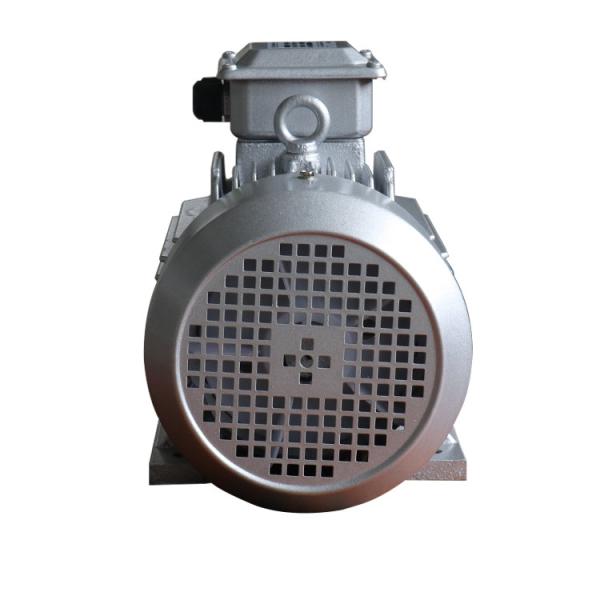

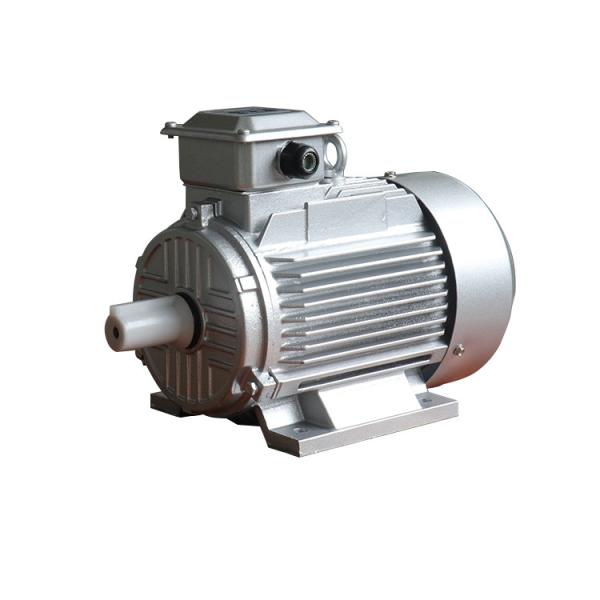

Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4
Specifications
Brand Name :
ZOZHI
Model Number :
MS132S-4
Certification :
CCC, CE
Place of Origin :
China
MOQ :
1pc
Price :
$35.3~$45.5
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Delivery Time :
25 working days after received your payment
Packaging Details :
Packed in cartons,veneer case or wooden case.
Type :
Asynchronous Motor, Induction Motor
Frequency :
50HZ
Phase :
3 Phase Induction Motor
Protect Feature :
Totally Enclosed
AC Voltage :
220V,380V or on request
Efficiency :
IE1,IE2
Model Name :
MS
Power :
3KW/4HP
Structure :
Asynchronous Motor
Protection Class :
IP44/IP54
Color :
Black or Customers' Request
Material :
Aluminum Housing
Winding :
Aluminium or copper
Description

3 Phase Induction Motor

MS series motor adopts the latest design and high-quality material and conforms to the IEC standard. The motor's efficiency meets EFF2 standard in Europe and EFF1 standard if requested. The motor has a lot of advantages, including high efficiency, energy-saving, low noise, little vibration, lightweight, convenient operation, and maintenance. The motor with removable feet is made of aluminum –alloy die casting. The user could have various mounting modes available.

The series motor fits common sites and concise machines with no special requirements, including air-compressor, pump, fan, medical apparatus and instruments, small machines, etc.

Applications: General purpose including cutting machines, fans, machine tools, mixers, agriculture machinery, pumps, etc.

Operation conditions

Ambient temperature:-15°C<q<40 °C

Altitude: not exceed 1000m
Rated voltage: 380V or any voltage between 220V-660V.

Rated frequency: 50HZ, 60HZ
Protection Class: IP44, IP54 ,IP55
Insulation Class: BF
Cooling method: IC0141 Duty: S1 (continuous)

Connection:star-connection for up to 3kw, delta-connection for 4kw and above.

Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4

Aluminum IE2 5.5kW 4HP 3 Phase Induction Motor MS132S-4

Technical data

Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5
