Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Specifications
Traffic :
Forklift
Application :
Warehouse Logistics
Material :
PVC
Door Type :
Stacking
Operation :
High Speed
Description
Warehouse Traffic Solution
Stacking High Speed Door for Warehouse Logistics and Forklift Traffic

Designed for busy warehouse lanes, distribution centres, loading areas and forklift routes. This high speed stacking door supports rapid material flow while helping separate work zones, improve visibility and integrate with industrial automation controls.

Warehouse Logistics Advantages
Fast Forklift Passage Rapid operation supports smoother movement between warehouse zones, storage areas and loading routes.
Automatic Activation Radar, induction loop, pull cord, remote control and PLC signal options help reduce manual door operation.
Enhanced Visibility Transparent PVC vision panels help forklift operators and pedestrians monitor traffic on both sides of the opening.
Safety Sensor Options Photo eyes and safety light curtains can detect obstructions within the doorway and help protect people and equipment.
High Frequency Operation Designed for busy logistics routes that require repeated opening and closing during daily warehouse operations.
Automation Integration Optional PLC, AGV, conveyor, BMS and door-status feedback interfaces support automated facility workflows.
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Technical Parameters
Door Type Warehouse logistics stacking high speed door
Main Application Warehouse passageway, forklift route, loading area, distribution centre and material transfer zone
Curtain Material Industrial PVC curtain with optional transparent PVC vision sections
Door Structure Stacking curtain, reinforced horizontal bars, side guide rails, motor drive and control system
Opening Size Custom dimensions based on forklift height, pallet size, traffic volume and clear opening requirement
Opening Speed Configured according to opening dimensions, curtain weight, operating cycle and site safety requirements
Activation Methods Radar sensor, pull cord, remote control, push button, induction loop, access control and PLC signal
Safety Devices Photo eyes, safety light curtain, bottom safety edge, warning lamp, audible alarm and emergency stop
Automation Interface Optional PLC, AGV, conveyor, BMS and door status feedback connection
Frame and Guides Galvanized steel, powder-coated steel or project-specific frame configuration
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic
Traffic and Safety Design
Forklift Activation

The door can receive opening commands from radar sensors, induction loops, pull cords or warehouse control signals. Activation methods can be selected according to vehicle speed, route layout and pedestrian safety requirements.

Transparent Vision Area

Optional transparent PVC panels improve visibility around busy intersections, helping drivers and pedestrians identify oncoming traffic before entering the passageway.

Safety Light Curtain

A safety light curtain can monitor the opening area and help stop or reverse door movement if an obstruction is detected during closing.

Manufacturing Process
  1. Confirm clear opening size, forklift dimensions and warehouse traffic direction.
  2. Select curtain configuration, transparent window position and safety package.
  3. Fabricate the guide rails, structural frame, stacking curtain and drive system.
  4. Install control box, sensors, warning devices and optional automation connections.
  5. Test opening sequence, closing safety response and control signal operation.
The activation method should be selected carefully for shared forklift and pedestrian routes. Sensor position, opening delay and safety-zone settings should match actual site traffic conditions.
Energy Saving Stacking High Speed PVC Door For Warehouse Logistics And Forklift Traffic

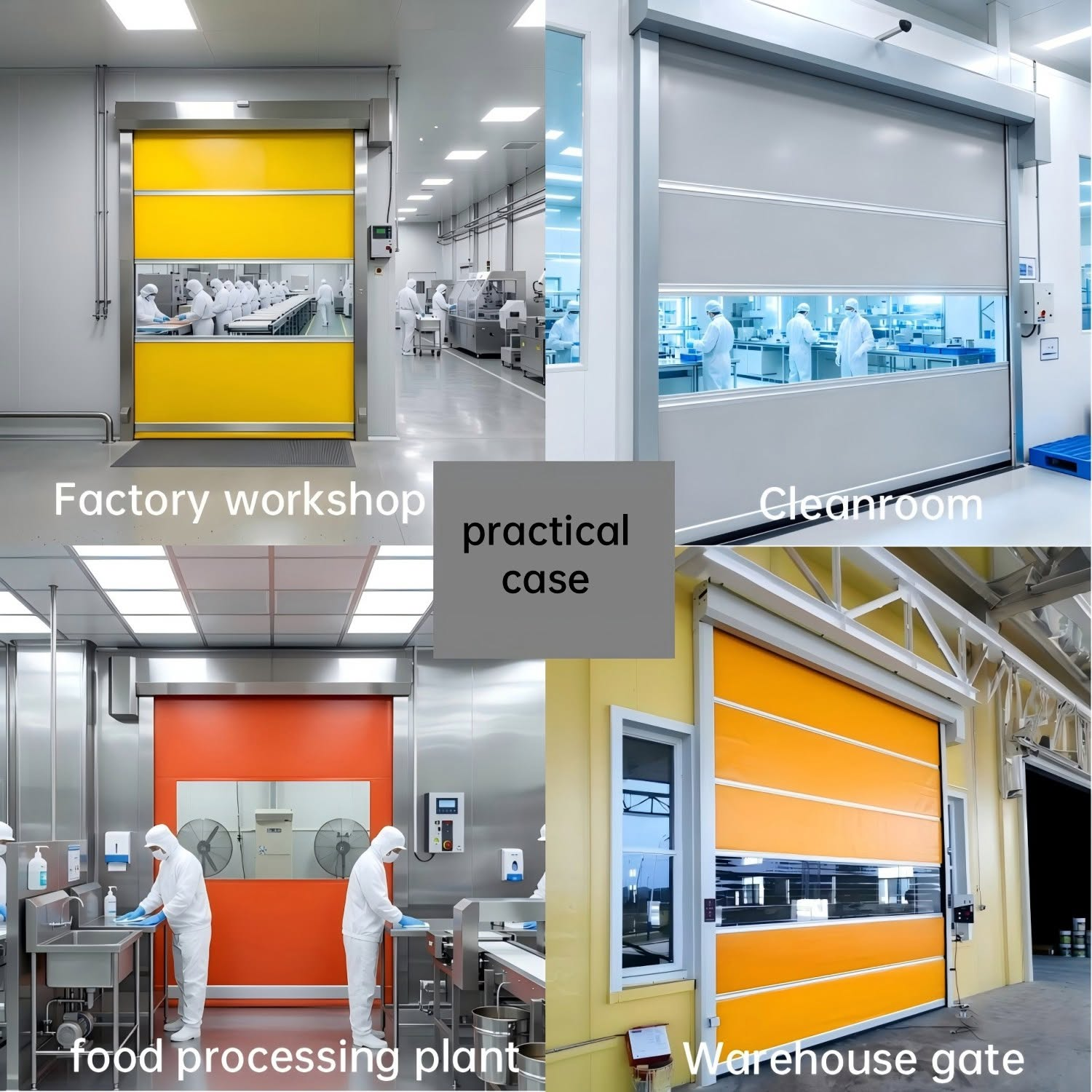

Recommended Applications
Warehouse Aisles Forklift Routes Distribution Centres Loading Areas Sorting Facilities Packaging Zones AGV Passageways Material Transfer Areas
Installation and Maintenance
  • Confirm that the door opening is clear of racks, conveyors and vehicle turning paths.
  • Mount side guides vertically and keep the stacking mechanism level.
  • Position radar sensors and pull cords outside forklift collision zones.
  • Clean guide rails and inspect curtain edges, wind bars and fasteners regularly.
  • Test light curtains, photo eyes, emergency stop and control signals during preventive service.
FAQ
1. Is this stacking door suitable for forklift traffic? Yes. It can be configured for forklift routes with radar sensors, pull cords, induction loops, transparent windows and industrial safety devices.
2. Can the door open automatically when a forklift approaches? Yes. Radar sensors, vehicle loops or PLC signals can activate the door according to your warehouse traffic layout.
3. Can pedestrians use the same opening? Yes, but the safety package and activation layout should be selected carefully for mixed pedestrian and vehicle traffic.
4. What safety devices can be installed? Available options include photo eyes, safety light curtains, bottom safety edges, warning lights, audible alarms and emergency stop buttons.
5. Can transparent PVC windows be added? Yes. Transparent vision panels can improve safety by allowing forklift operators to see approaching traffic from the opposite side.
6. Can the door connect to a PLC system? Yes. The control panel can support PLC commands, door-status feedback, AGV signals, conveyor interlocks and BMS integration.
7. Can the door be used at a loading dock? Yes. It can be installed at loading areas, material transfer points and warehouse dock approaches, subject to the final opening and traffic layout.
8. How is the door size selected? Door size should be based on forklift mast height, load dimensions, pallet clearance, traffic volume and available installation space.
9. What maintenance is required? Regularly inspect the curtain, guide rails, wind bars, motor, sensors, control panel and safety devices. Keep the
