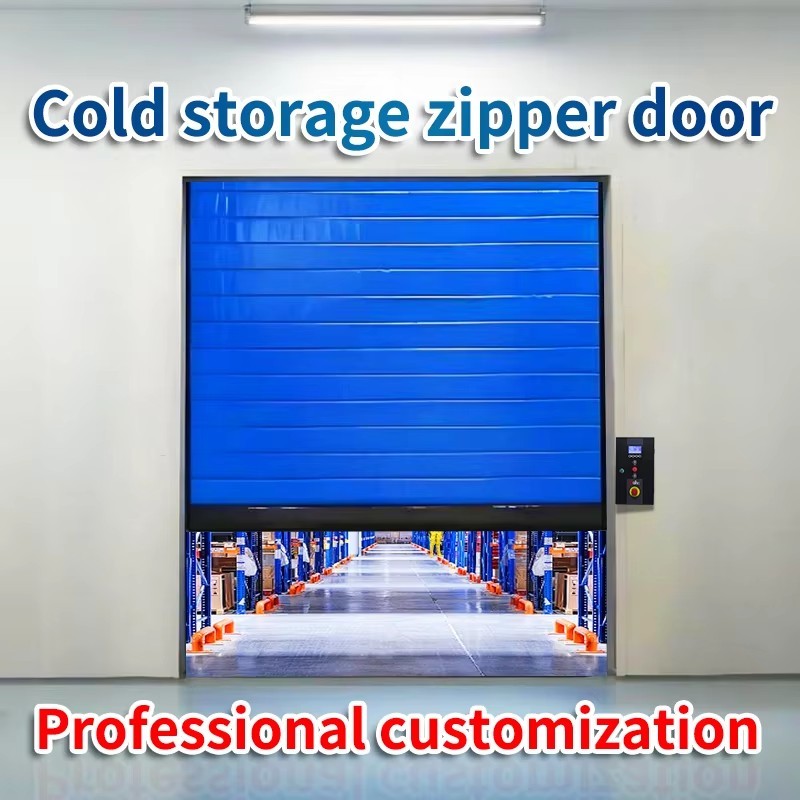

Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Specifications
Feature :
Temperature Control
Application :
Cold Storage
Insulation :
Thermal
Door Type :
Insulated Stacking
Operation :
High Speed
Description
Cold Chain Door Solution
Insulated Stacking High Speed Door for Cold Storage and Temperature Control

Designed for cold storage, food processing, refrigerated warehouses and temperature-controlled logistics routes. Rapid stacking operation, perimeter sealing and low-temperature component options help separate environmental zones while supporting efficient material movement.

View Technical Parameters
Cold Storage Door Advantages
Reduced Air Exchange Fast opening and closing helps reduce the duration of open-door exposure between cold, chilled and ambient areas.
Insulated Curtain Options Curtain configuration can be selected for temperature separation, operational flexibility and cold-chain traffic conditions.
Low-Temperature Components Motor, control box, seals and safety devices can be configured for project-specific low-temperature environments.
Perimeter Seal Design Side guides, top sealing and bottom sealing help improve separation between adjacent temperature zones.
Automatic Material Flow Radar, pull cord, remote control, access control and PLC signals support pallet, forklift and cold-chain logistics traffic.
Flexible Safety Package Photo eyes, safety light curtains, warning lights and emergency stop controls can be selected for busy cold storage routes.
Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Technical Parameters
Door Type Insulated stacking high speed door for cold storage and temperature control
Main Application Cold storage, cold chain warehouse, food processing, refrigerated logistics and temperature-controlled buffer zone
Curtain Material Industrial PVC curtain with optional insulated or multi-layer curtain configuration
Door Structure Stacking curtain, reinforced horizontal bars, side guide rails, sealing system and motor drive
Temperature Design Selected according to operating temperature, humidity, frost risk and traffic conditions
Opening Size Custom width and height based on forklift dimensions, pallet movement and cold storage layout
Opening Speed Configured according to door dimensions, curtain system, motor capacity and required operating cycle
Sealing Options Top seal, side seal, bottom seal and project-specific air-leakage control configuration

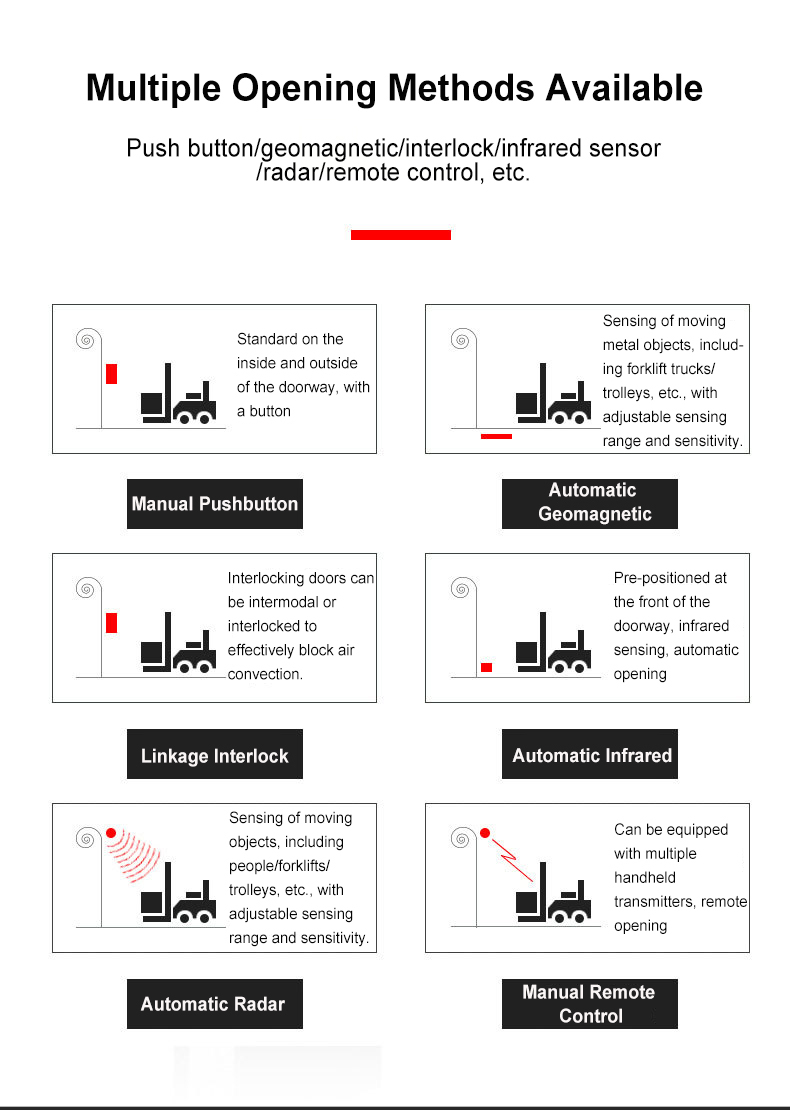

Control Methods Push button, remote control, radar, pull cord, induction loop, PLC, BMS and access control
Safety Devices Photo eyes, safety light curtain, bottom safety edge, warning lamp, audible alarm and emergency stop
Thermal Separation Design
Rapid Stacking Operation

The flexible curtain stacks upward rapidly to minimize the time that the doorway remains open. This supports more efficient movement between cold rooms, buffer zones and ambient logistics areas.

Sealed Guide System

Side guide and perimeter sealing components help reduce drafts, dust movement and uncontrolled air exchange around the curtain edges.

Low-Temperature Configuration

Door components can be selected according to temperature range, humidity level, condensation risk and project-specific cold-chain operating conditions.

Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Insulated Curtain Stacking High Speed Door For Cold Storage And Temperature Control
Manufacturing Process
  1. Confirm clear opening, target temperature zones and traffic frequency.
  2. Select curtain configuration, sealing system, motor and low-temperature options.
  3. Fabricate frame, side guides, stacking curtain and drive components.
  4. Install safety devices, control panel and automation interfaces.
  5. Test curtain movement, seal contact, sensor response and emergency operation.
For cold-room projects, the final door configuration should be selected according to room temperature, humidity, condensation risk, air-pressure difference and the expected daily traffic volume.

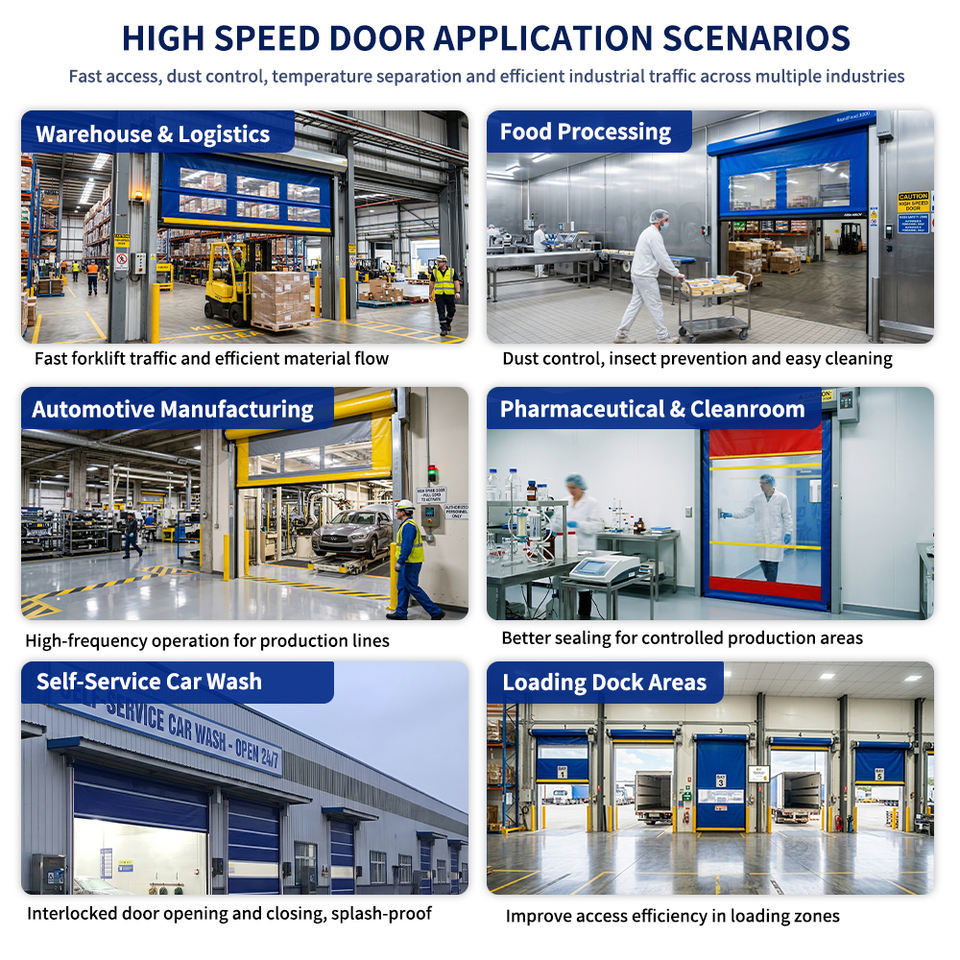

Recommended Applications
Cold Storage Rooms
Cold Chain Warehouses
Food Processing Plants
Refrigerated Logistics
Freezer Buffer Areas
Pharmaceutical Storage
Temperature-Controlled Zones
Pallet Transfer Routes
Installation and Maintenance
  • Confirm wall insulation, door opening size and adjacent temperature-zone layout before installation.
  • Install side guides level and ensure seals contact evenly around the opening.
  • Keep curtain surfaces, guides and bottom sealing area free of frost, ice and debris.
  • Inspect curtain condition, wind bars, motor, sensor wiring and seal wear regularly.
  • Test emergency stop, photo eyes and safety light curtain during planned maintenance.
FAQ
1. Why is a high speed door used in cold storage? A high speed door can reduce the time an opening remains open, helping limit air exchange between refrigerated and ambient areas.
2. Can this stacking door be used in a freezer area? It can be configured for low-temperature environments, but the curtain, motor, seals and control components should be selected according to the actual operating temperature and humidity.
3. Does the door use an insulated curtain? Insulated or multi-layer curtain configurations can be selected where improved temperature separation is required.
4. Can the door reduce cold air loss? Fast opening, fast closing and perimeter sealing can help reduce the time and pathways for uncontrolled air exchange.
5. Can forklifts activate the door automatically? Yes. Radar sensors, induction loops, pull cords, remote controls and PLC signals can be used for forklift and pallet traffic routes.
6. Can transparent windows be added? Yes. Transparent PVC vision panels can be added to improve visibility where forklift operators and pedestrians share the route.
7. Which safety devices are available? Options include photo eyes, safety light curtains, bottom safety edge, warning lights, audible alarms and emergency stop controls.
8. Can the door connect to PLC or BMS systems? Yes. The control system can be configured for PLC, BMS, access control, conveyor interlock and door status feedback connections.
9. How should the door be maintained in a cold environment? Inspect seals, curtain material, guide rails, sensors, wiring and motor components regularly. Keep the bottom area clear of frost, ice and accumulated debris.
10. Can the door size and configuration be customized? Yes. Door dimensions, curtain type, insulation configuration, window layout, sealing package, control method and safety system can be customized
