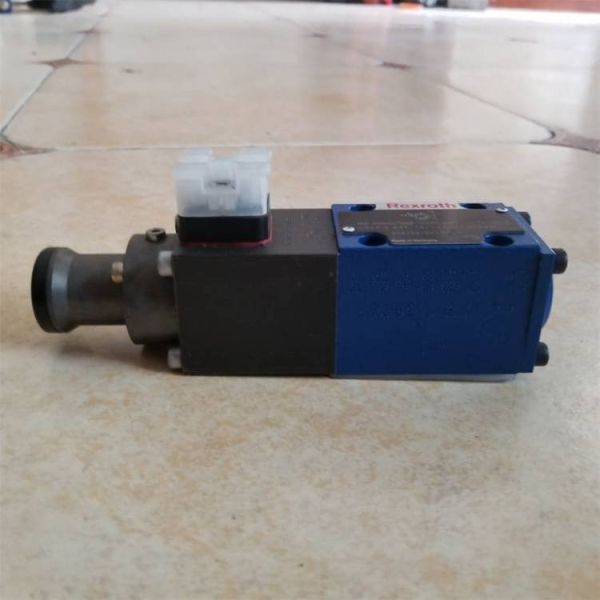

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth
DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth
DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth
DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth
Specifications
Brand Name :
Rexroth
Model Number :
DBETR-1X/30G24K4M
Certification :
ISO
Place of Origin :
Germany
MOQ :
1
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100
Delivery Time :
2 weeks
Packaging Details :
wooden box
Sealtype :
NBR or Viton Seals
Material :
High-strength Steel and Aluminum
Outlet Port Size :
G3/4
Delivery Date :
5 days
Condition :
New
Charging :
micro5p
Mountingtype :
Flange Mount
Description

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

Technical Parameters for DBETR-1X/30G24K4M
Parameter
Specification
Product Series & Type​
DBETR series, Direct-operated proportional relief valve
Nominal Size​
NG6 (port size corresponding to ISO 4401 standard)
Maximum Operating Pressure​
315 bar (system pressure)
Pressure Setting Range​
0 to 30 bar (adjustable via electrical signal)
Supply Voltage​
24 V DC (±10%)
Nominal Current​
Typically 0.8-1.0 A (at 20°C)
Coil Resistance​
Approximately 19-29 Ω (at 20°C)

DBETR-1X/30G24K4M Proportional pressure limiting valve DBETR made in Germany by Rexroth

DBETE-5X/315G24K31F1M
DBETE-5X/350G24K31F1V
DBETBEX-1X/310G24K31A1M
DBETFX-1X/80G24-27NZ4M
DBETFX-1X/180G24-27NZ4M
DBETFX-1X/250G24-27NZ4M
DBETFX-1X/315G24-27NZ4M
DBETX-10/50G24-8NZ4M
DBETX-10/80G24-8NZ4M
DBETX-10/180G24-8NZ4M
DBETX-10/50G24-25NZ4M
DBETX-10/80G24-25NZ4M
DBETX-10/180G24-25NZ4M
DBETX-10/250G24-25NZ4M
DBETX-10/315G24-25Z4M
DBET6X/50G24K4V
DBET6X/100G24K4V
DBETB-6X/315G24K31A1V
DBETB-6X/350G24K31A1V
DBE6X-1X/80G24-8NZ4M
DBE6X-1X/180G24-8NZ4M
DBE6X-1X/80G24-25NZ4M
DBE6X-1X/180G24-25NZ4M
DBE6X-1X/315G24-25NZ4M
DBEBE6X-1X/80G24K31F1M
DBE10Z-1X/180XYG24-8NZ4M
DBE10Z-1X/315XYG24-8NZ4M
DBEB10Z-1X/180XYG24-37Z4M
DBEB10Z-1X/315XYG24-37Z4M
DBEBE10Z-1X/180XYG24K31A1M
DBEBE10Z-1X/315XYG24K31A1M
DBEME20DBEME30
DBEME10-5X/50YG24K31M
DBEME10-5X/100YG24K31M
DBEME10-5X/200YG24K31M
DBEME10-5X/315YG24K31M
DBEME10-5X/350YG24K31M
DBEME20-5X/50YG24K31M
DBEME20-5Xyi00YG24K31M
DBEME20-5X/200YG24K31M
DBEME20-5X/315YG24K31M
DBEME20-5X/350YG24K31M
DBEME30-3X/50YG24K31M
DBEME30-3X/100YG24K31M
DBEME30-3X/200YG24K31M
DBEME30-3X/315YG24K31M
DBEME30-3X/350YG24K31M
DBEE6-1X/50YG24K31M
DBEE6-1X/100YG24K31M
DBEE6-1X/200YG24K31M
DBEE6-1X/315YG24K31M
ZDBEE6VP2-1X/50G24K31M
ZDBEE6VP2-1X/100G24K31M
ZDBEE6VP2-1X/200G24K31M
ZDBEE6VP2-1X/315G24K31M

FAQ:

1. What is the main function of this valve?​
This is a direct-operated proportional relief valve. Its primary function is to continuously and precisely regulate hydraulic system pressure by receiving electrical control signals (typically 0-20mA or 0-10V), while also serving as a safety valve to prevent system overpressure. It's designed for remote electrical control of pressure in hydraulic systems.
2. What does the "30" in the model code indicate?​
The "30" specifies the maximum pressure setting capability of 30 bar. This is a lower pressure range compared to other models in the DBETR series. The valve can be electrically adjusted to regulate pressure from 0 to 30 bar. This makes it suitable for applications requiring precise low-pressure control.
3. What are the key electrical specifications?​
  • Operating voltage: 24V DC (±10%)
  • Nominal current: Typically 0.8-1.0 A (varies by coil type)
  • Coil resistance: Approximately 19-29 Ω (at 20°C)
  • Electrical connection: DIN 43650 standard plug connector (K4 type)
  • Requires compatible proportional amplifier
  • Control signal: 0-10V or 4-20mA
4. What does the "K4" suffix indicate?​
The "K4" indicates the electrical connection type. Specifically, it means the valve comes with a DIN 43650 standard plug connector (without mating connector) for the proportional solenoid. The "K" series typically refers to the connector configuration, with "K4" being a specific variant in this product family.
5. How does this model differ from the DBEBE series models?​
The DBETR series is a different product family from the DBEBE series. Key differences include:
  • Different series designation (DBETR vs DBEBE)
  • Different pressure setting capabilities (DBETR has 30 bar option, DBEBE typically starts at 80 bar)
  • Potentially different internal design and performance characteristics
  • Different model code structure and component series
  • For exact differences, always consult the specific datasheets for each series
6. What are the installation and maintenance considerations?​
  • Port size: NG6 (ISO 4401 standard)
  • Fluid cleanliness: ISO 4406 class 20/18/15 or cleaner recommended
  • Temperature range: -20°C to +80°C (fluid), -20°C to +70°C (ambient)
  • Sealing material: Typically NBR (nitrile rubber)
  • Requires proper bleeding during commissioning
  • Regular inspection of electrical connections and fluid quality
  • Compatible with standard subplates (ISO 4401-03-02-0-94)
