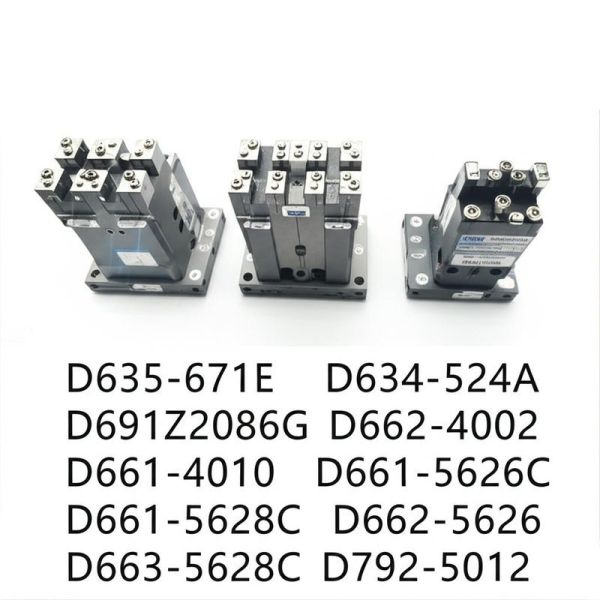

D635-671E D634-524A
D691Z2086G D662-4002
D661-4010 D661-5626C
D661-5628C D792-5012
D663-4008 B97069-061 Construction Machinery Hydraulic System Control Flow MOOG Germany

FAQ:

Frequently Asked Questions (FAQ) about Moog Electro-Hydraulic Servo Valves

1. What is a Moog electro-hydraulic servo valve?

A Moog electro-hydraulic servo valve is a high-precision component that converts electrical signals into hydraulic power output. It controls hydraulic flow and pressure to regulate position, speed, force, or pressure in systems like industrial machinery, aerospace actuators, and turbine controls. Its design typically includes a torque motor, nozzle-flapper pilot stage, and spool valve for accurate performance .

2. What are the key features?

• High precision: Control accuracy up to ~0.1% .

• Fast dynamic response: Responds within milliseconds .

• Programmability: Customizable control algorithms via embedded electronics .

• Robustness: Operates in harsh environments (-20°C to 80°C) and resists contamination .

• Fail-safe function: Automatic shutdown during power loss or failure .

3. What are common failure modes?

• Torque motor issues:

◦ Coil breakage (valve fails to respond) .

◦ Armature sticking or ball head wear (causing instability) .

• Nozzle/flapper blockages: Clogging from oil contamination reduces response and causes system oscillation .

• Spool amplifier problems:

◦ Edge wear (increases leakage and noise) .

◦ Spool sticking due to contaminated or degraded oil .

• Seal aging: Leads to internal/external leakage .

4. How to maintain servo valves?

• Oil quality management: Use recommended fluids (e.g., phosphate ester fire-resistant oil) and maintain cleanliness per NAS 1638 Class 5 standards. Regularly check acidity and resistivity .

• Routine inspections: Test for electrical issues (e.g., coil resistance), clean filters, and check for loose components .

• Pre-startup checks: Ensure oil circulation before powering the valve to prevent clogging .

5. How to troubleshoot unstable operation (e.g., cylinder drift or oscillation)?

• Check servo valve resolution and zero zone stability .

• Inspect for internal leakage or spool wear .

• Verify control system parameters and calibrate zero bias if needed .

6. What if the valve doesn’t move?

• Confirm electrical signals and coil connectivity .

• Check for spool sticking caused by debris in oil .

• Ensure correct startup sequence: oil flow before electrical power .

7. Can Moog servo valves be customized?

Yes. Models like the D636/D637 series support fieldbus interfaces and programmable electronics for application-specific tuning .
