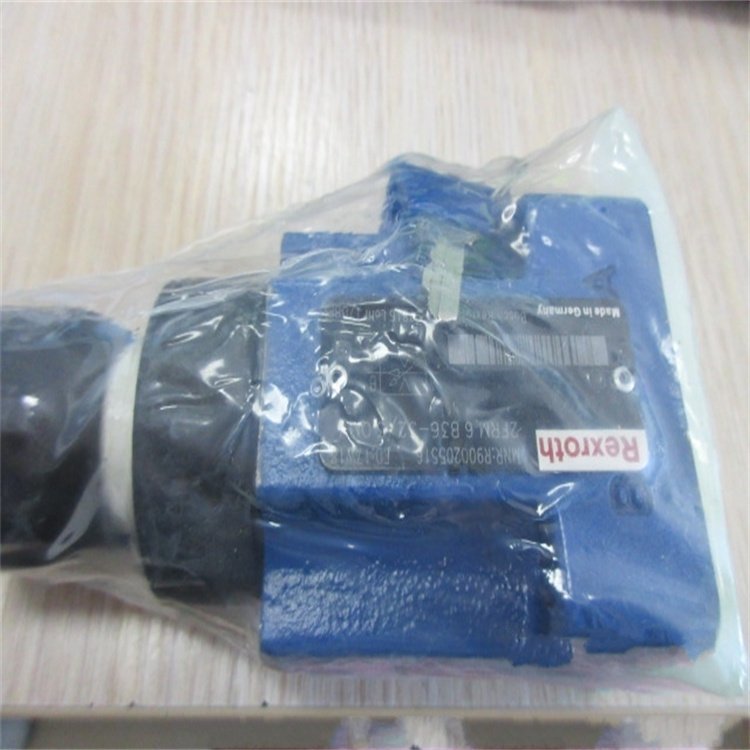

R901508500 2FRM6B76-2X/10QRV-IN001 German Rexroth hydraulic valve
R901508500 2FRM6B76-2X/10QRV-IN001 German Rexroth hydraulic valve
Specifications
Model Number :
R901508500 2FRM6B76-2X/10QRV-IN001
Max. Adjustable Flow :
10 L/min​ (Q range typically 0.2–10 L/min)
Supply Ability :
100
Certification :
ISO
Max. Operating Pressure :
315 bar (ports A & B)
Brand Name :
Rexroth
Component Series :
2X (series 20+, dimensionally interchangeable)
MOQ :
1
Packaging Details :
wooden box
Fluid Temperature Range :
-30 °C to +80 °C (NBR seals)
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Delivery Time :
2 weeks
Place of Origin :
German
Cracking Pressure (Reverse Check) :
approx. 0.5 bar (standard free-return)
Description
R901508500 - 2FRM6B76-2X/10QRV-IN001 German Rexroth Hydraulic Valve
Product Overview

Pressure-compensated 2-way throttle check valve with constant flow regulation despite pressure fluctuations. Features tamper-lockable adjustment and sandwich mounting design.

Technical Specifications
Parameter Value
Full Part Number R901508500 (IN001 = individual inspection suffix)
Base Model 2FRM 6 - B76 - 2X / 10QRV
Valve Type 2-way throttle check valve with pressure compensator (flow control - constant flow despite pressure fluctuations)
Nominal Size (NG) 6 - sandwich mounting per ISO 6263 / NG6 (DIN 24340 Form C)
Function Adjustable orifice + pressure-compensated spool → constant flow A→B; free reverse flow B→A via check valve
Adjustment Type B76 = Rotary knurled knob with scale & tamper-lockable/sealable cap (hand-adjustable; same performance as B36)
Component Series 2X (series 20+, dimensionally interchangeable)
Max. Adjustable Flow 10 L/min (Q range typically 0.2-10 L/min)
Max. Operating Pressure 315 bar (ports A & B)
Cracking Pressure (Reverse Check) approx. 0.5 bar (standard free-return)
Mounting Pattern NG6 sandwich (4× M5 bolts), between directional valve & subplate
Seal Material NBR (standard, code V - for mineral oil HL/HLP, HFC)
Hydraulic Fluid Mineral oil HL, HLP per DIN 51524; HFC (water-glycol); HLPD, HVLP, HVLPD
Fluid Temperature Range -30 °C to +80 °C (NBR seals)
Viscosity Range 10-800 mm²/s
Weight (approx.) 1.24 kg
Body Material Steel / cast iron, zinc-plated
R901508500 2FRM6B76-2X/10QRV-IN001 German Rexroth hydraulic valve
Related Products
Part Number Model
R9002117762FRM6B76-30/3QRV
R9002118402FRM6A36-30/16QRV
R9002119482FRM6B36-30/1.5QJRV
R9002119492FRM6B36-30/32QJRV
R9002120402FRM6B36-30/16QJRV
R9002120692FRM6B36-3X/0.6QJRV
R9002123232FRM6A76-30/10QRV
R9002125862FRM6A36-3X/25QMV
R9002128132FRM6B76-30/0.6QMV
R9002128692FRM6A76-3X/32QRV
R9002129282FRM6SB36-3X/1.5QRV
R9002129352FRM6A76-33/0.6QMV
R9002131512FRM6B76-33/0.6QRV
R9002132962FRM6A76-30/0.2QMV
R9002133782FRM6A76-33/1.5QRV
R9002144822FRM6B76-3X/0.2QRV
R9002147782FRM6A76-30/1.5QMV
R9002148862FRM6A76-3X/6QRV
R9002165022FRM6SB36-30/10QRV
R9002165592FRM6A76-30/16QMV
R9002166282FRM6A36-30/1.5QMV
R9002175372FRM6A76-30/32QMV
R9002176462FRM6A76-30/0.6QRV
R9002179172FRM6A76-30/6QMV
R9002183022FRM6B36-3X/6QJRV
R9002183092FRM6B76-33/0.2QMV
R9002183482FRM6A36-30/16QMV
R9002195182FRM6B36-30/10QJRV
R9002209742FRM6B36-30/16QJMV
R9002210212FRM6B76-3X/16QJRV
R9002211052FRM6SB36-30/0.2QMV
R9002211062FRM6SB36-30/0.6QMV
R9002211072FRM6SB36-30/1.5QMV
R9002211092FRM6SB36-31/3QMV
R9002211172FRM6SB36-3X/6QMV
R9002211212FRM6SB36-31/10QMV
R9002211222FRM6SB36-3X/16QMV
R9002211252FRM6SB36-33/25QMV
R9002211262FRM6SB36-3X/32QMV
R9002211272FRM6SB36-33/0.2QRV
R9002211282FRM6SB36-33/0.6QRV
R9002211302FRM6SB36-3X/3QRV
R9002211352FRM6SB36-33/6QRV
R9002211372FRM6SB36-30/16QRV
R9002211392FRM6SB36-30/25QRV
R9002211582FRM6SB36-30/32QRV
R9002213602FRM6B76-3X/6QJRV
R9002213672FRM6B76-3X/10QJRV
R9002213682FRM6B76-31/25QJRV
R9002213692FRM6B76-3X/32QJRV
R9002229142FRM6B36-31/25QJRV
R9002248412FRM6B36-3X/3QJRV
R9002252342FRM6A36-31/0.2QRV
R9002269062FRM6A76-3X/3QRV
R9002283212FRM6SB76-31/16QRV
R9002413362FRM6SB76-30/10QRV
R9002415252FRM6A36-30/0.6QMV
R9002418472FRM6A36-30/10QJRV
R9002434342FRM6SB76-3X/25QRV
R9002442732FRM6SB76-3X/0.2QRV
R9003498352FRM10-3X/2LV
R9003594662FRM10-3X/5LBV
R9003642032FRM10-3X/35L
R9003715172FRM6A34-2X/6QRV
R9003956262FRM5-3X/1.2QBJV
R9004113782FRM16-3X/100LBJ
R9004131552FRM6B36-2X/10QRV
R9004153152FRM16-30/125LB
R9004202862FRM10-30/50L
R9004202872FRM16-30/100LB
R9004211732FRM6A36-2X/6QMV
R9004232502FRM10-31/10LB
R9004232512FRM10-31/16L
R9004232522FRM10-30/16LB
Frequently Asked Questions
Q1: Is this a simple throttle / needle valve?

No. A needle valve lets flow vary with ΔP. The 2FRM is pressure-compensated - the built-in compensator spool keeps the set flow essentially constant despite load or supply pressure changes (provided ≥~15 bar ΔP across compensator).

Q2: What does "B76 /10QRV" mean?
  • B76 = NG6 sandwich, rotary knurled knob with scale + tamper-lockable / sealable cap
  • /10 = maximum adjustable flow = 10 L/min (also available: /1.5, /3, /6, /16, /25, /32)
  • Q = flow controlled in A→B direction
  • R = free reverse flow B→A via check valve
  • V = NBR seals (standard)
Q3: How do I set the flow?

Loosen the lock ring / seal wire, turn the knurled knob clockwise to increase flow, counterclockwise to decrease. The knob has a relative scale - use a flow meter to correlate to actual L/min. After setting, tighten the lock ring / apply seal wire.

Q4: How is it mounted?

As a sandwich (stackable) valve between a directional control valve and the NG6 subplate (4× M5 bolts). Observe the arrow on the valve body - A→B = controlled/metered flow, B→A = free return.

Q5: Does it work both ways?

No - one direction is pressure-compensated metered flow (A→B), the opposite direction (B→A) is free return through the check valve (no flow control, minimal pressure drop ~0.5 bar). For bidirectional flow control use two 2FRM valves.

Q6: Minimum pressure requirement?

The pressure compensator typically needs min. ~15 bar differential pressure across the compensator to regulate properly. Supply pressure must exceed the highest load pressure + ~15-20 bar + line losses.

Q7: Common faults & causes?
  • Flow varies with load pressure: compensator spool stuck (contamination) - check oil filtration (ISO 4406 18/16/13 or better); or insufficient ΔP across compensator
  • No flow / very low at max knob: valve installed backwards, or compensator/spool jammed
  • Cannot reach set flow / unstable: partially clogged orifice, cold-start high viscosity - flush system
  • Excessive heat: normal for flow controls - P_drop × Q = heat; ensure supply pressure isn't unnecessarily high above load requirement
Q8: What is the difference between B36 and B76?

Both have identical flow characteristics and knob. B76 has a tamper-evident / sealable lock cap for applications where the setting must not be altered after commissioning. B36 has a standard lock setscrew only.

Q9: Fluid & seal compatibility?

NBR seals = mineral oil (HL/HLP) & HFC (water-glycol). For HEES/HETG biodegradable oils or HFD phosphate ester → specify FKM (Viton) seal variant.
