10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
10Ton double Girder Euro Electric wire rope Hoist controlled by VFD
Specifications
Brand Name :
JCYC
Model Number :
ECO
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 pcs/week
Delivery Time :
15 working days
Packaging Details :
Carton
Product :
10Ton double Girder Electric Wire Rope Hoist
Lifting Height :
9m
Warranty :
1 Year
Power source :
Electric
Sling type :
Wire Rope
Lift speed :
0-8M/MIN
Maximum lifting weight :
20t
Description
10Ton double Girder Euro Electric wire rope Hoist
The European-type electric hoist represents a new-generation lifting solution engineered for industrial applications. Featuring imported lifting motors and gear reducers, this hoist integrates a compact design that combines the lifting motor, reducer, drum, and lifting limit switch into a unified system, significantly optimizing installation space requirements.
Advanced modular construction enhances mechanism reliability while effectively reducing maintenance time and operational costs. The hoist delivers higher lifting speeds with multiple reeving configurations to accommodate diverse application needs. The standard trolley traveling mechanism incorporates variable frequency drive (VFD) control, achieving speeds up to 20 m/min for smooth operation with minimal load sway and precise positioning—making it ideal for handling precision equipment and high-value loads.
Key Product Features
  • Modular Design - Compact Structure and Lightweight: The ECO hoist's modular architecture creates a more compact footprint and reduced weight compared to conventional lifting equipment, complemented by a distinctive green housing for modern aesthetics.
  • Low Noise Operation - Enhanced Working Environment: Operating at 65-75 dB (depending on power rating), the ECO hoist generates substantially less noise than traditional models, minimizing workplace disruption.
  • Safe and Reliable Performance - Ensuring Work Quality: With IP55 protection rating for superior dust and water resistance, F-class insulation for electrical safety, and duty cycle up to 40%, this hoist maintains stable performance in demanding conditions.
Cost-Effective Upgrade Solution: The ECO hoist combines advanced technology with high-quality materials to deliver robust load capacity and operational stability. Its plug-and-play design enables direct replacement of traditional CD/MD hoists without structural modifications, substantially reducing retrofit expenses.
Technical Specifications
Capacity (kg) FEM ISO Height (m) Lifting Speed (m/min) Trolley Speed (m/min) Lifting Motor (kw) Trolley Motor (kw)
3200 2m M5 6/9/12 0-5 0-20 3.2 0.4
3200 2m M5 6/9/12 0-8 0-20 4.5 0.4
5000 2m M4 6/9/12/18 0-5 0-20 4.9 0.4
5000 2m M4 6/9/12/18 0-8 0-20 7.5 0.4
10000 2m M5 6/9/12/18 0-5 0-20 9 0.4*2
16000 2m M5 6/9/12/18 0-3.5 0-20 13.5 0.8*2
20000 1Am M4 6/9/12/18 0-3.5 0-20 13.5 0.8*2

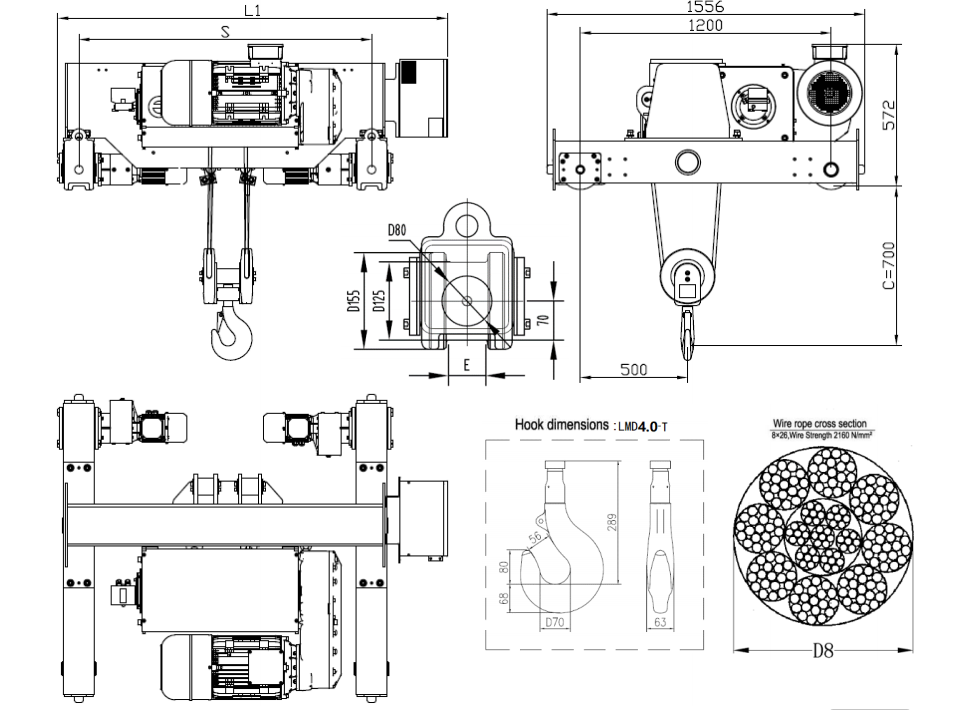

Technical Documentation
