European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
Specifications
Brand Name :
JCYC
Model Number :
SHSL
Certification :
ISO9001,CE
Place of Origin :
CHINA
MOQ :
1Set
Price :
USD6000-USD10000
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
12sets per month
Delivery Time :
4 weeks

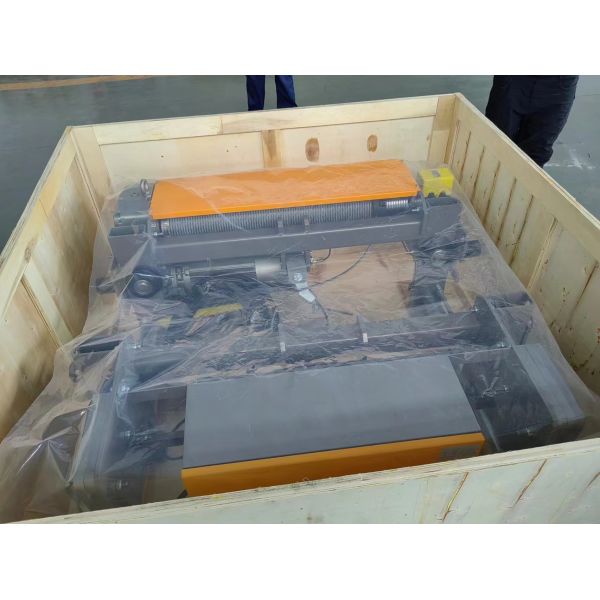

Packaging Details :
Plywood case
Product Name :
Wire Rope Hoist for Bridge Crane
Lifting capacity :
32T
Lifting height :
9-100m
Lifting speed :
Inventer control
Running speed :
5-20m/min
ISO :
M5
Type :
Single Girder
Description
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
Product Introduction

European electric hoist is a popular lifting equipment for material handling. it is compact and lightweight, suitable for use in factories,warehouses, etc. As an ideal hoisting mechanism, it often matches with overhead cranes and gantry cranes. it needs the main beam to support the entire electric hoist and moves along the track. its electric motor provides power source for lifting tasks. Beside these parts, European hoist also has reducer, drum set, hook and electrical control system. There producer reduces the speed of the motor and increases the torque so European hoist could meet the needs of lifting heavy objects.

Trolley drive unit
Trinity of high-performance motor, reduction gearbox and brake.Compact structure,excellent performance.Low energy consumption, low noise and eco-friendly design.Variable frequency control, smooth running, low impact andmeeting requirements of a variety of speed.Asbestos-free brake disc and its normal service life can be upto one million times. No-wear design.Maintenance-free, long servicelife.

Wire rope with high-performance
The imported wire rope of high performance with tensile strengthJp to 2160 N/MM2.The surface with galvanized processing for corrosion preventioneffectively.With good flexibility to ensure wear resistance of the wire ropeand prolong its service life.

Electric cabinet
Rational design, convenient maintenance, decreasing running cost.
Professional and high quality of electrical components, safe and reliable.
Multiple safety protection devices to ensure equipment safe.
Protection grade IP55.
Clear identification to easy for trouble removal.

Key Specifications
ITEM VALUE
Applicable Industries Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Place of Origin China
Power Source Electric
Sling Type Wire Rope/chain/winch/european
Warranty 1 Year
Machinery Test Report Provided
Video outgoing-inspection Provided
Warranty of core components 1 Year
Core Components Motor, Bearing, Gear, Gearbox
Advantage
  • Compact structure, light weight, low wheel pressure and high overall cost performance
  • Save operating costs and be low-carbon and environmentally friendly
  • Selected high-quality accessories, safe and reliable, durable
  • Precise positioning, efficient operation, and enhanced production efficiency
  • Safe and reliable, operation monitoring(optional), maintenance-free
  • Modular design with multiple options to meet the various working conditions of customers
Technical Specifications
Load(t) Class Lifting height (m) Lifting speed (m/s) Rope Reeving Traveling speed (m/s) Wheel load weight (kg)
1.6 M6 6, 9, 12 1.6/10 2/1 2~20 6.1, 6.2, 6.3 300, 335, 370
2.5 M6 6, 9, 12 0.8/5.0 4/1 2~20 9.1, 9.2, 9.3 315, 350, 385
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.5, 11.6, 11.7 335, 370, 405
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 22, 22.1, 22.2 400, 450, 500
8 M6 6, 9, 12 0.8/5.0 4/1 2~20 28, 28.1, 28.2 580, 610, 640
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 34.7, 34.8, 34.9 580, 610, 640
10 M6 6, 9, 12 0.66/4.0 4/1 2~20 34.7, 34.8, 34.9 650, 690, 730
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 43.3, 43.4, 43.5 660, 700, 740
3.2 M5 6, 9, 12 0.8/5.0 4/1 2~20 11.9 510, 525, 540
6.3 M5 6, 9, 12 0.8/5.0 4/1 2~20 20.9 632, 652, 672
10 M5 6, 9, 12 0.8/5.0 4/1 2~20 30.0 871, 896, 921
12.5 M5 6, 9, 12 0.66/4.0 4/1 2~20 40.5 890, 915, 940
16 M5 6, 9, 12 0.66/4.0 4/1 2~20 59.4, 59.7, 60.0 1314, 1348, 1381
20 M5 6, 9, 12 0.5/3.4 4/1 2~20 59.5 1718, 1766, 1814
32 M5 6, 9, 12 0.8/3.3 6/1 2~20 95, 104 2826, 2920, 3091, 3199
Main Components
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
Company Introduction
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
More Products
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
Company Certificate
European Standard 10t 20t Motorized Electrical Monorail Wire Rope Hoist for Bridge Crane
Frequently Asked Questions

Q1. What types of cranes do you offer?

A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling

Q2. How do l know which crane is suitable for my project?

A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.

Q3. How to choose the right crane?

A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.

Q4. What maintenance services do you offer?

A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.

Q5: Can you accept OEM?

A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,

Q6:What are your delivery and installation timelines?

A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.

Q7: Do you offer installation services?

A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
