Specifications
Brand Name :
JCYC
Model Number :
CD1/MD1
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1
Price :
USD500
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Supply Ability :
300SETS/Month
Delivery Time :
2-3weeks
Packaging Details :
Plywood cas
Products Name :
CD1/ MD1 Electric Wire Rope Hoist
Type :
Single /Double Girder
Color :
Red/Yellow/customized
Speed :
Single spped/double speed
MOQ :
1SET
Description

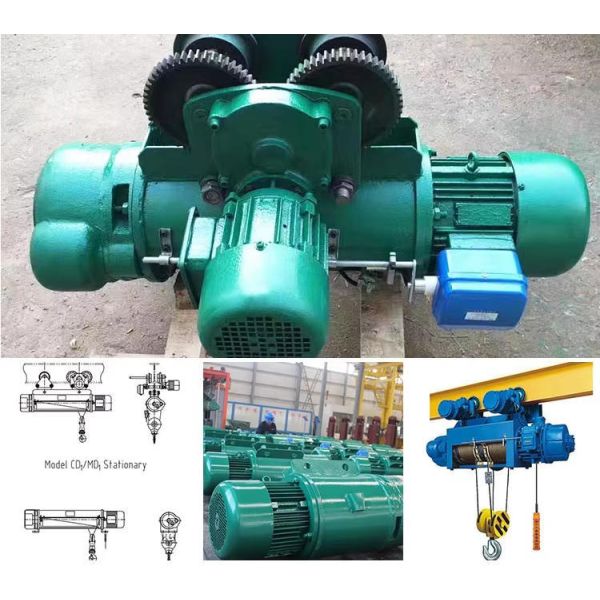

CD1/ MD1 Electric Wire Rope Hoist
CD1/ MD1 Electric Wire Rope Hoist wireless remote control
Product information
  • Capacity: 0.5~32t
  • Lifting Height: 6~30m
  • Lifting Speed: 8, 7, 3.5 m/min
  • Traveling Speed: 20, 30 m/min
  • Duty Class: M3
  • Degree of Protection: IP44/IP54
  • Operating Temperature: -20~+40°C
  • Power Supply: AC 380V 50Hz or customized
  • Crane Control Mode: Pendant control, wireless remote control
Description

The wire rope electric hoist is a compact, lightweight, small-sized lifting equipment with versatile components and convenient operation. It primarily consists of components such as a motor, transmission mechanism, drum, and wire rope. The motor drives the transmission mechanism, causing the drum to rotate and wind up or release the wire rope, thereby achieving the lifting and moving of heavy objects. It can be used independently or in combination with bridge cranes, gantry cranes, jib cranes, and other lifting devices.

Parameter tables
Model
CD1-0.5
CD1-1
CD1-2
CD1-5
CD1-10
Capacity(t)
0.5
1
2
5
10
Standard lift(m)
6-12
45473
6-30
45473
45565
Lifting speed(m/min)
8
8
8
8
7
Running speed(m/min)
20(30)
20(30)
20(30)
20(30)
20(30)
Wire rope type
6*37-4.8-180
6*37-7.4-180
6*37-11-155
6*37-15-200
6*37-17.5-20
I Beam track type
16-28b
16-28b
20a-32c
25a-63c
28a-63c
Motor power/kw
0.8
1.5
3
7.5
13
Motor R.P.M(r/min)
1380
1380
1380
1380
1380
Voltage(V)
380 or customized
Frequency(Hz)
50(60)
50(60)
50(60)
50(60)
50(60)
Phase
3
3
3
3
3
