Specifications
Model Number :
HSH-C
Max. Cap :
9 ton
Certification :
CE
Standard lift height :
1.5 m/ 3m
Place of Origin :
CHINA
Chain Grade :
G80
MOQ :
10 pcs
Delivery Time :
15 working days
Power Source :
Hand Chain
Type :
lever hoist
Price :
Negotiable
Min Capacity :
0.75 ton
Packaging Details :
Carton
Payment Terms :
L/C,T/T,Western Union
Warranty :
One year
Supply Ability :
1000 pcs / week
Short Name :
Pulley block
Brand Name :
JCYC
Product :
Lever Block
Description
Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved

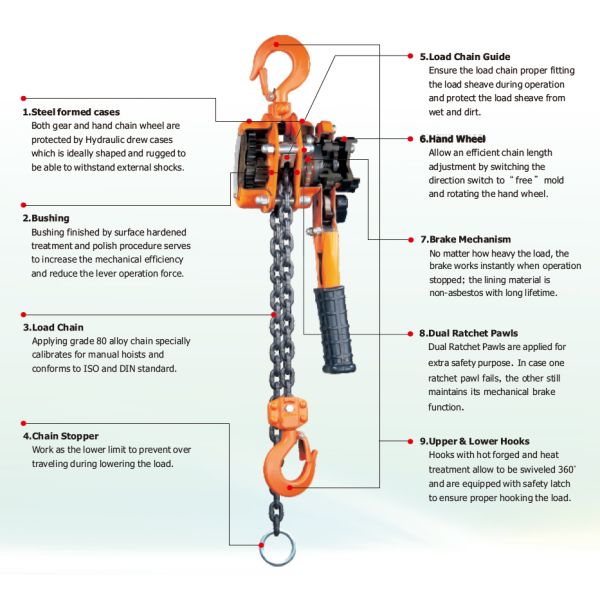

Product Features
  • Premium Alloy Steel Components
    Key load-bearing parts are manufactured from high-quality alloy steel, ensuring superior strength, safety, and long service life.
  • Forged Upper and Lower Hooks
    The upper and lower hook assemblies are forged for enhanced durability and reliable performance under demanding working conditions.
  • Free-Chaining Mechanism
    Equipped with a brake-release clutch system that allows quick adjustment of the hook position under no-load conditions, improving operational efficiency and convenience.
  • Double-Pawl Ratchet System
    The handle features a bidirectional ratchet mechanism, enabling smooth lifting and lowering of loads with enhanced safety and control.
  • Compact and Lightweight Design
    Small in size and light in weight, making it easy to carry, transport, and operate in confined or remote work areas.
Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved

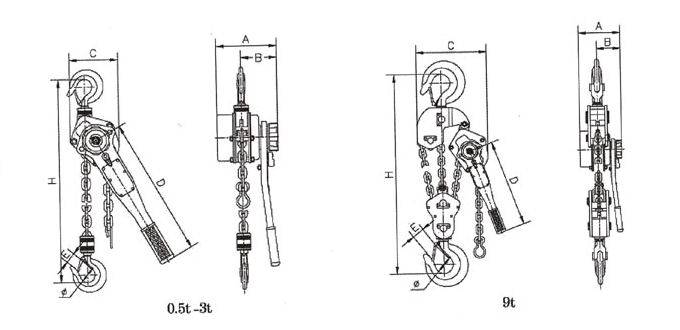

Technical Specifications
Model Capacity (t) Standard Lift (m) Running Headroom Full Load Hand Force (N) Load Chain (mm) N.W (Kg) Packing
0.75T 0.75 1.5 0.937 325 140 6 7 340*125*195
1T 1 1.5 1.25 325 140 6 7.5 340*125*195
1.5T 1.5 1.5 1.875 380 220 8 11 520*160*210
2T 2 1.5 2.5 380 220 8 12 520*160*210
3T 3 1.5 3.75 480 320 10 19 550*185*230
6T 6 1.5 7.5 480 320 10 21 550*185*230
9T 9 1.5 11.25 690 350 10 42 550*185*230
Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved Industrial Lever Block Ratchet Lever Hoist with G80 Load Chain CE Approved
