JK 10 Ton electric winch is engineered for demanding industrial applications, including hoisting, pulling, and loading/unloading heavy materials. Ideal for mounting and dismounting large concrete structures, steel frameworks, and machinery equipment, this winch also serves as a reliable lifting mechanism for various hoisting systems.

• Orderly-arranged steel wire ropes for safe operation
• Smooth transmission system ensuring reliable performance
• Convenient maintenance design for reduced downtime
• Customizable configurations to meet specific project requirements

This electric winch is extensively used in bridge construction, port development, wharf building, shipyard operations, and various large-scale industrial projects requiring heavy lifting capabilities.

• Loading capacity: 0.5-200 tons
• Rope capacity: 10-2000 meters
• Working speed: 30-35 m/min (single or dual speed options)
• Power supply: 220-690V, 50/60Hz, 3 Phase

• Electric Motor: IP44-protected for general engineering applications
• Steel Rope: Available in wire rope or synthetic rope with customizable length and diameter

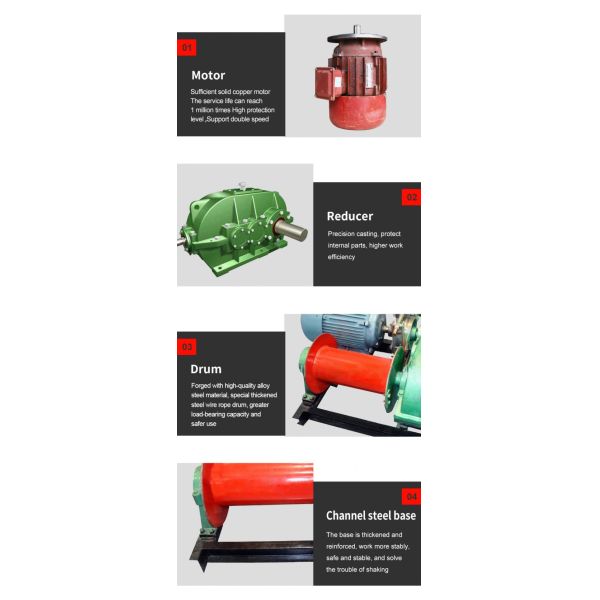

• Drum: Cylindrical design for efficient rope storage and winding operations
• Transmission System: Options include worm gearbox, spur gearbox, and planetary gearbox
• Brake System: Available with motor brake, transmission brake, or drum brake
• Control System: Standard control box with up/down push buttons and emergency stop; remote control available

To provide an accurate quotation, please provide the following information:

• Primary purpose of the winch (lifting or pulling)
• Intended application environment (construction, mining, or marine)
• Required capacity
• Rope volume specifications
• Required rope speed
• Voltage requirements
• Any special requests (dual speed, additional equipment)

Detailed specifications ensure the most accurate pricing and product recommendations.
