1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
Specifications
Brand Name :
JCYC
Model Number :
PA
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
$50-$100
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Name :
Mini Electric Wire Rope Hoist
Maximum Lifting Weight: :
100kg to 1200kg
Lifting Height :
6/12m or at reuqest
Lift Speed :
4/8m/min
Motor :
Copper
Power supply :
110/120/220/230/240V single phase
Description
100kg to 1200kg Portable Fulcrum Mini Electric Wire Rope Hoist
Description

Mini Electric Hoists have fix type and run type. They are suitable for all occasions, and can lift the cargo which is less than 1000 kgs, especially for high-rise building to lift heavy items from downstairs. This kind of hoists are simple structure, easy installation, small size and single phase power as a power source.

Mini electric hoist as a new electric hoist is widely used in machinery manufacturing, electronics, automotive,shipbuilding,workpiece assembly, high-tech industral zone and other modern industrial production line, assembly line,logistics transportation and other occasions. For the warehouse, docks, ingredients,hanging baskets and small workplace with narrow space to use the mecro electric hoists, can be show its advantages. It is the best supporting products in fixed type jib crane and wall type jib crane. Mecro electric hoist have good appearance, reasonable structure, easy installation,low noise, safe and reliable. So they are widely used in factories, workshops, homes, warhouses, hotel, shopping malls and decoration, and other places.

Protect Function:
*It is matched with brennschluss stopper, insure the hoist moving safety, long working life and reliable. And also it have head punch protection device.

1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min

Parameters
Model Method of Use Rated Volt (v) Input Power (w) Rated Capacity (kg) Lifting Speed (m/min) Lifting Height (m) Qty/CTN PCS Packing Size (cm) G.W/N.W (kg)
PA200B Single-Hook AC 220/230V 50/60Hz 480 100 10 12 2 38×32×25 22.5/22
Double-Hook 200 5 6
PA250B Single-Hook 510 125 10 12 23/22
Double-Hook 250 5 6
PA300B Single-Hook 600 150 10 12 23.5/23
Double-Hook 300 5 6
PA400B Single-Hook 950 200 10 12 45×34×27 33/32
Double-Hook 400 5 6
PA500B Single-Hook 1020 250 10 12 33.5/32.5
Double-Hook 500 5 6
PA600B Single-Hook 1200 300 10 12 35/34
Double-Hook 600 5 6
PA800B Single-Hook 1300 400 8 12 38/37
Double-Hook 800 4 6
PA1000B Single-Hook 1600 500 8 12 1 54×25×32 32/31
Double-Hook 1000 4 6

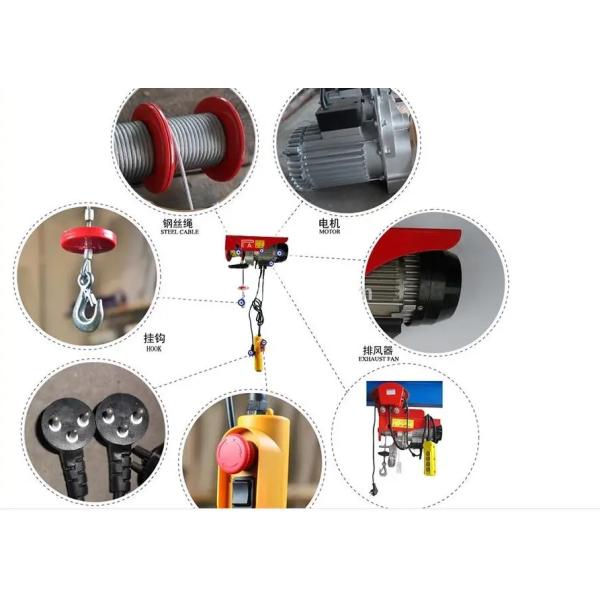

Product show

1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min

1200kg Lifting Fulcrum Electric Wire Rope Hoist 8m/Min
