1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
Specifications
Brand Name :
JCYC
Model Number :
HSZ
MOQ :
1
Price :
$19.8-$259/PC
Payment Terms :
T/T
Supply Ability :
3000pcs/mouth
Delivery Time :
3-7workdays
Packaging Details :
cartons with plywood
Certification :
CE ISO
Place of Origin :
China
Product name :
Chain Block
Capacity :
0.5-20ton
Control Method :
manual control
Chain material :
G80 chain
Limit Switch :
Including
Lifting height :
3-18m
OEM :
accept
Warranty :
1 Year
Description
1ton 3m Manual Chain Block

The manual chain hoist is a reliable and easy-to-use lifting tool, widely applied in factories, warehouses, construction sites, and maintenance work. It is designed for safe, durable, and efficient manual lifting operations.

Key Features & Advantages

  • Quenched Manganese Steel Chain
    Made of heat-treated manganese steel, the load chain is strong, wear-resistant, and allows 360° rotation for flexible operation.
  • Heavy-Duty Large Nut Design
    The hook frame is secured with a large nut, ensuring high reliability and long service life.
  • Dual Guide Wheel System
    Dual guide wheels effectively reduce chain jamming and ensure smoother lifting and lowering.
  • G80 Grade Load Chain
    High-strength quenched alloy steel chain with excellent tensile strength, providing enhanced safety and load security.
  • Alloy Steel Housing
    The hoist body is made of high-quality alloy steel, offering a solid structure, strong impact resistance, and excellent durability.

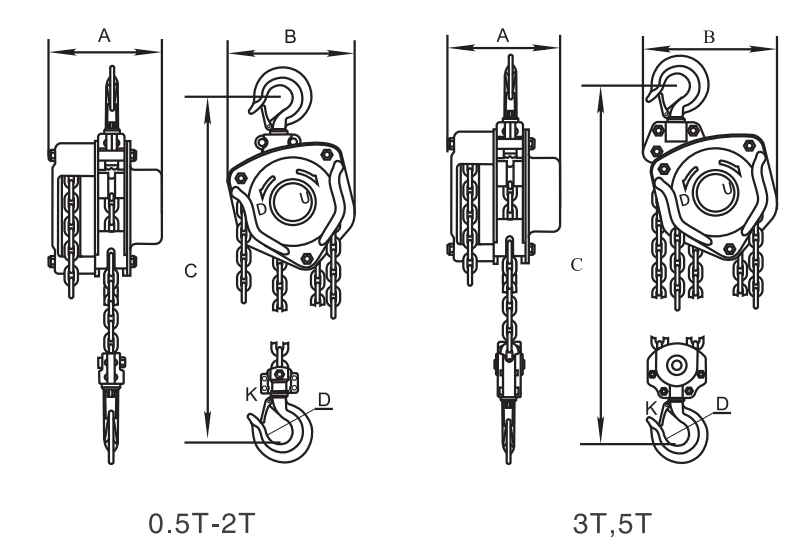

Technical Specifications

1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain

Capacity ton Lifting height m Running test load KN

Effort required to lift rated load

N

 Strands of load chain

Diameter of load chain

mm

Net weight

kg/3M
0.5t 3-18 7.5 221 1 6 9
1t 3-18 15 304 1 6 12
1.5t 3-18 22.5 343 1 8 19
2t 3-18 30 410 2 6 19
3t 3-18 45 343 2 8 27
5t 3-18 75 414 2 10 42
10t 3-18 150 414 4 10 83
20t 3-18 300 414*2 8 10 193

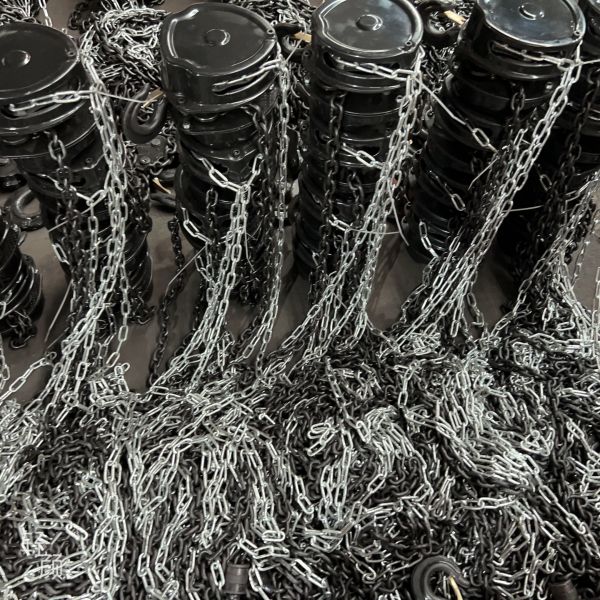

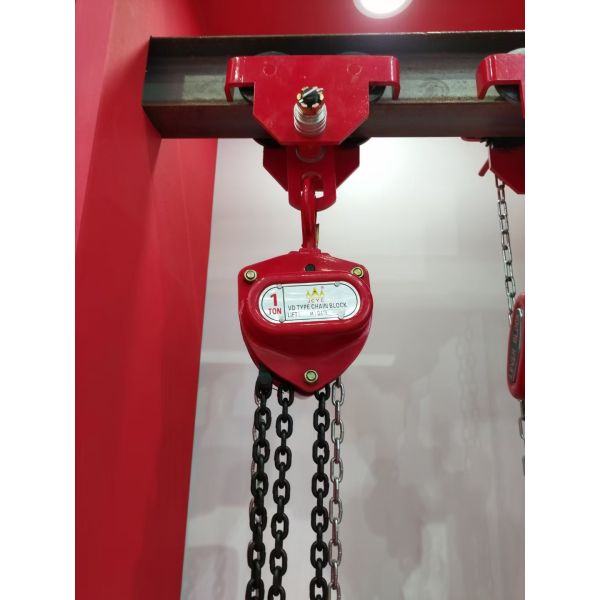

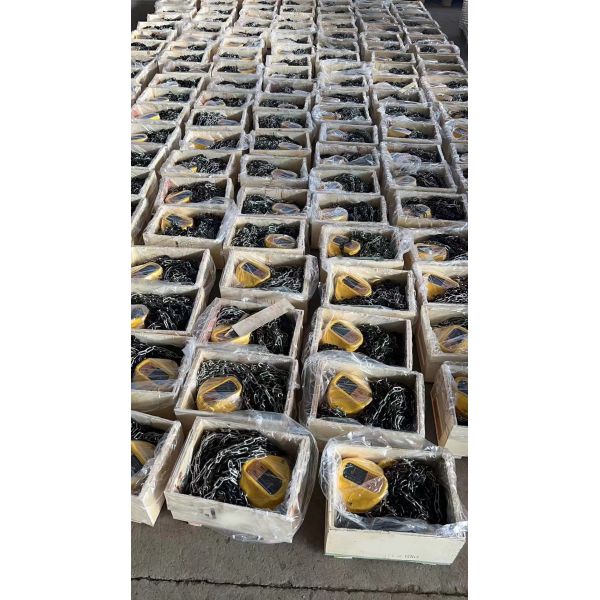

Product Images

1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain

1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain

1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain

Company Profile
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
Exhibition Showcase
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
1ton 3m Manual Chain Block Wear-Resistant Steel Construction With G80 Chain
