Explosion Proof Chain Hoist
Explosion Proof Chain Hoist
Specifications
Feature :
Explosion proof
R.P.M :
1440 r/min
Running speed :
10/20 m/min
Voltage :
220v-440v 50/60hz 3phase
Capacity :
1-35 ton
Lifting speed :
0.7-6.8 m/min
Brand Name :
JCYC / OEM
Model Number :
EP, SY-EP
Certification :
CNEX/CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,D/A,D/P,MoneyGram
Supply Ability :
900 pieces per month
Delivery Time :
15 workdays
Packaging Details :
plywood cases
Product name :
Explosion Proof Electric Chain Hoist
Description
Explosion Proof Electric Chain Hoist
1. Product Profile:

EP Model Explosion-proof Electric Chain Hoist. It completely solved sparkers problem and widely used in special industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is three phase AC 380 V 50 Hz, customization is ok.

2. Description:
  • Grade: Ex d II B T4 Gb.
  • Insulation of motor: F Class.
  • High quality and wide adaptation.
  • Excellent performance.
  • 1 year warranty
  • Sample, OEM and ODM are all available.
3. Advantages:
  • The main parts of it adopt high quality steel product to ensure durability.
  • Special specifications and marks can be made according to customers' requirements.
  • Adapts to environment that has explosive gas formed by inflammable gas, steam and sir, etc
  • The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
  • Explosion-proof electric chain hoist.
4. Parameter:
Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor I-Beam(mm)
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
EP1 1 6.8 10/20 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 220-440V 50/60HZ 3Phase 80-160
EP2-1 2 6.8 10/20 3.0 1440 0.4 1440 82-178
EP2-2 2 3.4 10/20 1.5 1440 0.4 1440 82-178
EP3-1 3 5.4 10/20 3.0 1440 0.4 1440 100-178
EP3-2 3 3.4 10/20 3.0 1440 0.4 1440 100-180
EP5-2 5 2.7 10/20 3.0 1440 0.75 1440 110-180
EP10-4 10 2.8 10/20 3.0*2 1440 0.75*2 1440 150-220
EP15-6 15 1.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP20-8 20 1.4 10/20 3.0*2 1440 0.75*2 1440 150-220
EP25-10 25 1.1 10/20 3.0*2 1440 0.75*2 1440 150-220
EP30-12 30 0.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP35-16 35 0.7 10/20 3.0*2 1440 0.75*2 1440 150-220
6. Warm tips:

In order to save cost and time for you,we need your provide below information:

  1. Which kinds of chain hoist do you need?
  2. FOB or CIF price?(If CIF price,tell us your destination )
  3. Quantity?(pieces)
  4. Lifting capacity?(ton)
  5. Lifting height?(m)
  6. Working voltage?(V,HZ,Phase)
  7. Working environment?
  8. How many hours the hoist works one day?
  9. Any other requirement do you need?
7. Product show:

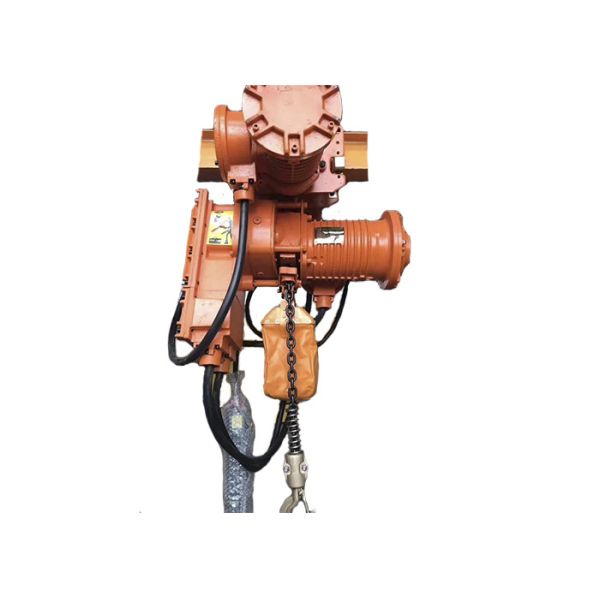

Explosion Proof Chain Hoist
