10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
Specifications
Brand Name :
JCYC
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
$1998-$8000/pc
Payment Terms :
T/T,,Western Union,L/C
Supply Ability :
1000pcs/year
Delivery Time :
7-15 workdays
Model Number :
LB
Packaging Details :
WOODEN CASE AND OTHERS
Product Name :
Single Girder Overhead Crane
Crane feature :
tight dimension, low building headroom, light dead weight
Work Duty :
A5 A6
Girder Type :
single girder
Working Temperature :
-20~40℃
Power supply :
380/415/440V
span :
7.5-25.5m
max capacity :
100ton
Description

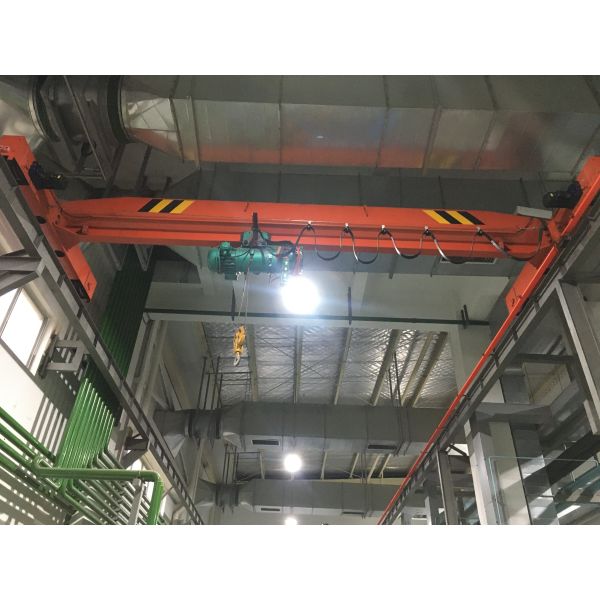

Electric single-girder Overhead cranes

Electric single-girder Overhead cranes can be equipped with a variety of wire rope hoists and chain hoists to meet different needs, improving productivity. The advanced optimisation of the structural design of the main beam gives the electric single-girder crane the highest stability under low dead weight and stable and accurate positioning braking, ideal for light load and short span applications.

Key Advantages & Safety Features

  • Lightweight and compact design: Simple structure with low self-weight, reducing building load requirements.
  • Cost-effective: Lower manufacturing, installation, and maintenance costs compared to double girder cranes.
  • Easy installation and maintenance: Modular design allows quick installation and convenient servicing.
  • Smooth and stable operation: Equipped with high-quality electric hoists for precise lifting and traveling.
  • Flexible configuration: Can be customized for different spans, lifting heights, and capacities.
  • Energy efficient: Lower power consumption due to optimized structural and drive design.
  • Wide application range: Suitable for factories, warehouses, logistics centers, and light industrial environments.
  • Safety and reliability: Fitted with safety devices such as overload protection, limit switches, and emergency stop systems.

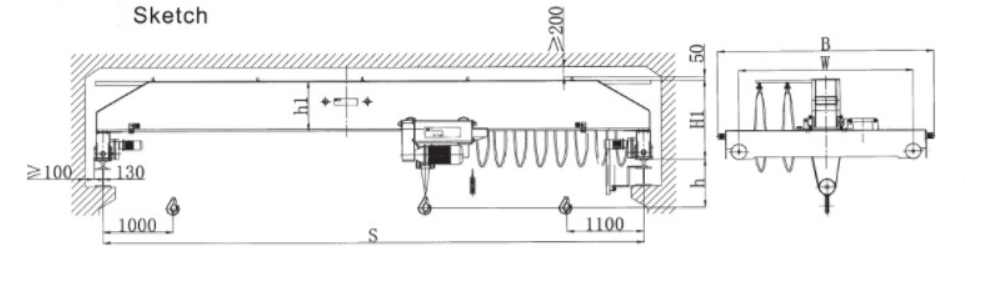

Technical Specifications

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

Capacity
(kg)		 Work Duty
(FEM)		 Work Duty
(ISO/GB)		 Lifting height
(m)		 Lifting speed
(m/min)		 Trolley speed
(m/min)		 H Size
(mm)		 C Size
(mm)
1000 4m M7 6/9/12/18 0.8/5.0 5~20 245 385
1250 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
1600 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
2000 2m M5 6/9/12/18 0.8/5.0 5~20 245 385
2500 3m M6 6/9/12/18 0.8/5.0 5~20 245 385
3200 2m M5 6/9/12/18 0.8/5.0 5~20 245 385
5000 2m M5 6/9/12/18 0.8/5.0 5~20 266 495
6300 1Am M4 6/9/12/18 0.8/5.0 5~20 266 495
8000 1Am M4 6/9/12/18 1.3/8.0 5~20 296 792
10000 1Am M4 6/9/12/18 1.0/6.3 5~20 296 792
12500 1Am M4 6/9/12/18 0.8/5.0 5~20 296 792

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

Manufacturer Profile

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span

Industry Exhibitions & Global Presence

10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span 10t 20ton Travelling Single Girder Overhead Crane A6 Duty With 10-25m Span
