Specifications
Brand Name :
JCYC
Model Number :
AML
Certification :
CE ISO
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
200 PCS/WEEK
Delivery Time :
15 WORKING DAYS

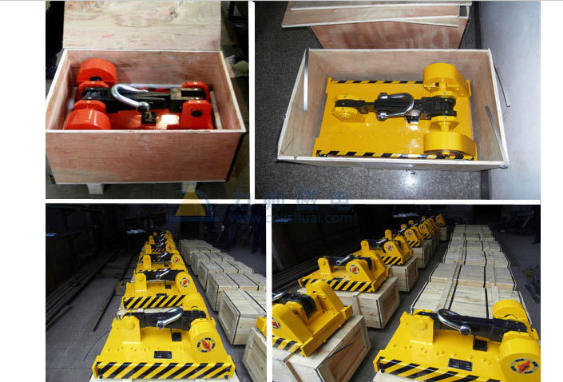

Packaging Details :
Plywood case
Product Name :
Automatic Permanent Magnetic Lifter
Color :
Alternative
Material :
Magnetic Steel
Max Capacity :
5 ton
Application :
Steel plates
Operation method :
Automatic
Description

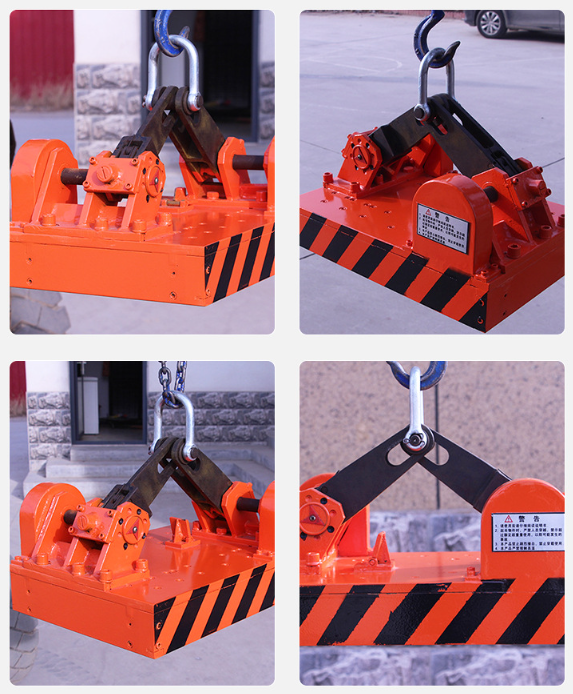

Automatic Permanent Magnetic Lifter

The Automatic Permanent Magnetic Lifter is widely used in shipyards, steel structure factories, warehouses, workshops, cargo yards, and other environments where it works with various lifting equipment. It is designed for lifting sheet-like ferromagnetic materials or workpieces, and can be used individually or in combination with other units.

Features and Advantages

  1. Lightweight and Easy Operation:
    The automatic permanent magnetic lifter is lightweight, easy to operate, with strong holding power, low energy consumption, and reliable safety.

  2. Flexible Usage:
    It can be used individually or in combination to lift large and long ferromagnetic workpieces.

  3. High Safety Factor:
    The safety factor of the LiShuai Automatic Permanent Magnetic Lifter is up to 3.5 times its rated lifting capacity. It features a single-side transmission mechanism that prevents magnetic pole misalignment.

  4. Superior Magnetism:
    The sides of the lifter are constructed from solid stainless steel, providing greater and more concentrated magnetic force. Each set of magnets can be individually removed for easier maintenance.

  5. Enhanced Suction and Durability:
    The base plate is designed with a special method to enhance suction force. The lifter uses high-performance permanent magnetic materials, ensuring strong suction with evenly distributed magnetic force.

Parameters

Automatic Permanent Magnetic Lifter 1 ton to 5 ton Operation temperature 80℃

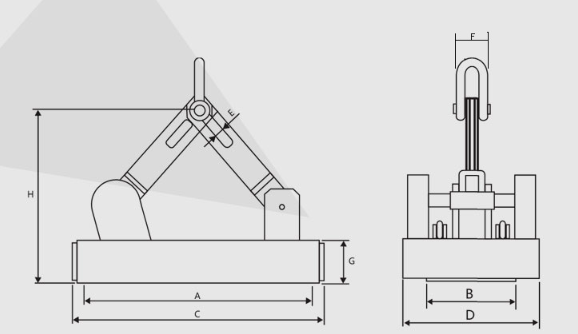

Model Rated lifting
strength		 Max pull-off
strength		 A B C D E G H Operation temperature N.W

kgf kgf






℃ Kg
AML1b 1000 4000 685 235 770 410 28 102 415 ＜80 200
AML1h 1000 4000 596 285 685 450 28 104 410 ＜80 175
AML1.5 1500 5500 760 285 845 450 28 104 440 ＜80 245
AML2b 2000 7000 760 328 845 500 28 104 440 ＜80 285
AML2h 3000 7000 672 360 758 540 28 112 420 ＜80 265
AML3b 3000 10500 862 406 948 585 36 112 480 ＜80 380
AML3h 3000 10500 786 358 872 545 36 124 480 ＜80 360
AML5b 5000 15000 1016 424 1100 610 62 124 480 ＜80 490

Automatic Permanent Magnetic Lifter 1 ton to 5 ton Operation temperature 80℃

Automatic Permanent Magnetic Lifter 1 ton to 5 ton Operation temperature 80℃

Automatic Permanent Magnetic Lifter 1 ton to 5 ton Operation temperature 80℃
