Specifications
Brand Name :
JCYC
Model Number :
HQ
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
1999
Payment Terms :
L/C,T/T
Supply Ability :
30 pcs / week
Delivery Time :
3 working days
Packaging Details :
Plywood
Product :
5ton Explosion Proof Chain Hoist
Warranty :
1 Year
Power source :
air
Sling type :
Chain
Lift speed :
5m/min
Maximum lifting weight :
20t
Maximum lifting height :
30m
Atmospheric pressure :
0.6Mpa
Description
5-Ton Explosion Proof Chain Hoist with High Efficiency Continuous Operation
The 5-ton explosion-proof chain pneumatic air hoist represents one of the most ideal lifting solutions globally, widely adopted in industrially developed countries. This advanced lifting equipment enhances safety, improves operational efficiency, and reduces operating costs in demanding industrial settings.
Working Principle & Core Technology
Air hoists operate by converting compressed air pressure into mechanical energy to lift loads. Compared to electric hoists, they offer significant advantages, particularly in hazardous and demanding environments where safety and reliability are paramount.
Key Advantages & Safety Features
  • Explosion-Proof & Intrinsically Safe: No electric sparks generated, completely eliminating explosion risks. Meets Hazardous Area Class I requirements including IIC gas group, T5 and below.
  • High Efficiency & Continuous Operation: Suitable for continuous operation with 100% duty cycle without overheating concerns.
  • Superior Environmental Resistance: Highly resistant to acid, alkali, steam, high humidity, and heavy dust conditions.
  • Compact & Lightweight Design: Weighs only 1/3 to 1/8 of equivalent capacity electric hoists.
  • Precise Positioning Control: Pull-rod control enables centimetre-level positioning with zero impact for accurate load placement.
  • Clean & Eco-Friendly Operation: Internal lubrication system prevents air pollution.
  • Reliable & Low Maintenance: Robust structural design ensures stable performance and minimal maintenance requirements.
  • Enhanced Safety Protection: Built-in air protection prevents sudden load drops during air supply interruptions.
Technical Specifications
Model Unit HQ1-2 HQ2-2 HQ3-1 HQ5-2 HQ8-2 HQ10-2 HQ12-2
Atmospheric pressure Mpa 0.6 0.6 0.4 0.6 0.4 0.6 0.4
Capacity Tons 1 2 3 5 8 10 12
Chain numbers Numbers 2 2 1 2 2 2 2
Motor Power KW 1.0 1.0 1.8 3.5 1.5 2 1.8
Lifting height M Standard lifting height is 3m
Full load lifting speed m/min 3.6 2.7 2.5 5 1.2 1.5 1
No load lifting speed m/min 7 5.5 6 10 1.2 2.8 1
Full load descent speed m3/min 8 7 7.5 10.5 2.5 3.2 2.8
Full load air consumption - Lifting m3/min 1.2 1.2 2 4 1.5 2.6 2
Full load air consumption - Descent m3/min 1.5 1.5 3.5 5.5 2.2 3.6 2
Standard weight kg 32 38 86 79 115 115 119
Noise at full load - Lifting dB 74 78 74 78 74 78 74
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation

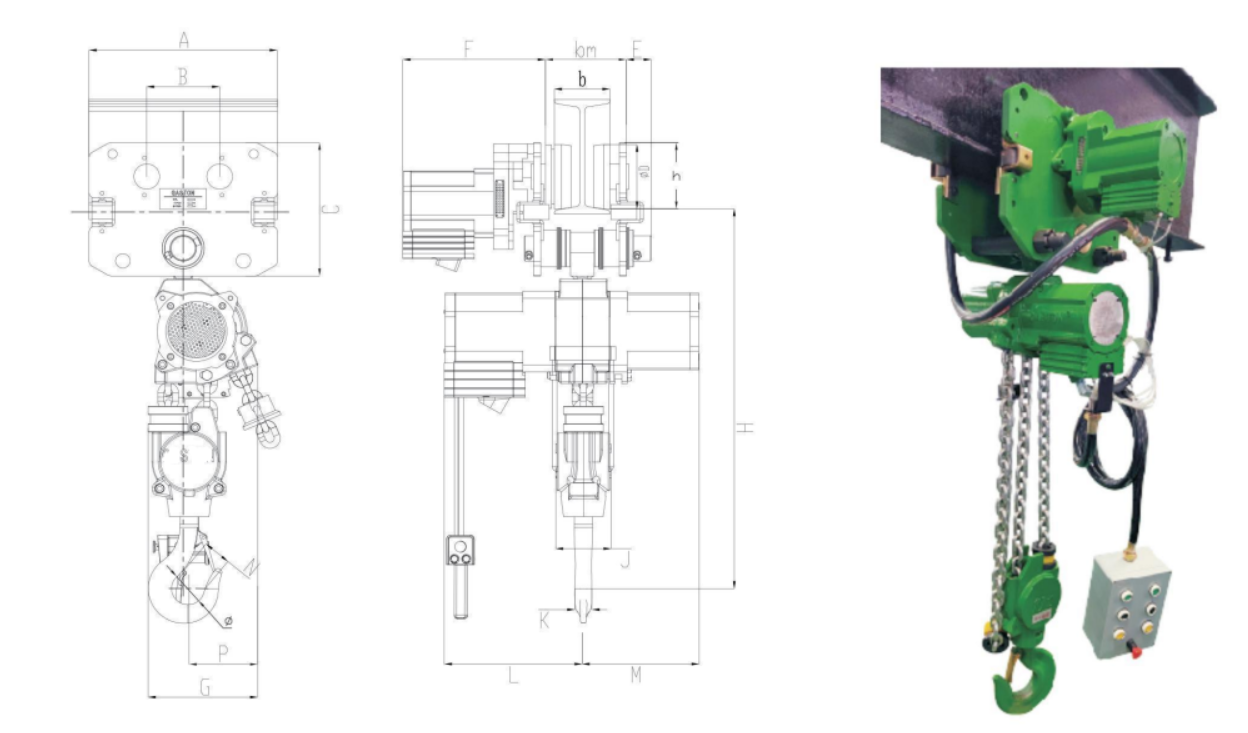

Technical Specifications Overview
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation

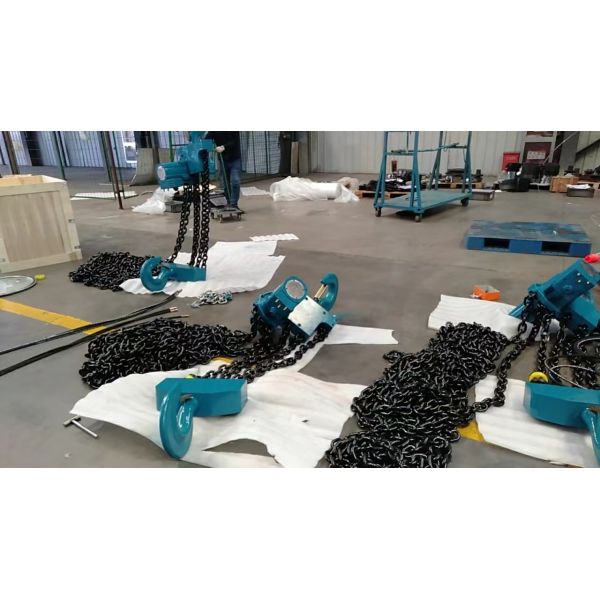

Industrial Operation Environment
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation

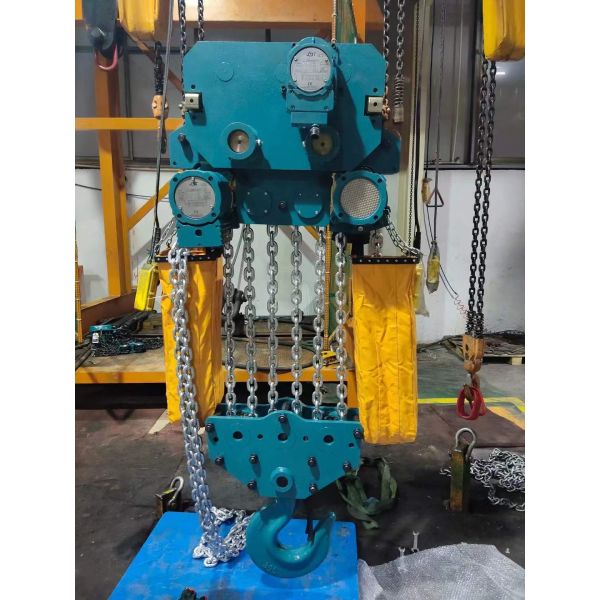

Chain Mechanism Detail
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation

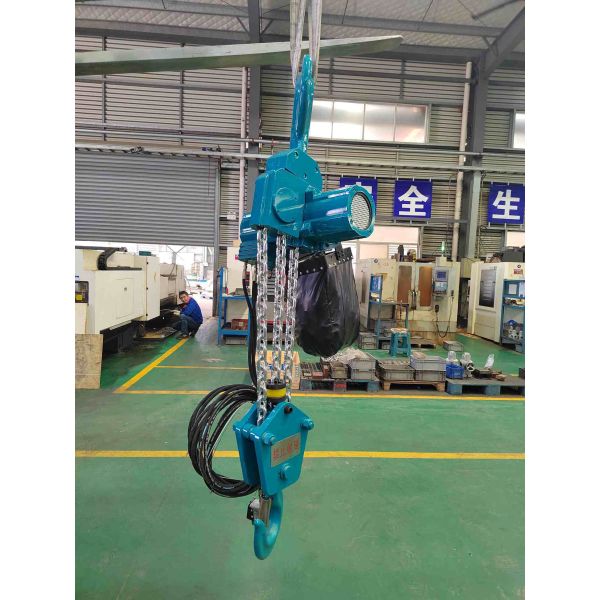

Installation Configuration
Manufacturer Profile
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation
Industry Exhibitions & Global Presence
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation
Industry Exhibition Booth
5ton Explosion Proof Chain Hoist With High Efficiency Continuous Operation
Trade Show Participation
