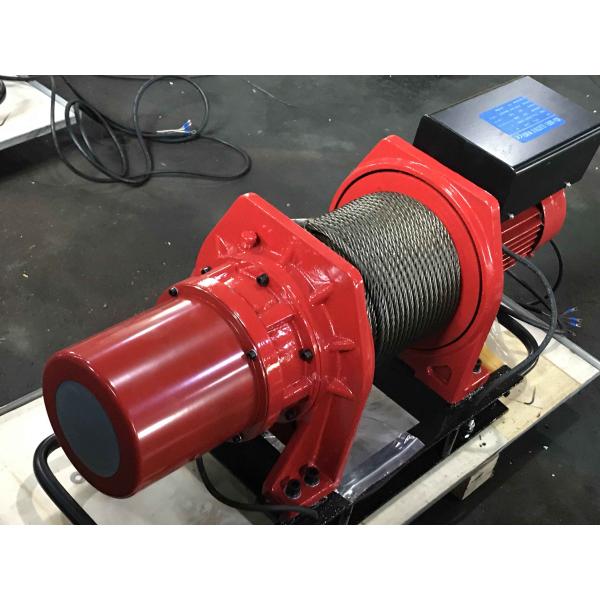

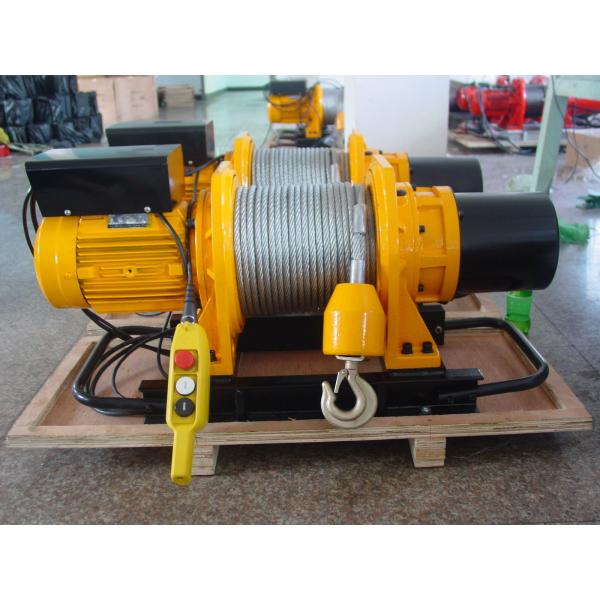

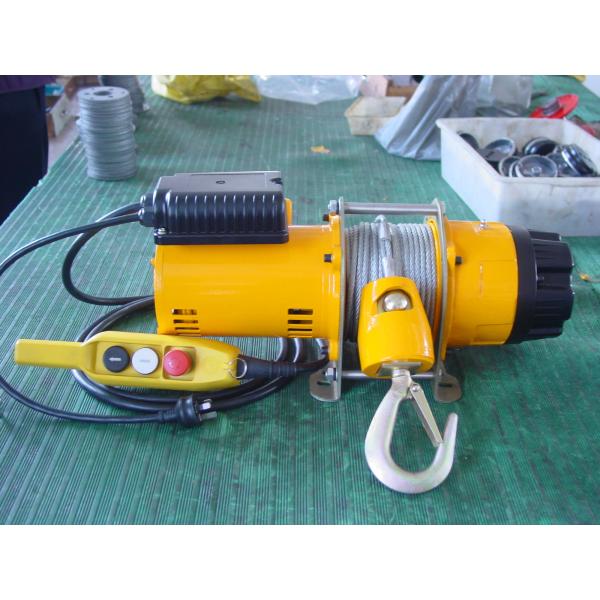

5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
Specifications
Driven Operation Type :
remote control
Max Lifting Height :
30-200M
Motor :
15*4hp
Max. Cap. :
10TON
Colour :
customized
Rope Capacity :
can customized
Operating Temperature :
-25-40℃
Power Source :
Electric
Product :
Electric Compact Industrial Wire Rope Winch
Cable Rated Speed :
8-12 m/min
Brand Name :
JCYC
Model Number :
KDJ
Certification :
CE
Place of Origin :
CHINA
MOQ :
2 pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 pcs/week
Delivery Time :
15 working days
Packaging Details :
Carton
Description
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
5TON Electric Compact Industrial Wire Rope Winch
Product Features
  • Reliable Electromagnetic Brake: The KDJ Mini Electric Winch is equipped with a DC electromagnetic brake and high-quality brake linings for dependable braking performance and extended service life. In the event of a power failure, the brake engages automatically to securely hold the load, ensuring safe and reliable operation.
  • High-Performance Hoisting Motor: The winch is powered by an E-Class insulated motor featuring high starting torque and low rotational inertia, making it suitable for frequent operation and continuous industrial use.
  • Integrated Mounting Frame: The KDJ Mini Electric Winch features a one-piece stamped steel mounting frame manufactured from high-quality steel plate. The robust integrated design allows flexible installation on suspension brackets, elevators, and steel beams.
5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase 5TON Electric Compact Industrial Wire Rope Winch 380V Three Phase
Technical Specifications
Model Load Rated (kg) Speed (m/min) Motor (hp×p) Voltage (V) Frequency (Hz) Lifting Height (m) Steel Cable (mm×m) N.W. (kg) Duty Cycle
KDJ-200E 200 10-15
12-18		 0.8X4 1-phase
120v,220v		 50/60 29 6×30 36
KDJ-250E 250 10-15
12-18		 1.0X4 50/60 29 6X30 40 25% ED (150 times/h max. starting frequency)
KDJ-300E 300 10-15
12-18		 1.5X4 230v,240V 50/60 29 7X30 49
KDJ-300E1 300 10-15 1.5X4 50 29 7X30 48
KDJ-500E1 500 12-18 3.0X4 3-phase 380v 50 58 9X60 136
KDJ-750E1 750 12-18 4.0X4 415v 50 58 9X60 149
KDJ-1000E1 1000 12-18 5.5X4 50 58 11×60 156
KDJ-2200E1 2200 7-12.5 7.5X4 50 97 16X100 450 25% ED (150 times/h max. starting frequency)
KDJ-3200E1 3200 6.3-8.8 7.5X6 3-phase 50 97 18X100 500
KDJ-5000E1 5000 8.0-12 15X4 380v 50 192 22.4×200 1500
KDJ-10000E1 10000 7-11 30×4 415v 50 235 32×250 3000
