Specifications
Brand Name :
JCYC
Model Number :
GL
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50 pcs / week
Delivery Time :
5 working days
Packaging Details :
Carton / Plywood Cases
Product :
5ton end carriage for Overhead Crane
Min. Cap. :
3.2 ton
Max. Cap. :
50 ton
Color :
As per request
Lift Height :
3/6/9/12M As per request
Travel speed :
20/30m/min
Span :
3/6/9/12M As per request
Power :
0.3/0.4/0.75kw
Description
5 Ton Single Girder Overhead Bridge Crane Kit
Complete single girder end carriage assembly with integrated drive system, specially designed for overhead crane applications.
Selection Guide
Capacity-Based Wheel Selection
  • Below 3 tons: LD150 wheels or LD200 wheels
  • 3-10 tons: LD300 wheels
Runway Type Wheel Selection
For I-Beams (14#, 16#, 18#, 20#):
  • LD150 wheels
  • Wheel groove width: 110 mm / 130 mm
For Rail Tracks (12#, 15#, 18#):
  • LD200 wheels
  • Wheel groove width: 60 mm
Example Selection
5-Ton Overhead Crane with 6 m Lifting Height
For crane capacities above 3 tons, LD300 wheels are recommended to ensure stable operation and sufficient load-bearing capacity.

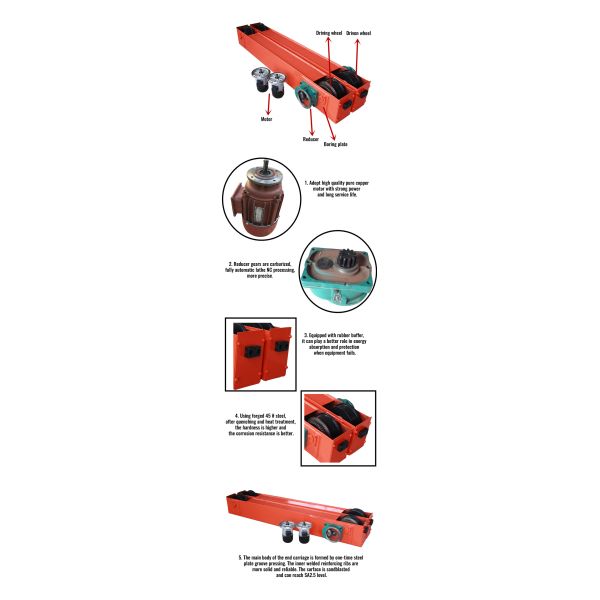

End Carriage Assembly Includes
  • 2 × End Carriages
  • 4 × Wheels
  • 2 × Drive Motors
  • 2 × Gear Reducers
  • 4 × Buffer Blocks
End Carriage Length Selection
Crane Span Recommended End Carriage Length
≤ 5 m 1.2 m
5-7.5 m 1.5 m
7.5-12 m 2.0 m
Key Features & Advantages
Premium Steel Construction
Manufactured from high-quality steel for excellent structural strength, durability, and long service life.
High-Performance Bearings
Ensure smooth operation, low noise levels, and reduced wear during continuous use.
Reliable Box-Type Structure
Steel plate box-beam design provides excellent rigidity and resistance to deformation.
Carburized Gear Transmission
Offers high starting torque, stable transmission performance, and smooth travel operation.
Copper-Winding Motors
Provide smooth starting, strong power output, energy efficiency, and extended service life.
Customized Solutions
End carriage configurations can be customized according to crane capacity, span, runway type, and customer-specific requirements.
Technical Specifications
5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings

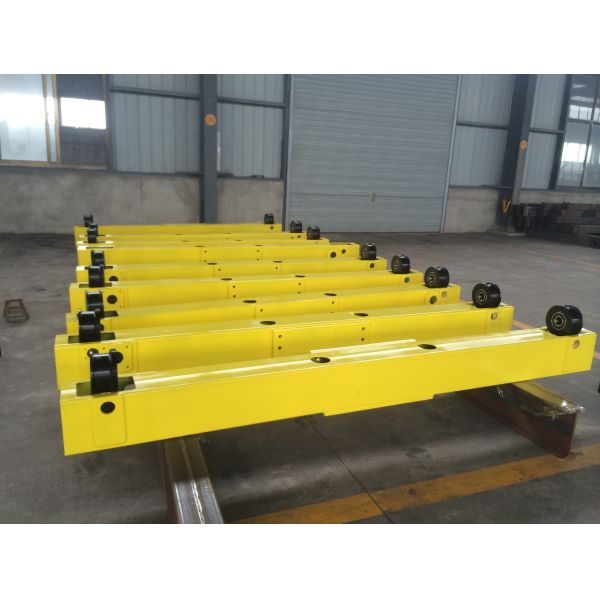

Product Images
5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings 5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings 5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings 5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings
Manufacturer Profile
5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings
Industry Exhibitions & Global Presence
5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings 5 Ton Single Girder End Carriage for Overhead Crane with Customizable Lift Height and High-Performance Bearings
