PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
Specifications
Brand Name :
OEM
Model Number :
PA
Certification :
CE & ISO
Place of Origin :
China
MOQ :
1 set
Price :
$50-$200
Payment Terms :
L/C,T/T,Western Union,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
Standard export cases
Product name :
PA Mini Electric Wire Rope Hoist
Lifting capacity :
100kg to 1200kg
Lifting height :
12m standard
Voltage :
110/220v 230v 240v 1phase 50/60Hz
Color :
As per request
Application :
Construction
Description
PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
Product Details
  • Mini hoist capacity is from 100kg to 1200kg. Single hook and double hook lifting available.
  • Mini hoist has a large range of application areas. Because it is portable and convenient, porpular be used in areas like home, factory, warehouse, workshop, harbors, airport etc. for lifting and construction.
  • PA mini hoist with 100% pure copper motor, good cooling durable and energy efficient.
  • Mini electric wire rope hoist handle with emergency button.
  • Mini hoist with down and upper limiter.
  • The wire rope of mini electric hoist is anti-rotary wire rope with high strength.
  • Mini electric hoist with longer stator and rotor.
  • Thicken A4 shell to protect the mini electric hoist.
  • CE certificate available for mini electric hoist.
Product parameters
Model Method of Use Rated
Volt
(v)		 Input
Power
(w)		 Rated
Capacity
(kg)		 Lifting
Speed
(m/min)		 Lifting
Height
(m)		 Qty/CTN
PCS		 Packing
Size
(cm)		 G.W/N.W
(kg)
PA200A Single-Hook AC
220/230V
50/60Hz		 480 100 10 12 2 38×32×25 22.5/22
Double-Hook 200 5 6
PA250A Single-Hook 510 125 10 12 23/22
Double-Hook 250 5 6
PA300A Single-Hook 600 150 10 12 23.5/23
Double-Hook 300 5 6
PA400A Single-Hook 950 200 10 12 45×34×27 33/32
Double-Hook 400 5 6
PA500A Single-Hook 1020 250 10 12 33.5/32.5
Double-Hook 500 5 6
PA600A Single-Hook 1200 300 10 12 35/34
Double-Hook 600 5 6
PA800A Single-Hook 1300 400 8 12 38/37
Double-Hook 800 4 6
PA1000A Single-Hook 1600 500 8 12 1 54×25×32 32/31
Double-Hook 1000 4 6
Advantages
  1. high-quality heat-aluminum shell , junction box,220V, household electrical plug
  2. Thicken fan design,more signifcant thermal dissipation, estend usage time.
  3. Limit switch when the bound board hits the limiting stopper, the elevator will automatically stop the jop and improve greatly work safety
  4. gear and gear shaft are used by 40Cr or Cr MnTi steel ,forging processing with heat treatment.
  5. comfortabel standard handle ,simple button, easy operation.
  6. Copper wire can be limited to reduce the accident rate caused by bad weather or overload use with good anti-oxidation, corrosion-resistant and stable performance.

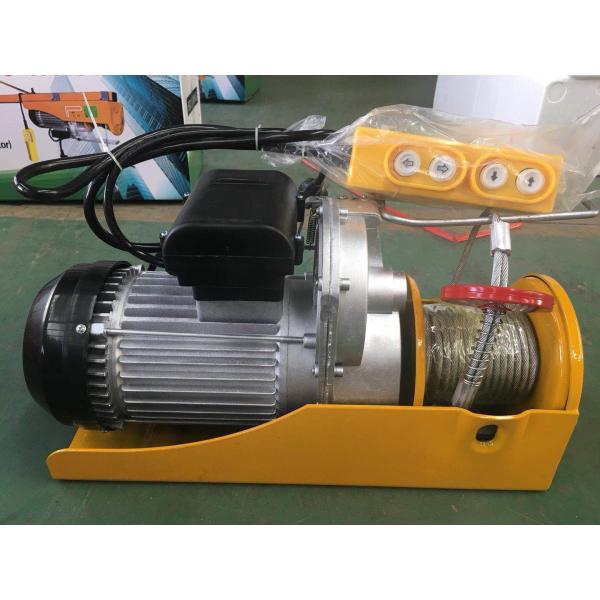

Product Photos Show

PA1000 1000KG 1T Fixed Type Mini Electric Wire Rope Hoist
