5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
Specifications
Brand Name :
JCYC
Model Number :
MD1
Certification :
CE ISO9001 manufacturing licence
Place of Origin :
China
MOQ :
one
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
Plywood Case
Product name :
5 Ton MD1 Electric Trolley Electric Wire Rope Hoist with Remote Control
Capacity :
5t
Lifting height :
3m-24m
Lifting speed :
8/0.8 m/min
Application :
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, All Situations
Vlotage :
220V/380V/440V/660V
Description
5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
Brief Description:

The electric wire rope hoist MD1 model have features of compact, light, small-sized shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-grider crane, the double-grider crane, the cantilever crane and the gantry cranes. The eletric hoist model MD1 with double lifting speeds should be used in case where the hoist model CD1 can not meet the requirements for fine abjustments during recision operations.

Producet Technical Parameters:
Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope(mm) (H)Lifting Height
Power(kw) R.P.M(r/min) Power Supply
MD1-0.25 0.25 8/0.8 20 6*19 3.6 0.4 1380 220-690V 50/60HZ 3 Phase
MD1-0.5 0.5 8/0.8 20 6*37+1 4.8 0.2/0.8 1380
MD1-1 1 8/0.8 20 6*37+1 7.4 0.2/1.5 1380
MD1-2 2 8/0.8 20 6*37+1 11 0.4/3 1380
MD1-3 3 8/0.8 20 6*37+1 13 0.4/4.5 1380
MD1-5 5 8/0.8 20 6*37+1 15 0.8/7.5 1380
MD1-10 10 7/0.7 20 6*37+1 15 1.5/13 1380
MD1-16 16 3.5/0.35 20 6*37+1 15 1.5/13 1380
MD1-20 20 3.5/0.35 20 6*37+1 20 1.5/13 1380
Questions before make quotation:
  • Capacity?
  • Lifting height?
  • what is lifting material? How about working environment?
  • Power supply and control voltage?

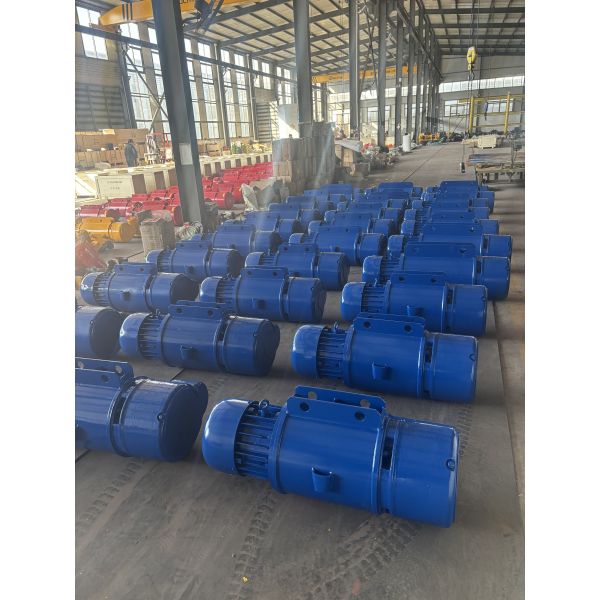

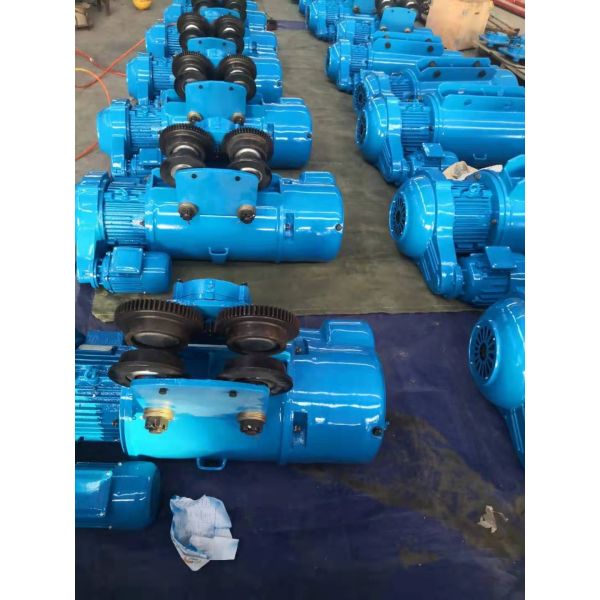

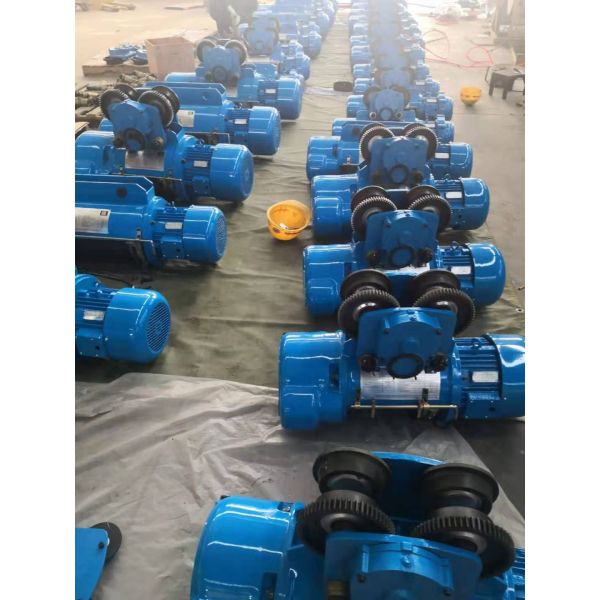

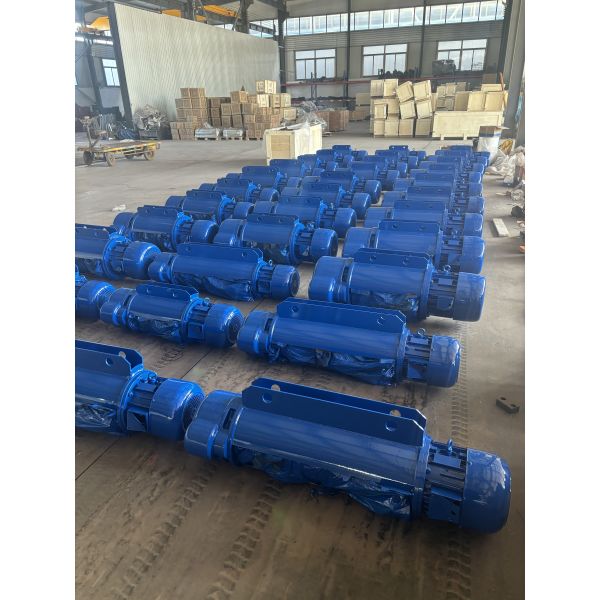

Product show:

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control

Exhibition

5 Ton MD1 Double Speed Electric Wire Rope Hoist Electric Trolley With Remote Control
