Specifications
Brand Name :
JCYC
Model Number :
SHSL
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
1000usd
Payment Terms :
L/C,T/T,Western Union,D/A,D/P,MoneyGram
Supply Ability :
1000 units per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood Case
Name :
European Type Electric Wire Rope Hoist
Capacity :
1t to 80t
Standard Lifting Height :
6/9/12/18M
Lifting Speed :
Double Speed, Frequency Controlled Speed
Working duty :
M5
Motor :
ABM MOTOR
Description
Overhead 15T Wire Rope Crane Hoist 18M Lifting
5T 10T 15T European Model Electric Wire Rope Hoist with IP55 ABM Motor
Product Introduction
European Type Electric Wire Rope Hoist is the latest internationally standard product designed by combining and applying advanced German technologies. It features a compact structure with a rectangular frame and a drum made of seamless steel pipe. The planetary gearbox, electromotor, and electric control box are arranged in a straight-line configuration. The hoist includes overload protection, overheating protection, and phase relay protection devices. Its modular design enables seamless integration with frequency inverters, automatic weighing systems, and automatic detection systems.
Applications
Widely used for overhead cranes, gantry cranes, and other heavy-duty industries, as well as light-duty industries, particularly in plants with highly restricted environments. Especially suitable for locations with high environmental requirements.
Key Features
  • Trolley with frequency conversion motor
  • Double speed/frequency conversion lifting motor
  • Motor protection grade IP55, Insulation grade F
  • Electromagnetic disc brake, maintenance-free
  • Control voltage: 24V/26V/48V/110V
  • Schneider contactor & Inverter
  • 380V/415V/440V/460V/3PH/50/60HZ
  • Lifting limit switch
  • Hook with safety latch
  • Overload limiter
  • Ambient temperature: -20ºC to +40ºC
  • Motor over temperature protection
Technical Parameters
Capacity (ton) Lifting Height (m) Lifting Speed (m/min) Lifting Motor (kw) Traveling Speed (m/min) Traveling Motor (kw) Lifting System FEM/ISO Traveling System FEM/ISO I-Beam Width (mm)
2t6/9/12/15/185/0.83.2/0.455/200.373MM62MM5150-300
3.2t6/9/12/15/185/0.83.2/0.455/200.372MM52MM5150-300
5t6/9/12/15/185/0.86.1/15/200.372MM52MM5200-350
6.3t6/9/12/15/185/0.86.1/15/200.371AmM42MM5200-350
8t6/9/12/15/185/0.89.5/1.55/200.753MM62MM5200-410
10t6/9/12/15/185/0.89.5/1.55/200.752MM52MM5200-410
12.5t6/9/12/15/184/0.612.5/25/200.751AmM42MM5200-410
16t6/9/12/15/184/0.616/2.65/200.75x22MM52MM5300-450
20t6/9/12/15/184/0.616/2.65/200.75x21AmM42MM5300-450
8t20/24/28/32/368/1.312.5/25/200.752MM52MM5200-410
10t20/24/28/32/368/1.316/2.65/200.752MM52MM5200-410
12.5t20/24/28/32/366.3/116/2.65/200.751AmM42MM5200-410

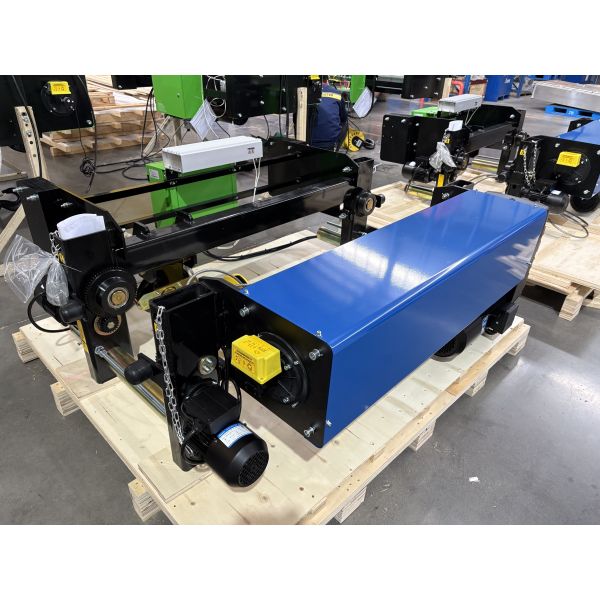

Product Images
Overhead 15T Wire Rope Crane Hoist 18M Lifting Overhead 15T Wire Rope Crane Hoist 18M Lifting Overhead 15T Wire Rope Crane Hoist 18M Lifting
