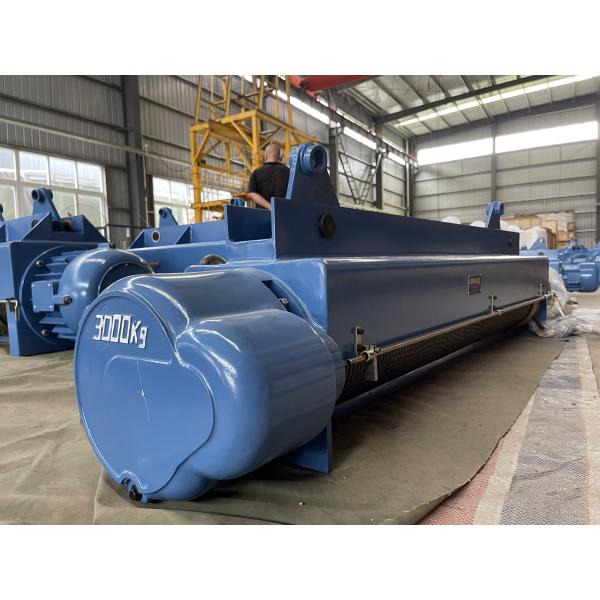

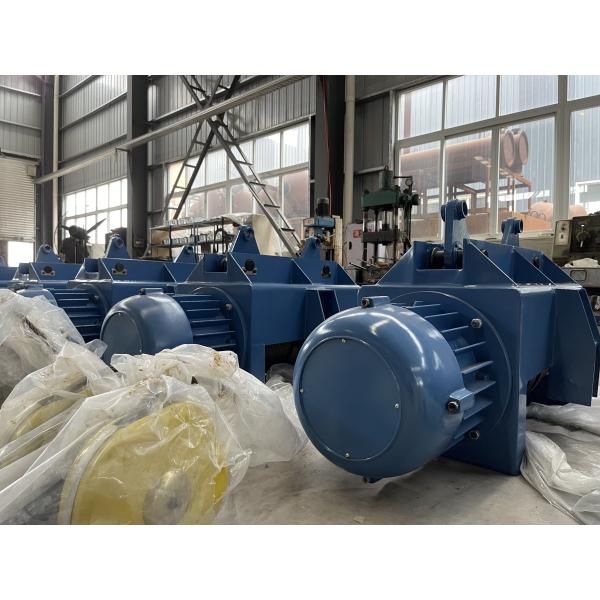

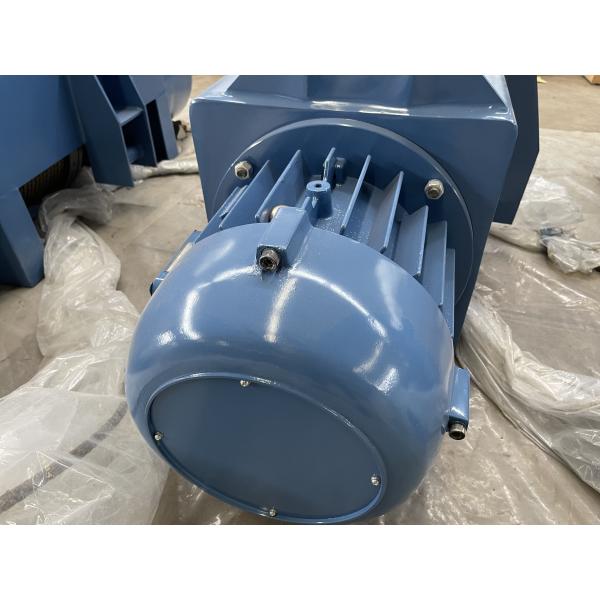

Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Specifications
Brand Name :
JCYC
Model Number :
HC-A & HC-B
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD negotiable per unit
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Name :
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Capcity :
3.2t-20t
Lifting height :
3m-24m
Voltage :
220v-440v,50HZ/60HZ,3P
Reeving :
2/1; 4/1
Speed :
Single speed or double speed
Control :
Pendant control or radio control
Color :
Blue, yellow, red...
Description
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Product Description:

Electric hoist is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The new type hc light small wireless remote control electric hoist can also work by fixing to a section of I-beam. It is a light duty designed.

Preferably used in manufacturing buildings that have enough working space for an overhead crane. Depending on the lifting height needed, the hoist is assembled with one or two motorized travel trolleys and one or two motor-reducers. The trolleys are also available in an articulated version to run on curves. For them two travel motor-reducers are by default.

Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
ModelLifting Capacity(t)Lifting Height(m)Lifting Speed(m/min)Running Speed(m/min)Wire Rope TypeDia. Of Wire RopeI Beam Track TypeWorking DutyLifting MotorRunning Motor
Power(kw)R.P.M(r/min)Power SupplyPower(kw)R.P.M(r/min)Power Supply
HC-A0.250.253-98206*193.616-22bM30.41380220-440V 50/60HZ, 3 Phase0.061400220-440V 50/60HZ, 3 Phase
HC-A0.50.56-128206*37+14.816-28bM30.813800.21380
HC-A116-308206*37+17.416-28bM31.513800.21380
HC-A226-308206*37+11120a-32cM3313800.41380
HC-A336-308206*37+11320a-32cM34.513800.41380
HC-A556-308206*37+11525a-63cM37.513800.81380
HC-A10106-307206*37+11525a-63cM31314000.8*21380
HC-A16166-303.5206*37+11545a-63cM21314000.8*21380
HC-A20206-303.5206*37+12050a-63cM21314000.8*21380















ModelLifting Capacity(t)Lifting Height(m)Lifting Speed(m/min)Running Speed(m/min)Wire Rope TypeDia. Of Wire RopeI Beam Track TypeWorking DutyLifting MotorRunning Motor
Power(kw)R.P.M(r/min)Power SupplyPower(kw)R.P.M(r/min)Power Supply
HC-B16169-483.5(3.5/0.35)206*1917.550a-63cM313(13/1.5)920(1400)220-440V 50/60HZ, 3 Phase0.8*21380220-440V 50/60HZ, 3 Phase
HC-B20209-243.5/0.3(4/0.4)206*37+12050a-63cM618.5(18.5/3)920(1400)0.8*41380
HC-B25259-242.4/0.24(3/0.3)206*37+12050a-63cM618.5(18.5/3)920(1400)0.8*41380
HC-B32329-242.4/0.24(3/0.3)206*37+12650a-63cM318.5(18.5/3)9201.5*41380
HC-B50509-242.4/0.24206*37+12650a-63cM318.5(18.5/3)9201.5*41380
HC-B80809-242.4/0.24206*37+12650a-63cM318.5(18.5/3)9201.5*41380
Safety Features:

Safety is the most important issue for new type hc light small wireless remote control electric hoist. To ensure the safety, we equip the following safety devices:

  • eight overload protection device
  • Lifting height limit device
  • Voltage lower protection function
  • Phase sequence protection function
  • Emergency stop function
  • Rain cover for outside hoist, driving units, electrical cubicle
  • Warming indicator, flashing lights and warming sound
  • Wireless infra-detector for anti-collusion
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley Normal Headroom Electric Wire Rope Hoist With Monorail Trolley Normal Headroom Electric Wire Rope Hoist With Monorail Trolley Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
Exhibition:
Normal Headroom Electric Wire Rope Hoist With Monorail Trolley
