3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
Specifications
Brand Name :
JCYC
Model Number :
SHSL
Certification :
CE & ISO
Place of Origin :
Chongqing China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
3000 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
standard export cases
Product name :
3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
Type :
Single girder
Capacity :
3T 5T
Lifting height :
3m to 36m
Lifting speed :
double speed (refer to parameters)
Port :
Shanghai
Description

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom


Technique Parameters


Capacity ton Lifting height m Lifting speed m/min Lifting motor kw Lifting System FEM/ISO
2t 6/9/12/15/18 5/0.8 3.2/0.45 3M M6
3.2t 6/9/12/15/18 5/0.8 3.2/0.45 2M M5
5t 6/9/12/15/18 5/0.8 6.1/1 2M M5
6.3t 6/9/12/15/18 5/0.8 6.1/1 2M M5
8t 6/9/12/15/18 5/0.8 9.5/1.5 3M M6
10t 6/9/12/15/18 5/0.8 9.5/1.5 2M M5
12.5t 6/9/12/15/18 4/0.6 12.5/2 2M M5
16t 6/9/12/15/18 4/0.6 16/2.6 2M M5
20t 6/9/12/15/18 4/0.6 16/2.6 1Am M4
8t 20/24/28/32/36 8/1.3 12.5/2 2M M5
10t 20/24/28/32/36 8/1.3 16/2.6 2M M5
12.5t 20/24/28/32/36 6.3/1 16/2.6 1Am M4

Specifications
  • CE factory, high quality
  • Safety, low noise
  • Low repair rate
  • Competitive price
  • Advanced technology

High configuration

1. Modular structure, can shorten the product development and manufacturing cycle, increase the product line, improve product quality, easy to reuse, upgrade, maintenance and product after the removal of waste, recycling and processing.

2. Integrated electrical components - small size, low failure rate, low maintenance costs;

3. The utility model has the advantages that the lifting speed is slow and the speed is fast, and the utility model solves the harsh sound of slow and fast switching of the European calabash;

4. Bus control technology to achieve large car control signal transmission, reduce the failure rate;

5. Multi function monitoring unit. The lifting mechanism can monitor the flow number, number and overload of each control point of action is normal or not, by recording the data from the remaining safe working cycle of gourd, gourd life detection;

6. Delay switch technology is used to ensure that the pole changing motor can be converted to the slow speed from fast to slow,Play the role of anti - shock protection.

7. Lifting frequency conversion with a safety circuit, even if the inverter failure will not occur safety incidents.

8. Application of fuzzy control technology in anti swing control;

9. Using pulse generator technology to monitor the motor running state;

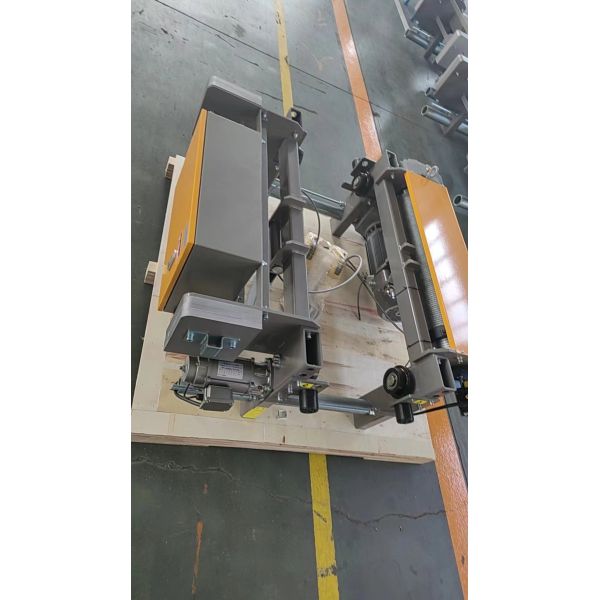

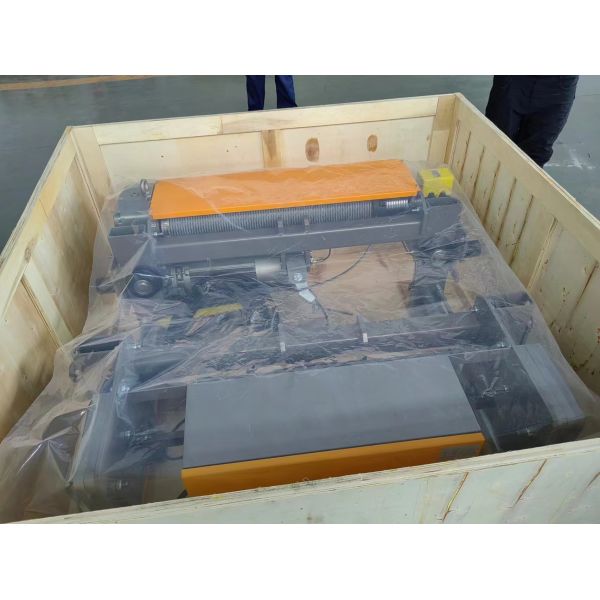

Product package show

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom


3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom


3t 5t Electric Wire Rope Hoist Single Girder Low Headroom

3t 5t Electric Wire Rope Hoist Single Girder Low Headroom
