Specifications
Brand Name :
JCYC
Model Number :
CD/MD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
Standard export wooden cases
Product name :
CD / MD Electric Hoist with Cable Trolley
Capacity :
0.25 to 20T
Lifting height :
6 - 30m
Running speed :
20 m/min
Power supply :
220-440V, 50/60HZ, 3Phase
Working duty :
M3 or at your request
Description
CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley
Product Parameters:
Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M ( r/min) Power Supply Power(kw) R.P.M ( r/min) Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

Product Details:
Reducer

Use three helical gear transmission mechanism, gears and gear shafts are made with heat-treated alloy steel; box and box cover are made of high quality cast iron, the assembly is tightly sealed. Reducer as a self-contained part that is convenient to loading and unloading.

Control box

Used in an emergency to cut off the main circuit, and with a trip up and down off the fire protection stopper device. To ensure the safe operation of electric hoist electrical components, long life, only reliable.

Wire Rope

Use GB1102-74 (6 * 37 +1)-type lifting rope, which ensures durability.

Cone Motor

Lifting starting torque motor with a longer prototype rotor brake motor, no need to add brake. 25% duty cycle motor, motor with B grade or F grade insulation, electrical protection class IP44 or IP54.

Button switch

Hand type, light, flexible, and convenient, divided into rope operation and cordless remote control.

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

Packaging and Shipping:

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

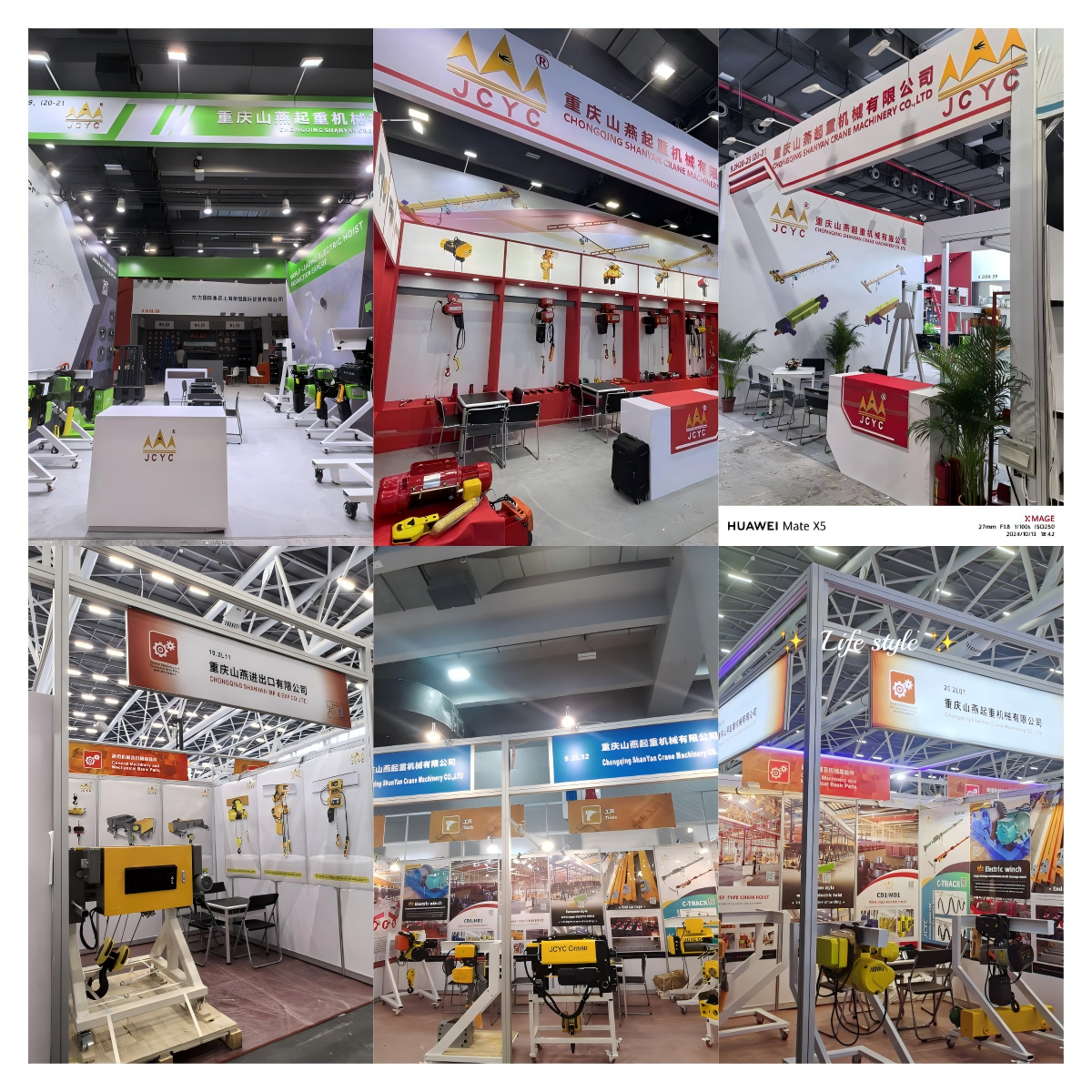

Exhibition:

CD / MD Electric Wire Rope Hoists Lifting Equipment With Cable Trolley

Buying Guides:

Please tell us your specification according the above different drawing, if difficult to you, kindly see the below the basic parameters or tell us your questions. We will choose a suitable products for you.

Or Just tell me where you will use, then it is my turns.

  1. Load capacity:___t?
  2. Lifting height: ___m?
  3. (For crane) Span:____m?
  4. Industrial voltage:___V___Hz___Phases?
  5. Working Duty:____?
  6. (Working hours ___h/day? Often full load or not? High working frequency or low? )
  7. Other special specifications?
