Specifications
Brand Name :
JCYC
Model Number :
SHSL
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,D/A,D/P,MoneyGram
Supply Ability :
500 units per month
Delivery Time :
10 -15 working days
Packaging Details :
plywood case
Name :
European Type Electric Wire Rope Hoist Double Girder Double Speed M5
Capacity :
1t to 100t
Standard Lifting Height :
6/9/12/18M
Power Source :
380V 3P 50Hz
Working duty :
M4 M5
Warranty :
1/3 years
Incoterm :
FOB; CFR; EXW
Port :
Shanghai
Description

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

Product Introduction

European Type Electric Wire Rope Hoist

It is a up to date developed product by combining and applying the advanced German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection , overheating protection and phase relay protection devices. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.

Application

It is widely used for overhead crane, gantry crane etc. heavy duty industry, light duty industry especially highly resticted environment plants.

Features

  • Easy and adaptable wire rope hoist
  • Rugged and compact
  • Modular construction and easy maintenance
  • Light weight
  • Small volumn
  • Clearance height minimum

Configuration

Capacity
(t)		 Lifting Height
(m)		 Lifting Speed
(m/min)		 Lifting Motor
(kw)		 Travelling Speed
(m/min)		 TravellingMotor
(kw)		 Lifting System
(FEM/ISO)		 Travelling System
(FEM/ISO)		 I-Beam Width
(mm)
2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 150-300
3.2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 150-300
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 200-350
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 200-350
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200-410
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200-410
12.5 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200-410
16 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 300-450
20 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 300-450
8 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 200-410
10 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200-410
12.5 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200-410

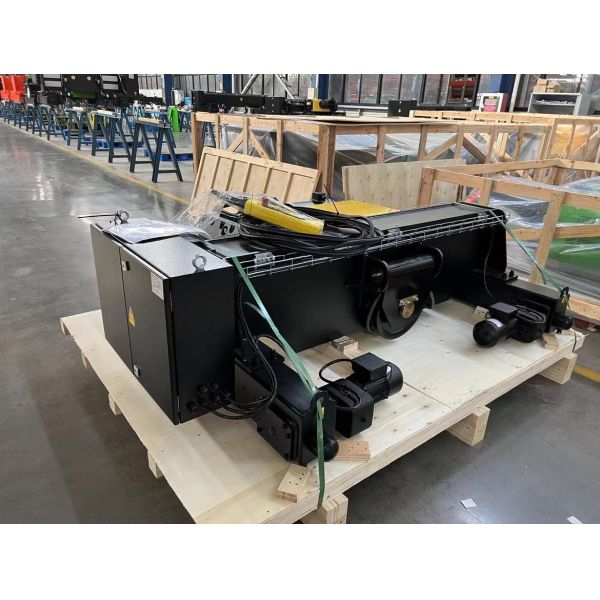

Product show

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

A customer use case

European Type Electric Wire Rope Hoist Double Girder Double Speed M5

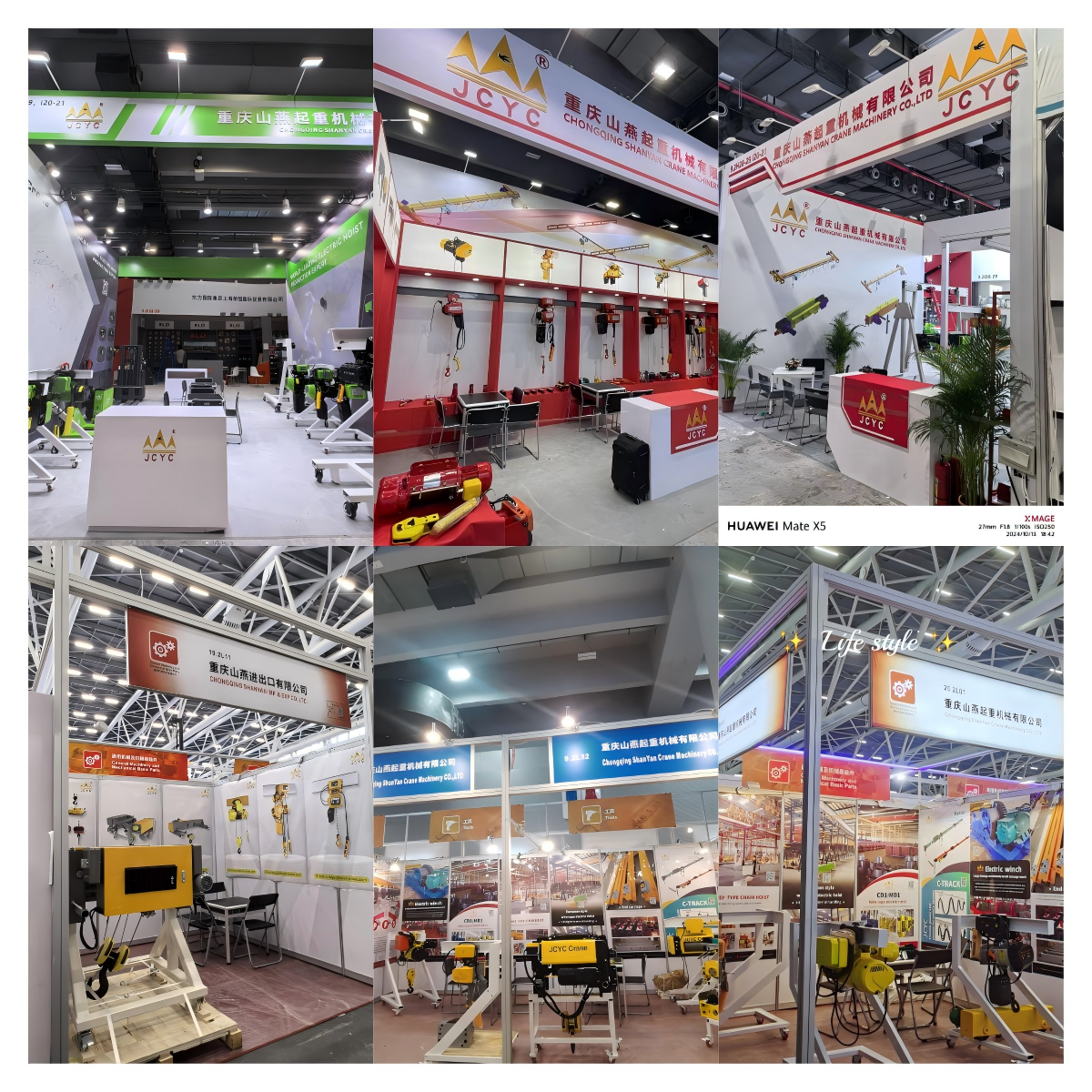

Exhibition

European Type Electric Wire Rope Hoist Double Girder Double Speed M5
