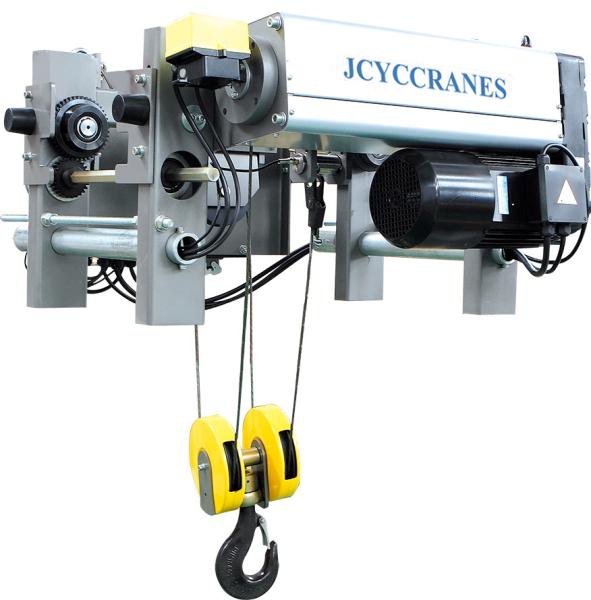

Single Girder Electric Low headroom Wire Rope Hoists 3.2 Ton ~ 12.5 Ton
Single Girder Electric Low headroom Wire Rope Hoists 3.2 Ton ~ 12.5 Ton
Specifications
Brand Name :
JCYC
Model Number :
SHAL
Certification :
CE&ISO
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
USD Negotiable per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 units per month
Delivery Time :
10 -15 working days
Packaging Details :
plywood case
Capacity :
2T-12.5T
Lifting Height :
6M-36M
Lifting Speed :
5/0.8m/min
Voltage :
220v-440v,50HZ/60HZ
Lifting system FEM :
1 Am 2M
Traveing speed :
5/20m/min
Description

Low headroom Single girder Electric Wire Rope Hoist 3.2 Ton ~ 12.5 Ton
Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Product Details:
SHSL-A Low Headroom Electric Wire Rope Hoist

Features and advantages:
1. High performance hoist delivers exceptional reliability in even the most demanding applications.
2. Maximize overhead clearance and minimizes beam-to-hook distance.
3. Protect loads and production machinery from unnecessary contact and damage.
4. Specified by the military because all critical welds are magnetic particle inspected.
5. Top-quality components and design features provide operator peace-of-mind.
6. High quality and wide adaptation.
7. Excellent performance and 1 year warranty.
8. Sample, OEM and ODM are all ok.

Capacity
(t)		 Lifting Height
(m)		 Lifting Speed
(m/min)		 Lifting Motor
(kw)		 Travelling Speed
(m/min)		 TravellingMotor
(kw)		 Lifting System
(FEM/ISO)		 Travelling System
(FEM/ISO)		 I-Beam Width
(mm)
2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 150-300
3.2 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 150-300
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 200-350
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 200-350
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200-410
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200-410
12.5 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200-410
16 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 2M M5 2M M5 300-450
20 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75*2 1Am M4 2M M5 300-450
8 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 200-410
10 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200-410
12.5 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200-410
