Specifications
Brand Name :
JCYC
Model Number :
SH
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
658
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Product name :
Single Girder Electric Wire Rope Hoist
Capacity :
3.2 T - 63 T
Lifting height :
3m to 30m
Duty Group :
ISO M3 - ISO M5
Control method :
pendent control or remote control
Working Temperature :
-25 - 50 Degrees
Description
Single Girder Electric Wire Rope Hoist – European Design with Low-Voltage Protection
Detailed Product Description

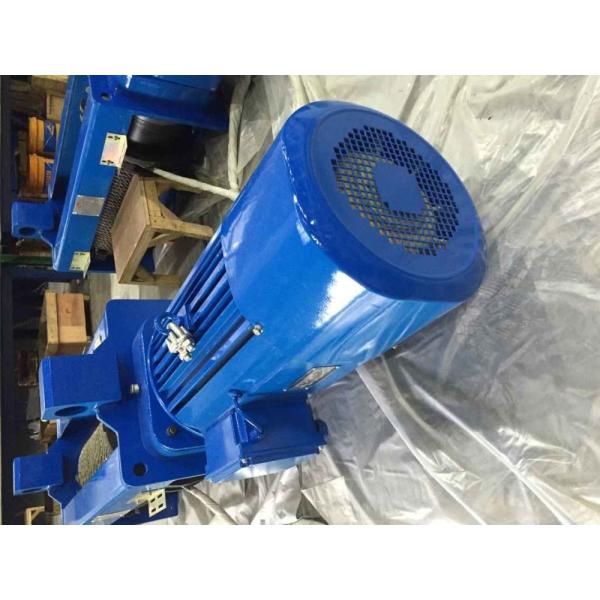

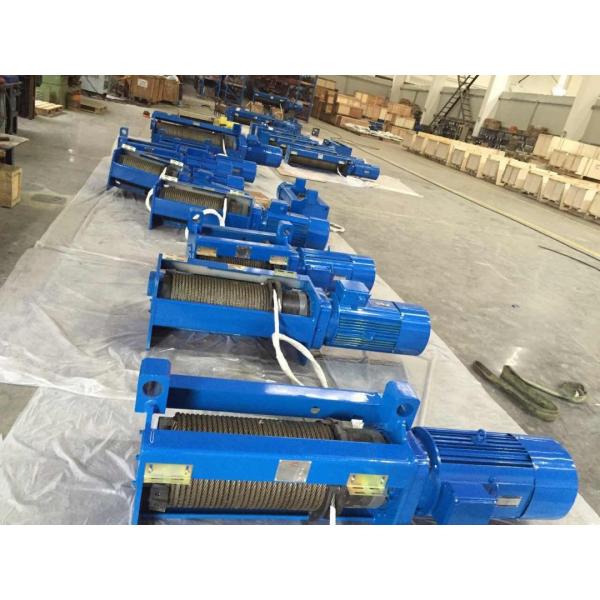

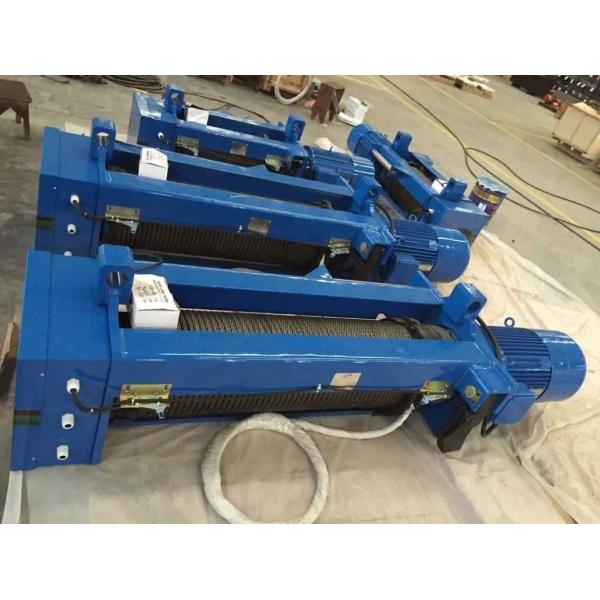

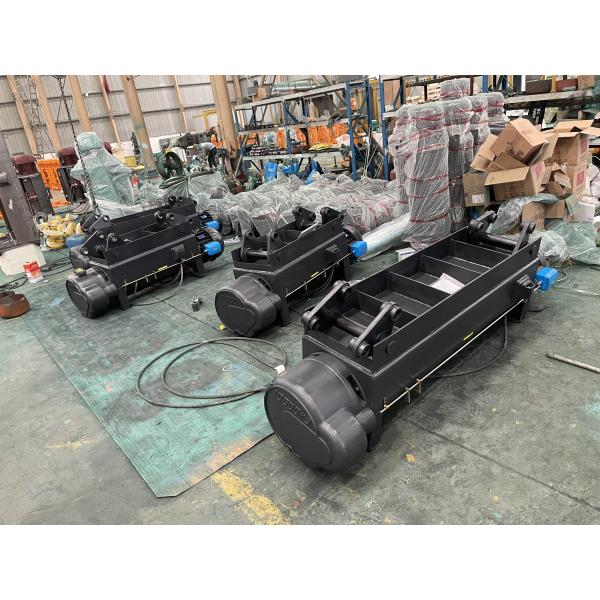

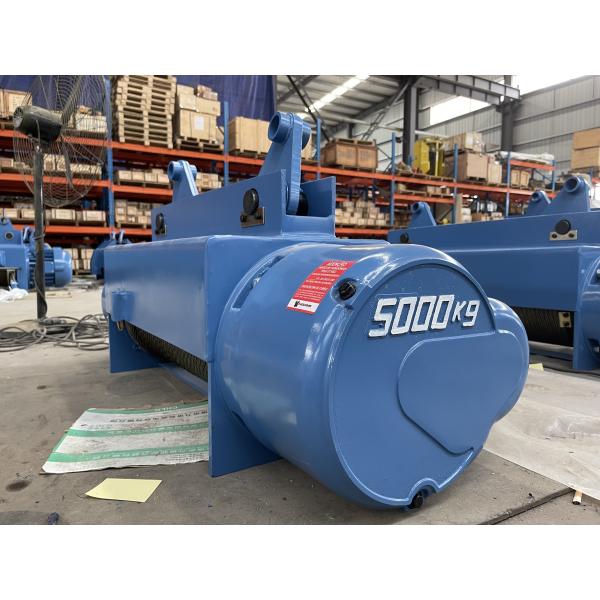

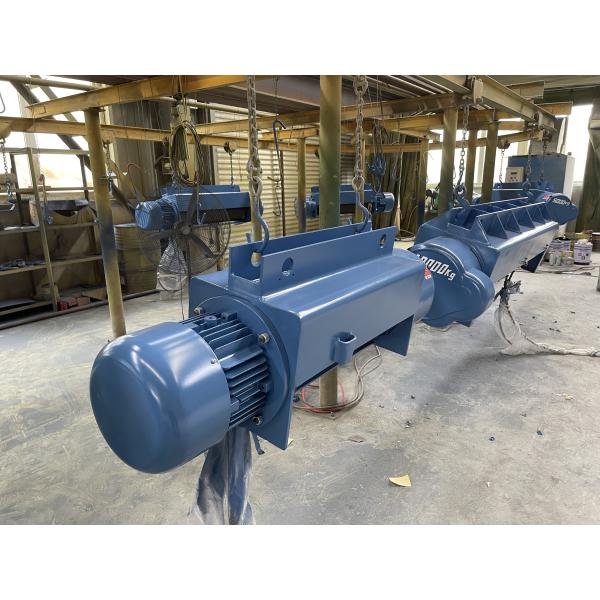

SH-Type Single Girder Hoist

The SH-Type Single Girder Hoist is a newly developed electric hoist, built upon advanced German manufacturing technologies. This compactly designed hoist features a high-strength frame and drum, with a planetary gearbox inside. The hoist is equipped with a double-girder trolley that ensures smooth traveling and stopping. With its lightweight design and reduced wheel pressure, it is fully comparable to similar hoists from international brands.

This hoist also offers overload protection, overheating protection, and phase relay protection. Its modular design allows seamless integration with frequency inverters, automatic weighing systems, and automatic detection systems.

Competitive Advantages

  • Single speed, double speed, or variable speed options available upon request.

  • Smooth starting and stopping, enhancing operational safety and efficiency.

  • Low noise operation, providing a quieter work environment.

  • Safe and reliable traveling, reducing the risk of accidents.

  • Convenient maintenance, with easy access to key components.

  • Overload protection device for safety and peace of mind.

  • Corrosion resistance and fatigue resistance, making it ideal for demanding environments.

Single Girder Electric Wire Rope Hoist With M5 Duty Work In European Design

Capacity Lifting Height Lifting Speed Lifting Power Travelling Speed Travelling Power Working Group Traveling
Working Group

 H C I-beam Weight
(kg) m (m/min) KW m/min (kw) FEM/ISO FEM/ISO (mm) (mm) B(mm) kg
2000 6 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 309
9 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 330
12 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 351
15 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 372
18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 180 850 100-250 393
3200 6 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 309
9 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 330
12 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 351
15 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 372
18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 180 850 100-250 393
5000 6 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 380
9 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 423
12 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 466
15 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 510
18 5/0.8 6.1/1 5/20 0.55 2M M5 2M M5 190 890 150-300 552
6300 6 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 150-300 380
9 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 150-300 420
12 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 190 890 200-350 465
15 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 260 596 200-350 510
18 5/0.8 6.1/1 5/20 0.55 1Am M4 2M M5 260 596 200-350 552
8000 6 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 794
9 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 826
12 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 870
15 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 914
18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200 1150 150-300 958
10000 6 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 794
9 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 826
12 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 870
15 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 914
18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200 1150 150-300 958
12500 6 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 794
9 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 826
12 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 870
15 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 914
18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200 1150 150-300 958
16000 6 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1120
9 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1180
12 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1240
15 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1300
18 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 250 1150 250-350 1450
20000 6 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1120
9 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1180
12 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1240
15 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1300
18 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 250 1150 250-350 1450
8000 20 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 997
24 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1036
28 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1075
32 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1114
36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1153
10000 20 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 997
24 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1036
28 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1075
32 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1114
36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200 1150 150-300 1153
12500 20 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 997
24 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1036
28 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1075
32 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1114
36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200 1150 150-300 1153
