G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction
G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction
G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction
G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction
Specifications
Brand Name :
JCYC
Model Number :
FRR
Certification :
CE
Place of Origin :
CHINA
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs / week
Delivery Time :
30 working days
Packaging Details :
Carton
Material :
G80 Forged Round Ring
Color :
Yellow
Max. Cap. :
20 ton
Min. Cap. :
1.1 ton
Grade :
G80
Breaking Load ton :
4.4 ton - 80 ton
Description

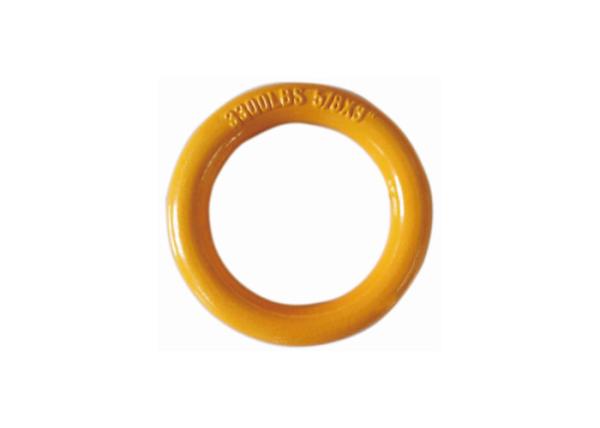

G80 Forged Round Ring


G80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered ConstructionG80 Forged Round Ring 1.1 ton - 20 ton Quenched And Tempered Construction

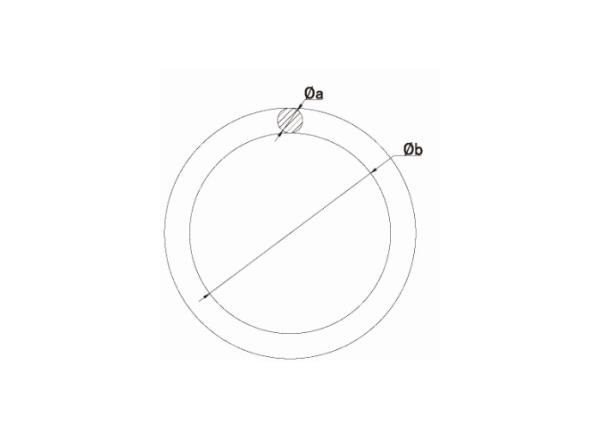

WLL ton Breaking Load ton Φa mm Φb mm Weight kg
1.1 4.4 12.7 50 0.2
1.5 6 15.9 76 0.45
2.2 8.8 19 76 0.7
2.5 10 19 102 0.8
3.2 12.8 22.2 102 1.2
4.5 18 25.4 102 1.6
6.5 26 28.6 152.4 2.8
9 36 31.8 152.4 3.5
9 36 31.8 203.2 4.5
9 36 31.8 254 5.5
10 40 38.1 152.4 5
10 40 38.1 203.2 6.5
10 40 38.1 254 7.9
16 72 44.5 228.6 10.3
20 80 50.8 342.9 19.4
