10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
Specifications
Brand Name :
JCYC
Model Number :
JCYC-KEC
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
650 usd
Payment Terms :
T/T
Supply Ability :
200 to 300 sets per month
Delivery Time :
15 to 20 working days

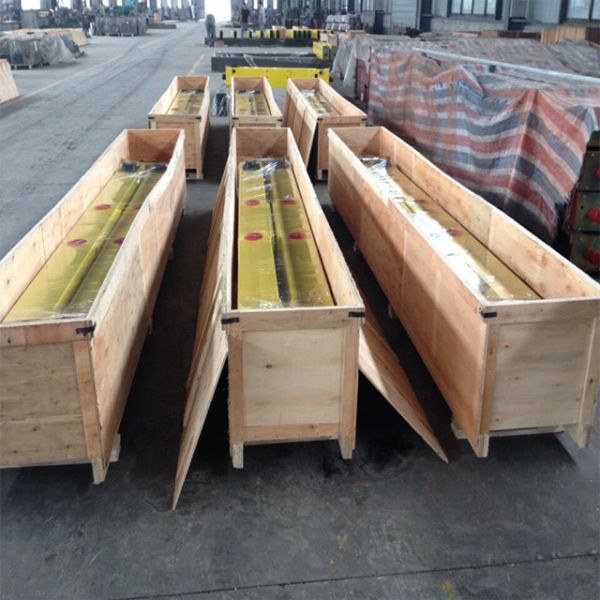

Packaging Details :
Plywood case
Product name :
Single Girder End Carriage
Capacity :
1ton-20ton
Span :
3-30m
Use :
For overhead crane
Traveling speed :
20m/min
Working temperature :
-25℃ – 50℃
Description

Single Girder End Carriage With Motor

Selection Guide

1. How to choose end carriages by capacity?

  • Below 3 tons: LD150 wheels or LD200 wheels

  • 3–10 tons: LD300 wheels

2. How to choose wheels based on runway type?

  • If using I-beams (14#, 16#, 18#, 20#) as the runway:
    → Choose LD150 wheels, wheel groove width 110 / 130 mm

  • If using rail steel (12#, 15#, 18#) as the runway:
    → Choose LD200 wheels, wheel groove width 60 mm

3. What wheel size for a 5-ton crane with 6 m lifting height?

  • For capacities above 3 tons, LD300 wheels are recommended

4. What is included in one set of end carriages?

  • 2 * end carriages

  • 4 * wheels

  • 2 * motors

  • 2 * gearboxes

  • 4 * buffer blocks

5. How to choose end carriage length?

  • Span ≤ 5 m: 1.2 m end carriage

  • Span 5–7.5 m: 1.5 m end carriage

  • Span 7.5–12 m: 2.0 m end carriage

Key Features & Advantages

  • High-quality materials: Manufactured with premium steel for strong structure and long service life

  • High-performance bearings: Smooth operation with low noise and reduced wear

  • Quality assurance: Box-type steel plate beam design, resistant to deformation

  • Carburized gears: Large starting torque, stable and smooth running speed

  • Copper-winding motor: Smooth start-up, strong power output, long service life

  • Customizable: End carriage solutions can be tailored to customer requirements

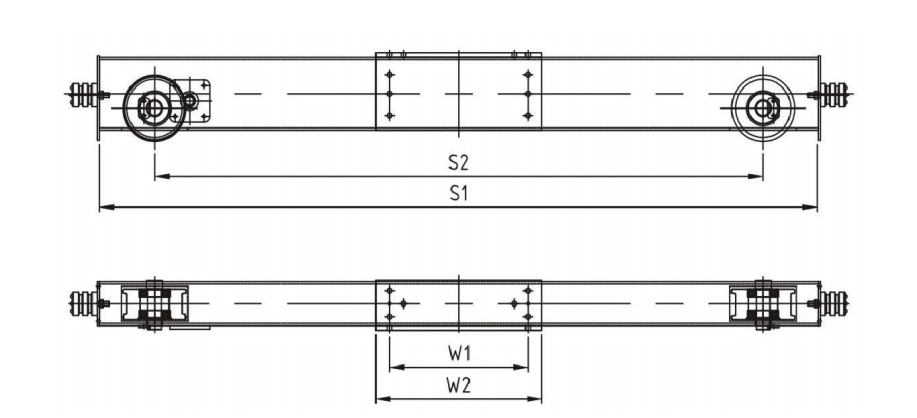

Technical Specifications

10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane
Model Crane Rectangul
ar		 Wheel Size Motor power S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500 1300 400 500
GL125-20 1t-11.5m 2000 1800 400 500
GL125-25 1t-16.5m 2500 2300 400 500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500 1200 400 500
GL160-20 2t/3t-11.5m 2000 1700 400 500
GL160-25 2t/3t-16.5m 2500 2200 400 500
GL160-30 2t/3t-22.5m 3000 2700 500 600
GL160-35 2t/3t-28.5m 3500 3200 600 700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000 1700 400 500
GL200-25 5t-16.5m 2500 2200 400 500
GL200-30 5t-22.5m 0.75KW*2 3000 2700 500 600
GL200-35 5t-28.5m 3500 3200 600 700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000 1600 400 500
GL250-25A 10t-16.5m 2500 2100 500 600
GL250-30A 10t-22.5m 1.1KW*2 3000 2600 500 600
GL250-35A 10t-28.5m 3500 3100 700 800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500 2100 600 700
GL250-30B 16t-22.5m 3000 2600 700 800
GL250-35B 16t-28.5m 1.5KW*2 3500 3100 700 800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000 2500 700 800
GL315-35 20t-22.5m 3500 3000 700 800

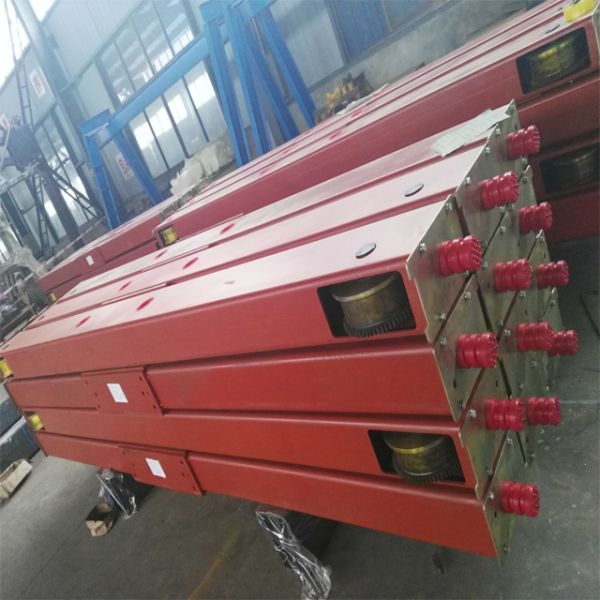

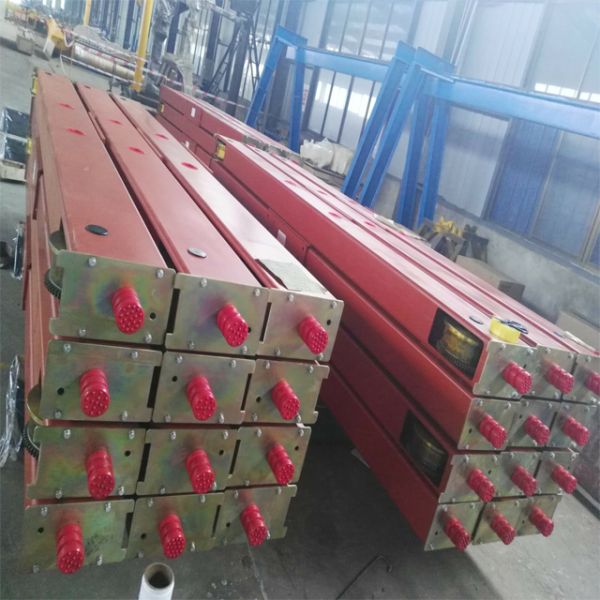

Product Images
