Low Headroom Electric Wire Rope Hoist For Insufficient Space Construction
Low Headroom Electric Wire Rope Hoist For Insufficient Space Construction
Specifications
Brand Name :
JCYC
Model Number :
CDL/MDL
Certification :
CE
Place of Origin :
China
MOQ :
1 sets
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
Plywood cases
Product name :
Low Headroom Electric Wire Rope Hoist
Advantages :
Low headroom
Capacity :
0.5-16 ton
Hoisting height :
6-30 m
Dia. of wire rope :
4.8-17.5mm
Application :
construction in insufficient space
Description

Low Headroom Electric Wire Rope Hoist For Insufficient Space Construction

Description

Electric hoist is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The low price low headroom workshop wire rope electric hoist can also work by fixing to a section of I-beam. It is a light duty designed.

Technical parameters

Capacity (t) Lifting Height (m) Lifting Speed (m/min) Travelling speed (m/min) Dia.of Wire Rope(mm) Power Supply
Power(kw) R.P.M ( r/min) (A) Power(kw) R.P.M ( r/min) Current(A)
0.5 6-12 8(0.8/8) 20/30 4.80 0.8(0.2/0.8) 1380 2.2(0.72/2.4) AC380V 50HZ 3P 0.2 1380 0.72
1 6-30 8(0.8/8) 20/30 7.40 1.5(0.2/1.5) 1380 4.3(0.72/4.3) 0.2 1380 0.72
2 6-30 8(0.8/8) 20/30 11.00 3.0(0.4/3.0) 1380 7.6(1.25/7.6) 0.4 1380 1.25
3 6-30 8(0.8/8) 20/30 13.00 4.5(0.4/4.5) 1380 11(2.4/11) 0.4 1380 1.25
5 6-30 8(0.8/8) 20/30 15.00 7.5(0.8/7.5) 1400 18(2.4/18) 0.8 1380 2.4
10 9-30 7(0.7/7) 20/30 15.00 13(1.5/13) 1400 30(5.2/30) 0.8X2 1380 2.4
16 9-30 3.5(0.35/3.5) 18 17.50 13(1.5/13) 1400 30(5.2/30) 0.8X2 1380 2.4

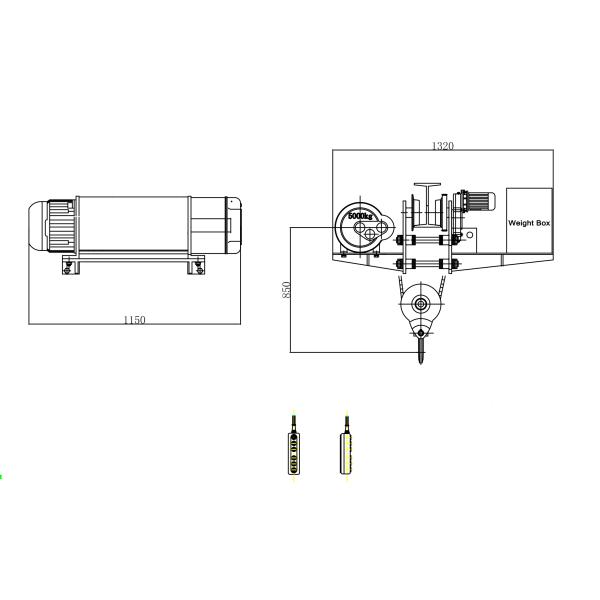

Drawing

Low Headroom Electric Wire Rope Hoist For Insufficient Space Construction
