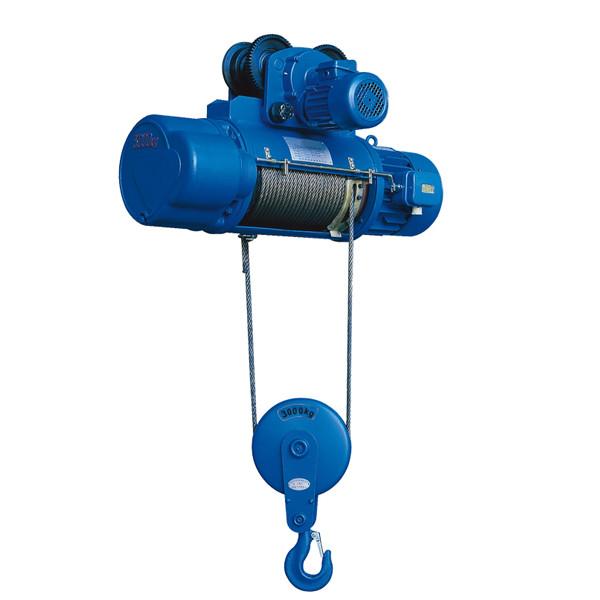

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction
3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction
Specifications
Brand Name :
JCYC
Model Number :
CD1
Certification :
CE & ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 sets per month
Packaging Details :
Plywood case
Product Name :
CD MD factory supply electric wire rope hoist winch
Model no. :
CD1
Capacity :
0.25t to 20t
Lifting height :
3 to 30m
Running Speed :
20 m/min
Power Supply :
220 V-440 V, 3 Phase, 50/60 HZ
Mobile :
up, down, left and right
Application :
Construction
Lifting speed :
8 m/min
Description

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction

Product Feature

1. Light Dead Weight


2. Small Occupied Space

3. High Working Performance


4. Easy Operation


5. Safe and Reliable


6. Low Operation and Maintenance Costs

Technical Parameters

Model CD1 0.25T CD1 0.5T CD1 1T CD1 2T CD1 3T CD1 5T CD1 10T CD1 16T CD1 20T
Capacity T 0.25 0.5 1 2 3 5 10 16 20
Standard lifting height m 3-9 6-12 6-30 6-30 6-30 6-30 9-30 9-18 9-18
Lifting Speed m/min 8 8 8 8 8 8 7 3.5 3.5
Running Speed m/min 20 20 20 20 20 20 20 20 20
Wire rope type 6X9 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 D-6X37+1 6X37+1 6X37+1
I-beam track type 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-63c 25a-63c 45a-63c 50a-63c
Loop track minium radius m 0.8 1.5 1.5-4 2-4 2-4 2.5-5 2.5-9 3-4.6 3-4.6
Power supply 220V-440V,3phase,50/60HZ
Working Duty Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M3 Mid M2 Mid M2

Factory show

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction

3 Phase Electric Wire Rope Hoist Winch 220 To 440v For Construction
