Specifications
Brand Name :
Terrui
Model Number :
YBA07306ECA0
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Discuss
Payment Terms :
D/A,L/C,D/P,T/T,Western Union
Blade Material :
6pcs Alloy
Max Airflow :
15000m³/min
Current :
2.8A
Fan Blade Diameter :
7300mm
Size :
7300mm/24FT
Rotation Speed :
55r/min(20%-100% Speed Control)
Air Volume/W :
10m³/min
Description

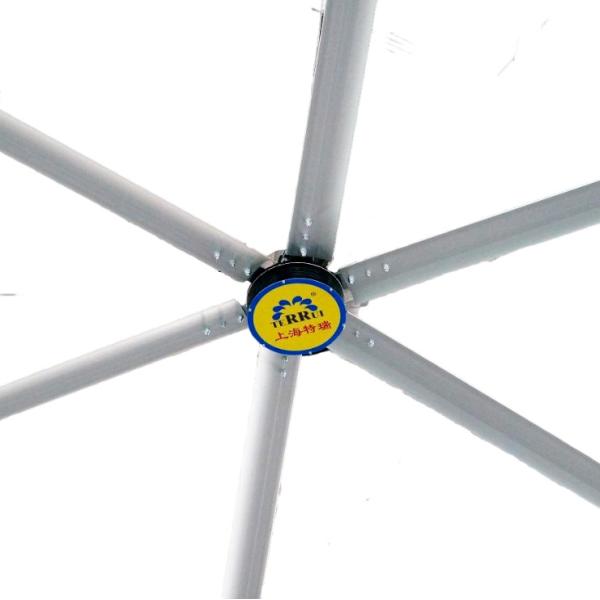

6-Alloy Blade Industrial Ceiling Fan: 15,000 m³/min Maximum Airflow
Product Introduction

The Terrui 6-blade industrial ceiling fan is a high-volume, low-speed (HVLS) ventilation powerhouse specifically engineered for ultra-large spaces. Featuring six precision-contoured alloy airfoils, this fan delivers a staggering 15,000 m³/min maximum airflow. As a professional-grade industrial ceiling fan, it offers a cost-effective and energy-efficient solution to regulate temperatures in manufacturing plants, logistics warehouses, and large-scale sports arenas, ensuring a comfortable environment even in the most demanding conditions.

6-Alloy Blades Industrial Ceiling Fan with 15,000 m³/min Airflow and 55r/min Speed Control
Core Advantages
  • Massive Air Displacement: With a peak airflow capacity of 15,000 m³/min, a single industrial ceiling fan effectively replaces dozens of small floor fans, providing uniform cooling across thousands of square feet.
  • Superior Energy Efficiency: Driven by an advanced motor system, this industrial ceiling fan consumes minimal electricity while moving massive volumes of air, significantly lowering monthly operational overhead.
  • Advanced Alloy Blade Design: The six high-strength alloy blades are aerodynamic and corrosion-resistant, ensuring long-term structural integrity and consistent performance in industrial settings.
  • Silent & Productive Environment: Despite its immense power, the fan operates at low decibel levels, maintaining a quiet work environment that boosts employee focus and overall productivity.
Key Features
  • 6 High-Strength Alloy Blades: Optimized airfoil profiles designed for maximum air displacement and stability, even during continuous high-speed rotation.
  • Permanent Magnet Direct-Drive System: A gearless design that eliminates friction and the risk of oil leakage, providing reliable, maintenance-free operation for years to come.
  • Intelligent Control Integration: Features a user-friendly Variable Frequency Drive (VFD) for precision speed adjustments and smooth, soft-start sequences.
  • Multi-Layer Safety System: Includes secondary safety steel cables, anti-fall mechanisms, and reinforced hubs to ensure 100% overhead security and peace of mind.
Why Choose Terrui?

Shanghai Terrui is a trusted name in global industrial climate control. When you source your industrial ceiling fan from us, you receive:

  1. Customized Layout Solutions: We provide professional ventilation simulations based on your facility's CAD drawings to ensure optimal fan placement and airflow coverage.
  2. Rigorous Testing Standards: Every industrial ceiling fan undergoes dynamic balance testing and structural verification before shipping to guarantee zero-defect delivery.
  3. Global Logistics & Support: With years of export experience, we offer reliable international shipping and comprehensive technical guidance for installations worldwide.
Technical Parameters
Product Name Industrial Ceiling Fan
Max Airflow 15000 m³/min
Rotation Speed 55 rpm
Noise ≤36 dB
Power 3Φ/380V/50HZ
Input Power 1500W
Installation Adaptable To Various Roof Types With Different Clamps
Protection Level IP55
Fan Blade Diameter 7300 mm
Fan Speed 55±5 rpm
Frequently Asked Questions (FAQ)
Q: Is the 6-blade design superior to a 5-blade configuration?
A: The 6-blade configuration provides more stable airflow and higher air pressure at lower speeds, making this industrial ceiling fan more efficient for cooling ultra-large facilities with high ceilings.
Q: How do you ensure the safety of an overhead fan this size?
A: We utilize a combination of redundant safety steel cables, specialized blade retainers, and a reinforced mounting structure. Every component is engineered to exceed standard industrial safety factors.
Q: Can this fan handle high-humidity or corrosive environments?
A: Yes. With its IP55 protection grade and corrosion-resistant alloy blades, this industrial ceiling fan is perfectly suited for humid environments like dairy barns, greenhouses, or coastal factories.
