Specifications
Place of Origin :
Shanghai, China
Brand Name :
Fineco
Model Number :
EM4372
MOQ :
100 units
Price :
$34.00/units 100-999 units
Display Type :
Digital Only
Phase :
Three Phase
Measuring Energy Range :
999999.99
Accuracy Class :
better than Class1.0
Output Voltage :
3*230/400V 3*240/415V
Operating Temperature :
-25 to +75
Dimensions :
90*104.5*60
Product name :
three phase digital panel meter
Certificate :
CE
OEM :
yes
Communication :
Modbus RTU
Rate :
1-4 rates
LCD :
dot matrix LCD screen
Swith power :
Wye: 85-380 V L-L
Forward :
bi-directional smart electric energy meter
Description

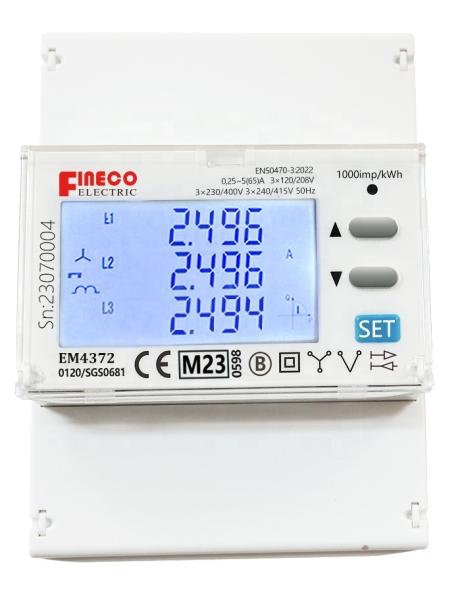

EM4372 3*230/400V 3*240/415V 5(65)A
three phase solar energy monitor
As a new power quality analyzer developed by Fineco, the EM4372 can be used not only as a power meter, but also as a power quality analyzer: providing measurements of all parameters of the power and analyzing the Angle and balance of the three-phase voltage.
Provides a full set of THD features for user analysis. At the same time, it can access the three-phase four-wire and three-phase three-wire power system. Provides import and export energy metering and analysis. RS485 modbus communication firmware can be upgraded over modbus. User defined modbus protocol register address.
EM4372 Certified according to MID Directive, Module B and Module D of Annex II, for legal metrology relevant to active electrical energy meters.
Series Models:
Type
Nominal voltages
Function
EM4372
3×120/208V~3×240/415V
● Compatible with LV,MV,HV applications
● System wiring method Y/Δ, Voltage L-L from 208V up to 415V
● More than 300 electrical parameters measured and displayed
● Harmonic analysis of voltage and current up to 41st order
● Phase sequence indication
● Voltage Asymmetry (Phase-Phase, Phase-Neural), Current Asymmetry
● Max & Min & Average &demand measure
● Load survey/profile, interval programmable
● Built-in RS485 communication port,modbus protocol
● Available the remote firmware upgrade of the instrument
