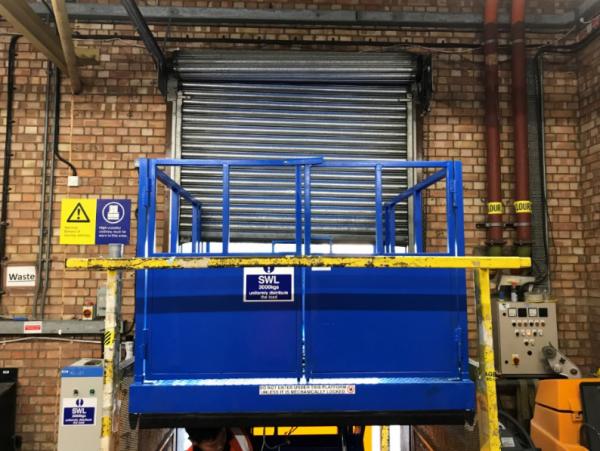

Hydraulic Electric Scissor Lifting Structure With Checkered Sheet For Wharehouse Loading And Unloading

Description:

• Dock elevator is also named hydraulic dock lift, which is scissor structure. So it is hydraulic electric scissor lifting. Because dock elevator have both scissor lift and dock leveler function. So when warehouse don't have loading bay for dock leveler, Elevating dock can be instead of dock leveler to loading cargos. If need, Elevating dock can also have with lip, which is put down to connect with the container to fill up the gap then easy to unloading goods. In order to more suitable for your warehouse, hydraulic dock lift ,We supply customization service.

Noted: Usually dock elevator width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Application:forklift loading hydraulic dock lift

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Dock elevator precautions:
1. Manual decline valve
2. Explosion proof valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:
1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Dock elevator application: Lifting and Loading/unloading Cargo as dock leveler function, etc.


Dock elevator sketch:
