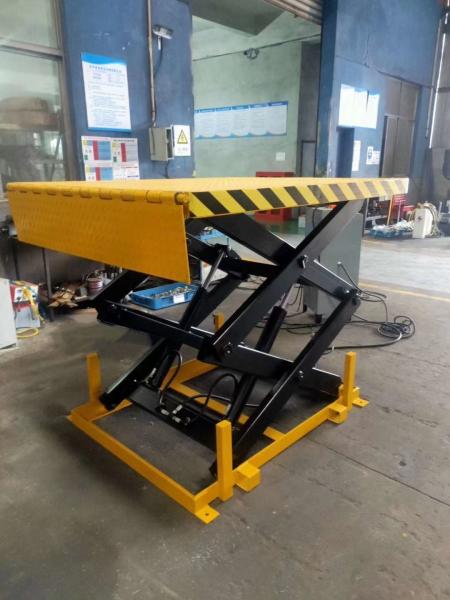

3.0kw Hydraulic Motor ,Load Capacity 4T Stationary Scissor Platform Hydraulic Dock Lift

Hydraulic Dock Lift Platforms Description:

• Hydraulic Dock Lift Platform helps keep loading operations more efficient, especially where space is restricted. They are a cost-efficient alternative to expensive and space-consuming truck well recesses and concrete ramps. King-Lift Hydraulic Dock Lift Platform can accommodate a wide variety of truck styles; from small size step vans or pick-up trucks to high cube vans, standard semi-vehicles and high bed vehicles. The lift can be pit or surface-mounted inside the building or in front of the loading dock.

Noted: Usually Hydraulic Dock Lift Platforms width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced skidproof diamond surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strong manganese steel structure
• 3. Skidproof high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Valve
• 8. Safety protected 2 for optional, with full toe guard to protect users if need
• 9. Safety protected 3, with emergency safety valves
• 10. Lift type, electric hydraulic scissor

Parameters:

• 1. Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• 2. Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• 3. Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• 4. Platform Surface : Antiskid checkered plate steel
• 5. Main Support: 10# I beam
• 6. Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• 7. High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Hydraulic dock lifts precautions:

1. Manual decline valve
2. Explosion proof valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm system if need

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:

1. Site: Work Shop, logistic center, warehouse loading bay system, etc.
2. Hydraulic Dock Lift Platforms Application: Lifting and Loading/unloading Cargo as dock leveler function, etc.

Hydraulic Dock Lift Platform Sketch:
