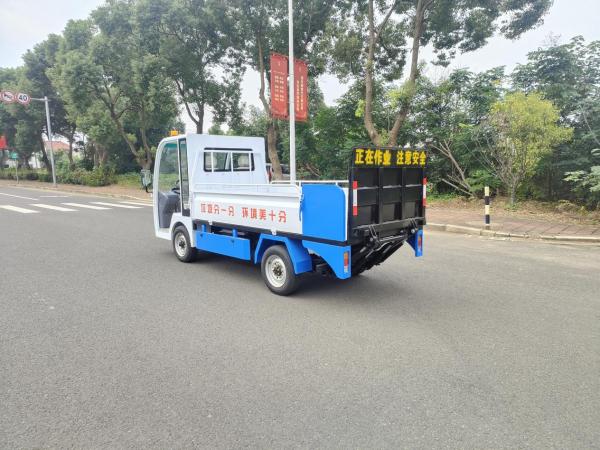

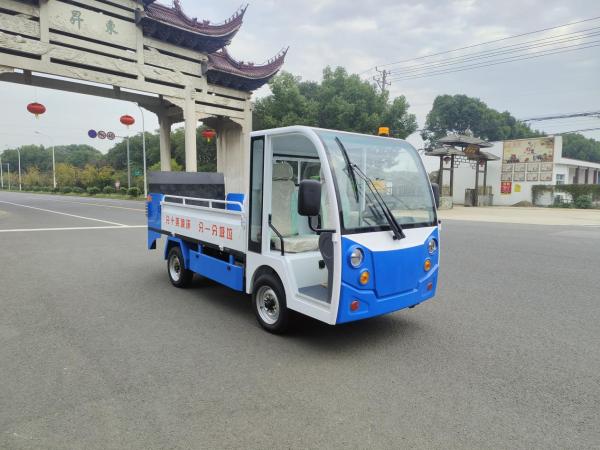

Garbage Transport Truck New Energy Electric Four Wheel Waste Removal Truck
Garbage Transport Truck New Energy Electric Four Wheel Waste Removal Truck
Garbage Transport Truck New Energy Electric Four Wheel Waste Removal Truck
Garbage Transport Truck New Energy Electric Four Wheel Waste Removal Truck
Specifications
Brand Name :
Bochi
Model Number :
Electric barge 6/8/10 barrel truck SKBY5180-A
Place of Origin :
China
MOQ :
2 sets
Price :
Further communication based on product configuration and parameters
Payment Terms :
D/P, T/T
Supply Ability :
3000 sets/months
Delivery Time :
15-30 days
Packaging Details :
Steel frame packaging
Rated passenger capacity :
1
Overall dimensions :
4450*1520*1970mm
Maximum load :
1200kg
top speed :
30km/h
cruising range :
80km
Motor power :
72V5kw
battery capacity :
48/72V200AH
Description

New Energy Electric Four-Wheel Closed Barge Truck Garbage Transport Truck Sanitation Truck SKBY5180-A

Features:

The whole vehicle is designed according to the structure of a mini car. It has excellent performance, safety and reliability, and comfortable driving. It has an electronic power steering control system, front and rear hydraulic brakes, high-power motor drive, strong climbing and load-bearing capacity, low noise during vehicle operation, and no pollution. , clean and environmentally friendly, one-touch hydraulic self-loading mechanism, one-time operation is completed, avoiding secondary pollution during garbage transportation. It can travel 80 kilometers on a single charge, and the electricity bill is about 8 yuan. The electricity bill of similar fuel vehicles is about 70 yuan when it travels 80 kilometers. , compared with fuel vehicles, it can save 22,630 yuan + about 60,000 yuan per person per year (excluding insurance premiums + maintenance fees), reducing usage costs and being environmentally friendly.

working area:

Garbage collection, transfer and cleaning inspections in commercial streets, urban streets, communities, stations, schools, hospitals and other sections.

Dimensions (length*width*height) (mm) 4550×1520×1970
Rated number of passengers (people) 2
Wheelbase Front wheelbase (mm) 1210
Rear wheelbase (mm) 1210
Wheelbase (mm) 2320
Driving mileage (full load) (km) ≥80
Maximum driving speed (full load km/h) 25
Minimum turning radius (m) 6
Maximum gradient % 15
Number of trash cans (240L) 10
Minimum ground clearance (mm) 140
Minimum braking distance (m) (v=20km/h) ≤5
Curb weight (kg) 1240
Rated load (kg) 800
Electrical system Electronic control Intelligent controller
battery Maintenance-free dry battery 48V/200AH
Motor High torque power motor 48V/5500W
Charging time 6-8 hours (discharge rate 80%)
charger High frequency smart charger 48V/30A
Body configuration Chassis Adopting mini truck chassis and driving hydraulic brake
Frame Steel electrophoresis skeleton, load-bearing and corrosion-resistant
front windshield Double-layer laminated glass, double-arm wiper
Cab Integral fiberglass forming cab
seat Waterproof leather pattern molded foam seat
floor National standard anti-skid pattern plate
instrument panel Mini car type
rearview mirror Left and right exterior mirrors
lights and signals 12V lights, headlights, front and rear turn signals, driving lights, brake lights, electric horn and reversing buzzer
Hydraulic tailgate system Oil cylinder flap 2 pcs
lifting 2 pcs
Tail lift power 2Kw(S2)
system pressure 12MPa
maximum pressure 16MPa
Full load working time 6s
Carrying weight 300Kg
